CARBURETOR

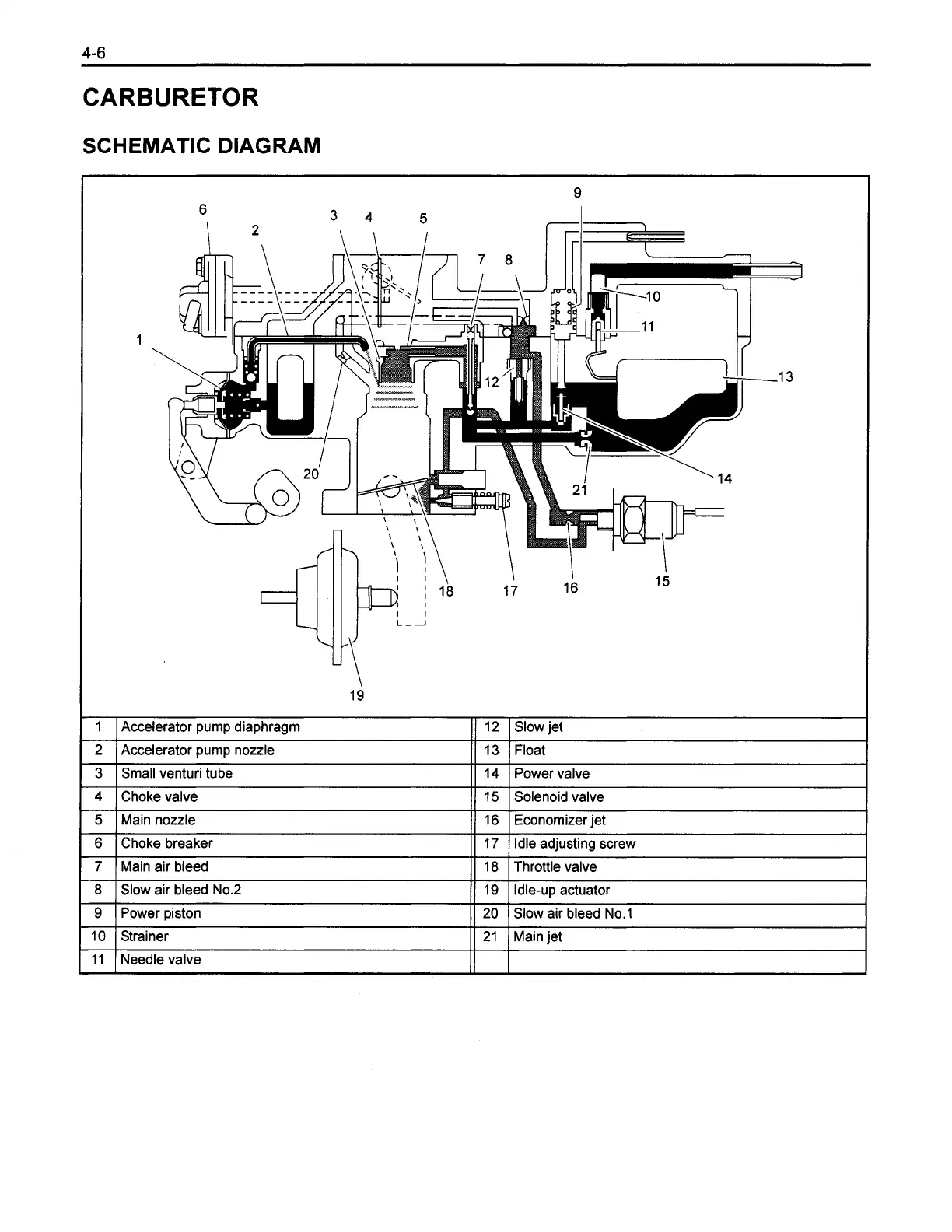

SCHEMATIC DIAGRAM
3
1
Small venturi tube
11
14
1
Power valve
1
2
Accelerator pump diaphragm
Accelerator pump nozzle
4
5
6
7
8
9
10
11
12
13
Choke valve
Main nozzle
Choke breaker
Main air bleed
Slow jet
Float
Slow air bleed No.2
Power piston
Strainer
Needle valve
15
16
17
18
Solenoid valve
Economizer jet
Idle adjusting screw
Throttle valve
19
20
21
Idle-up actuator
Slow air bleed No.1
Main jet
4Y-E Repair
