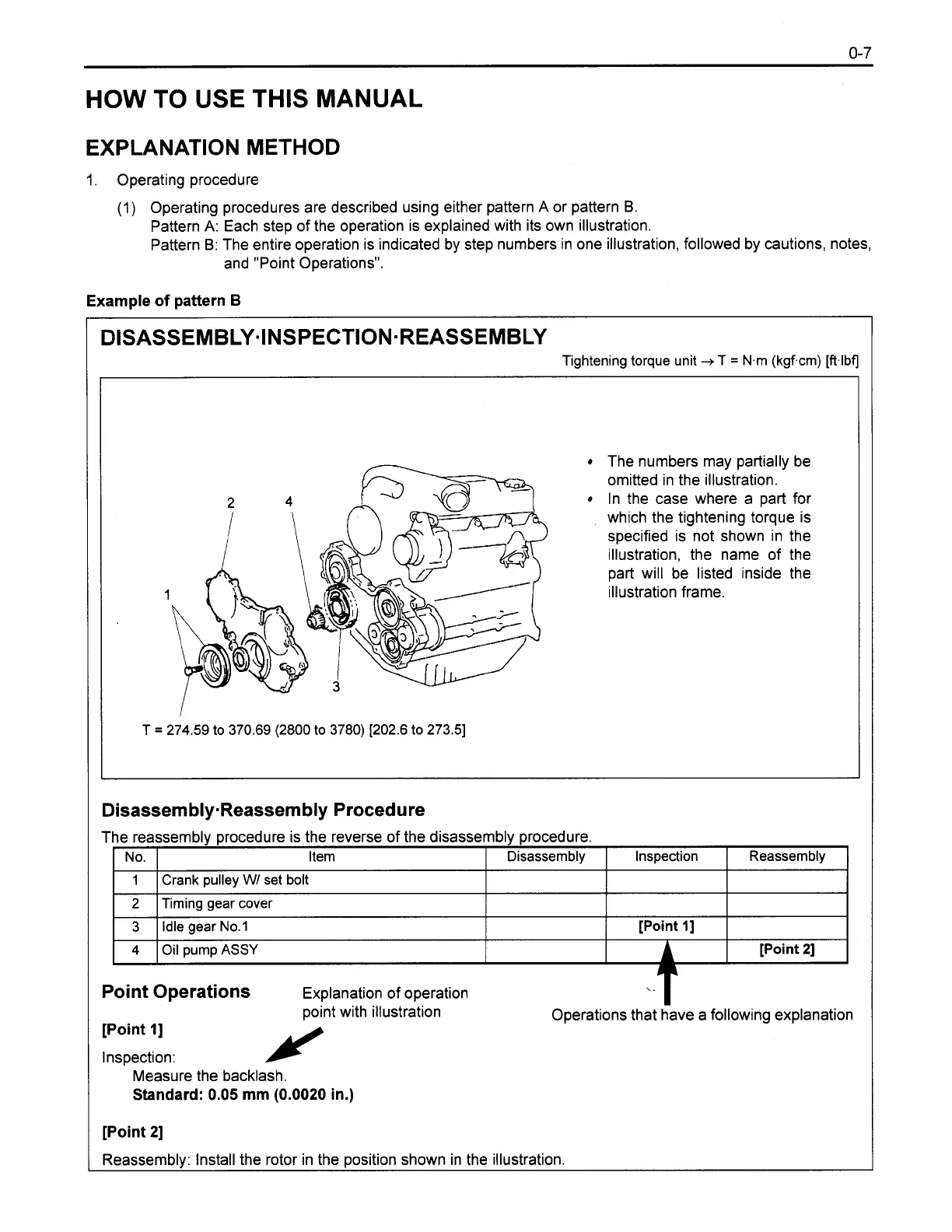

HOW TO USE THIS
MANUAL
EXPLANATION METHOD
1.
Operating procedure
(1)
Operating procedures are described using either pattern
A
or pattern
B.
Pattern
A:
Each step of the operation is explained with its own illustration.
Pattern
B:
The entire operation is indicated by step numbers in one illustration, followed by cautions, notes,
and "Point Operations".
Example of pattern
B
Tightening torque unit
-+
T
=
Nm (kgfcm) [ft.lbfl
The numbers may partially be
omitted in the illustration.
In the case where a part for
which the tightening torque is
specified is not shown in the
illustration, the name of the
part will be listed inside the
illustration frame.
Disassem blymReassem bly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
Point Operations
Explanation of operation
point with illustration
Operations that have a following explanation
[Point
11
Inspection:
Measure the backlash.
Standard:
0.05
mm
(0.0020
in.)
Reassembly
3
4
[Point
21
No.
1
2
[Point
I]
Idle gear No.1
Oil pump
ASSY
Reassemblv: Install the rotor in the ~osition shown in the illustration.
Disassembly Item
Crank pulley
WI
set bolt
Timing gear cover
[Point
21
Inspection
To Next Page
