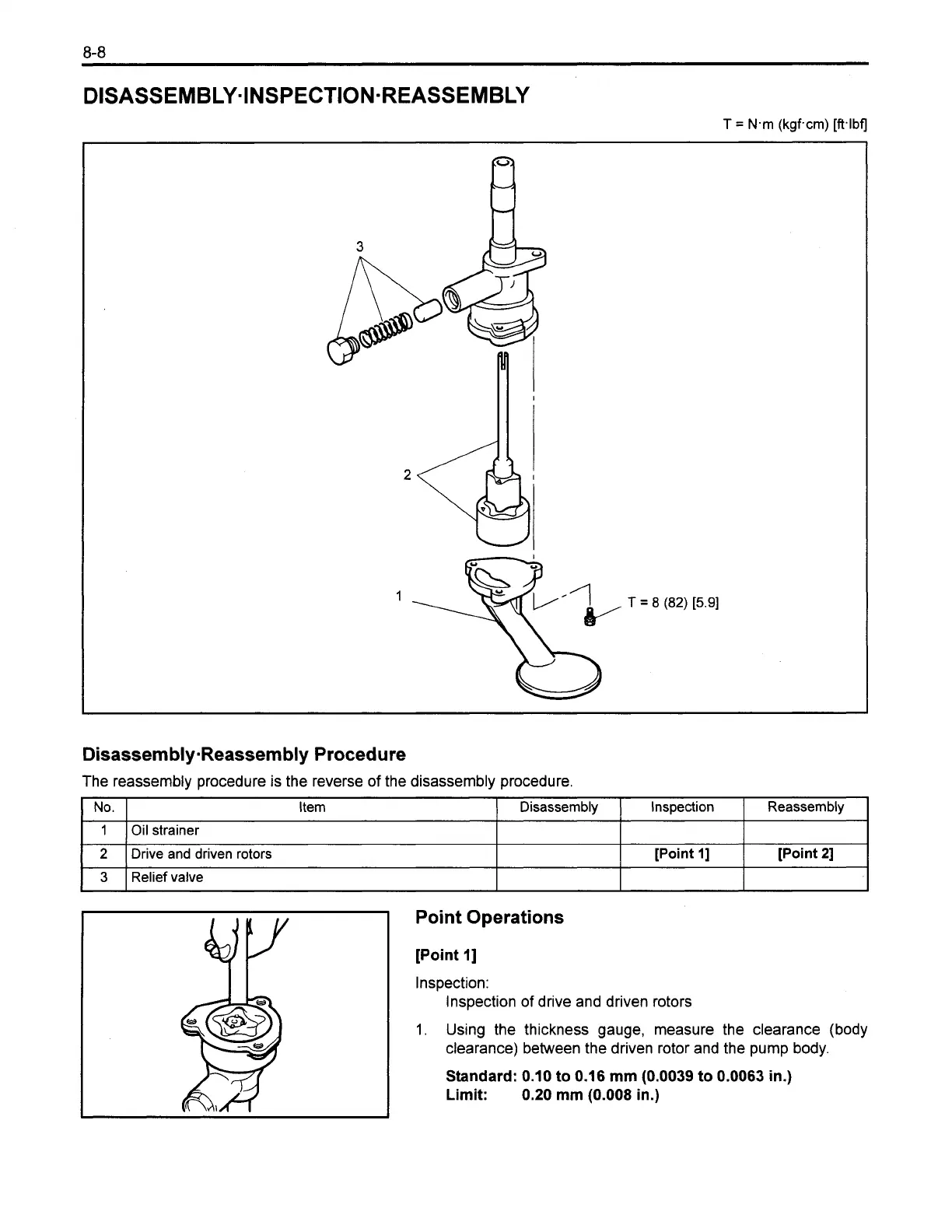

DISASSEMBLY-INSPECTION-REASSEMBLY
Disassembly .Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
I No. I Item ( Disassembly I Inspection I Reassembly 1
Point Operations
1
2
3
[Point I]
Inspection:
lnspection of drive and driven rotors
Oil strainer
Drive and driven rotors
Relief valve
1. Using the thickness gauge, measure the clearance (body
clearance) between the driven rotor and the pump body.
Standard: 0.10 to 0.16 mm (0.0039 to 0.0063 in.)
Limit: 0.20 mm (0.008 in.)
[Point I]
[Point 21
4Y-E Repair
Section 1.1.8

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
