Toyota 8FGU25 User Manual

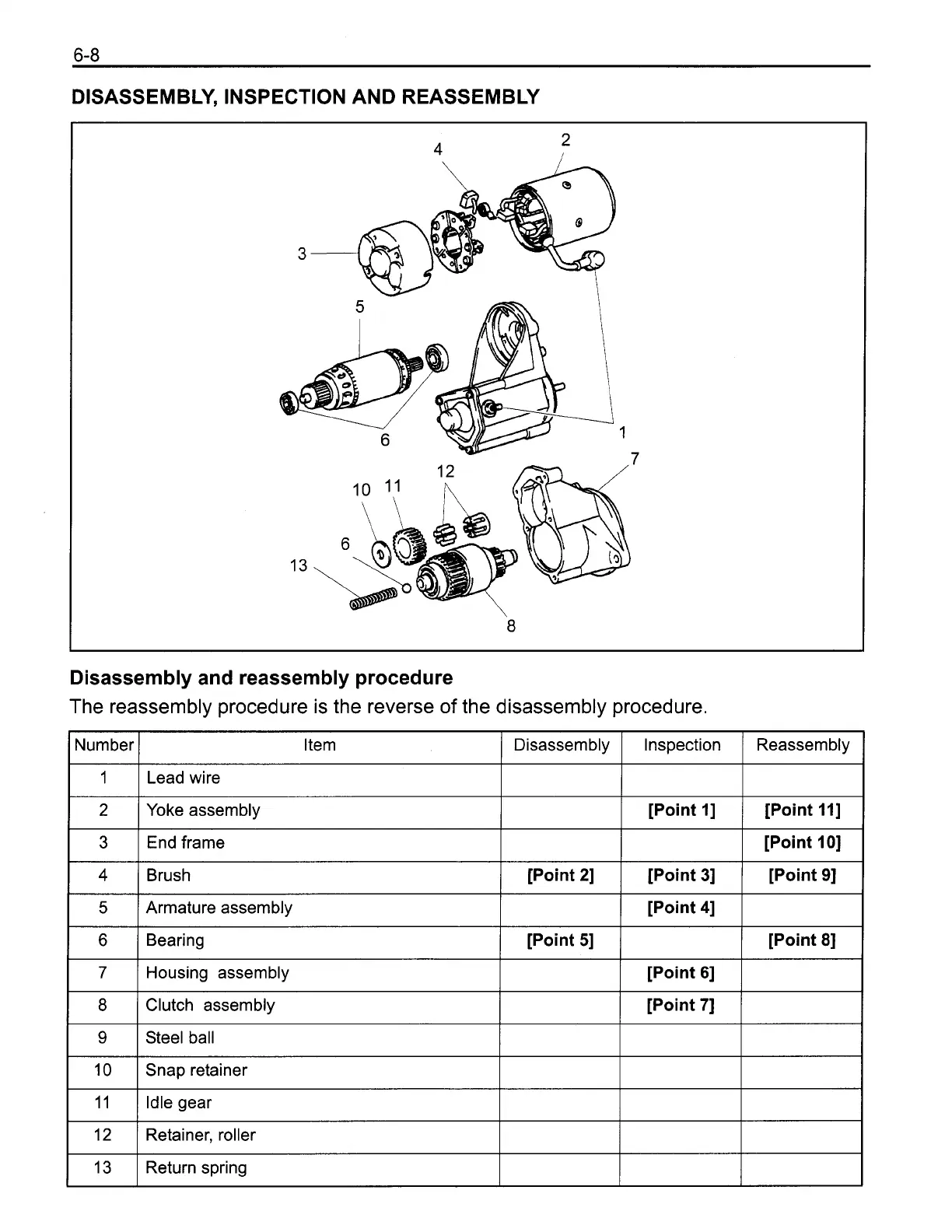

DISASSEMBLY, INSPECTION AND REASSEMBLY
Disassembly and reassembly procedure
The reassembly procedure is the reverse of the disassembly procedure.
Disassembly 1 Inspection I Reassembly
1 1 Lead wire
2 ( Yoke assembly 1 [Point I] / [Point 111
3 1 End frame
1 [Point 101
10
1 Snap retainer
4
5
6
7
8
9
Brush
Armature assembly
Bearing
Housing assembly
Clutch assembly
Steel ball
11
12
13
Idle gear
Retainer, roller
Return spring
[Point 21
[Point 51
[Point 31
[Point 41
[Point 61
[Point 71
[Point 91
[Point 81
1DZ-II Repair
Section 1.2.6

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
