Diagnostic connector

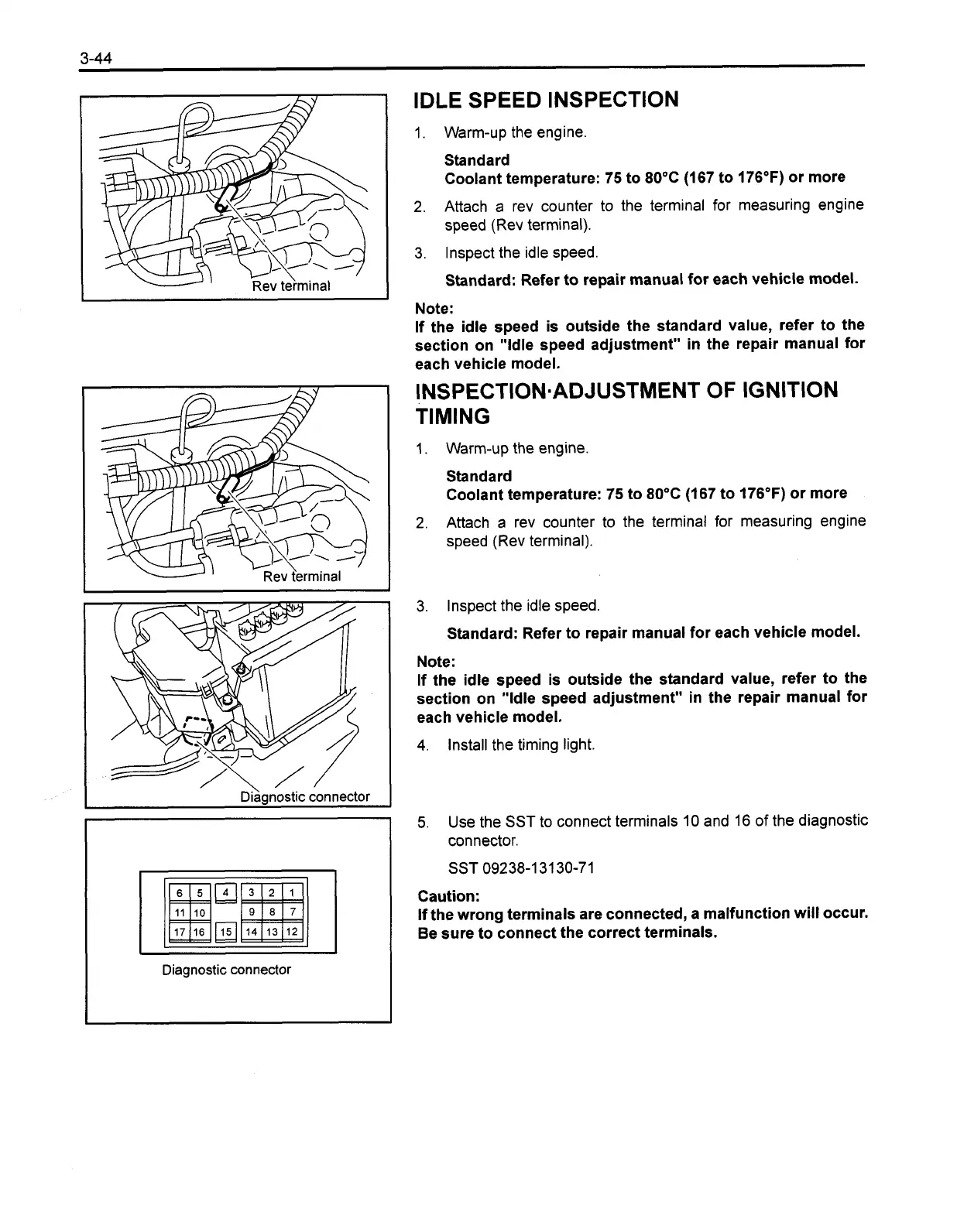

IDLE SPEED INSPECTION
1. Warm-up the engine.
Standard
Coolant temperature: 75 to 80°C (167 to 176°F) or more
2. Attach a rev counter to the terminal for measuring engine
speed (Rev terminal).
3. lnspect the idle speed.
Standard: Refer to repair manual for each vehicle model.
Note:
If the idle speed is outside the standard value, refer to the
section on "ldle speed adjustment" in the repair manual for
each vehicle model.
INSPECTIONlADJUSTMENT OF IGNITION
TIMING
1.
Warm-up the engine.
Standard
Coolant temperature: 75 to 80°C (167 to 176°F) or more
2.
Attach
a
rev counter to the terminal for measuring engine
speed (Rev terminal).
3. lnspect the idle speed.
Standard: Refer to repair manual for each vehicle model.
Note:
If the idle speed is outside the standard value, refer to the
section on "ldle speed adjustment" in the repair manual for
each vehicle model.
4.
Install the timing light.
5.
Use
the SST to connect terminals 10 and 16 of the diagnostic
connector.
SST 09238-1 31 30-71
Caution:
If the wrong terminals are connected, a malfunction will occur.
Be sure to connect the correct terminals.
