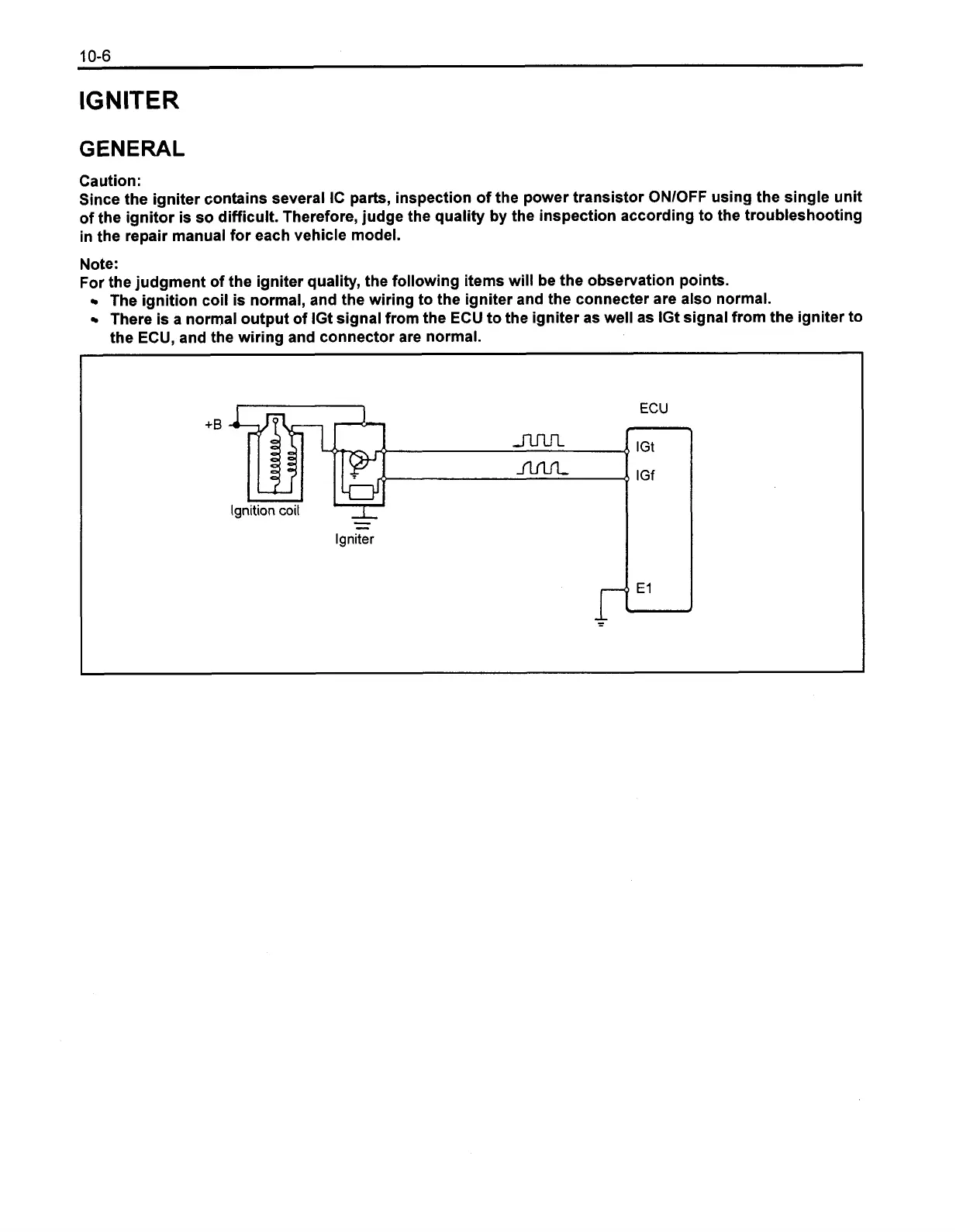

IGNITER
GENERAL
Caution:
Since the igniter contains several IC parts, inspection of the power transistor ONlOFF using the single unit
of the ignitor is so difficult. Therefore, judge the quality by the inspection according to the troubleshooting
in the repair manual for each vehicle model.
Note:
For the judgment of the igniter quality, the following items will be the observation points.
The ignition coil is normal, and the wiring to the igniter and the connecter are also normal.
There is a normal output of IGt signal from the ECU to the igniter as well as IGt signal from the igniter to
the ECU, and the wiring and connector are normal.
-
Igniter
ECU
4Y-E Repair
Section 1.1.10

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
