6. Hydraulic oil level inspection procedure

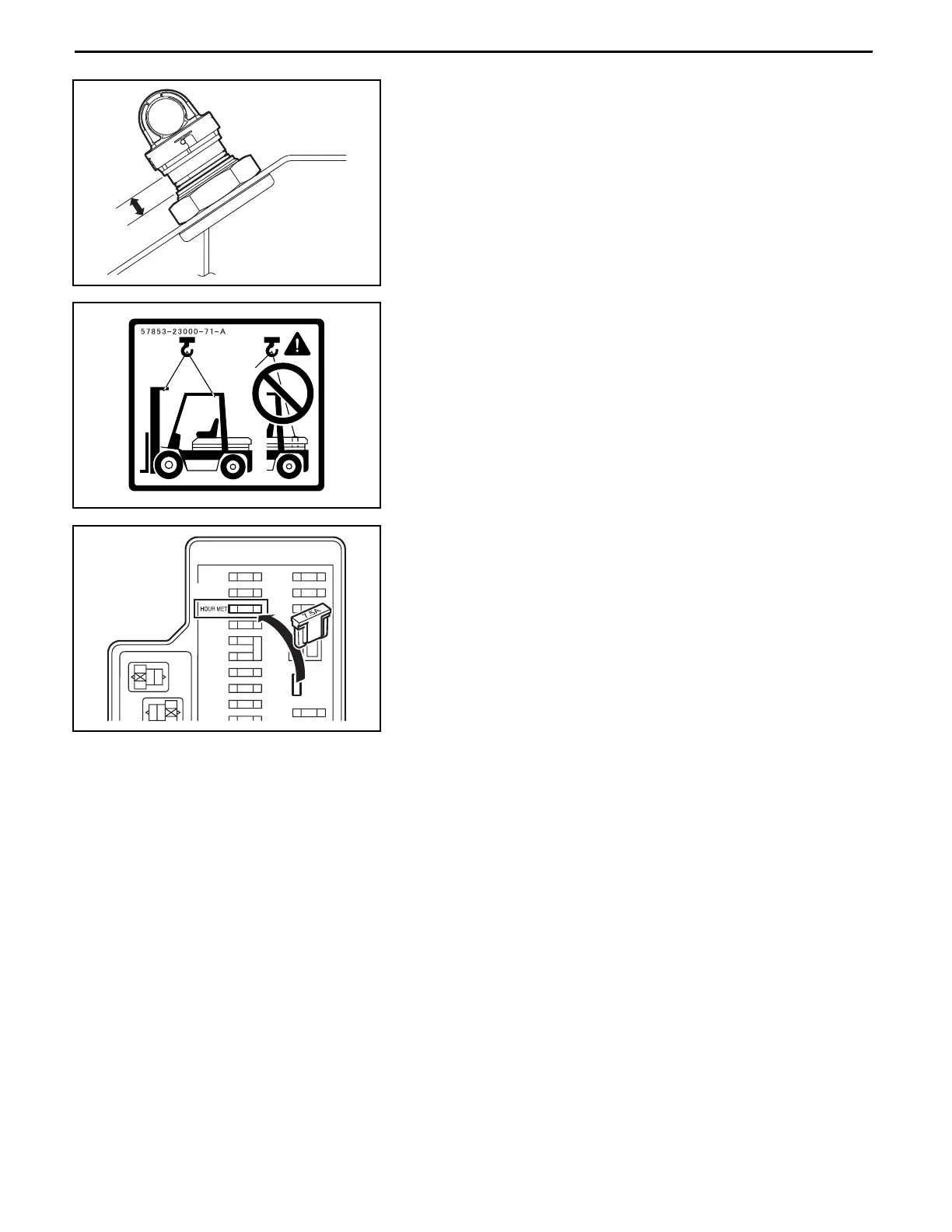

Checking the oil amount inside tank, as shown below, contact
top of cap on retainer. (Do not push it into retainer.)
HOISTING THE VEHICLE
When hoisting the vehicle, sling with wire rope(s) at the mast hook
holes and the rear side of the head guard.
Caution:
• Use wire ropes having sufficient strength.
• Never hoist the forklift by the weight hook holes.
HOW TO START THE HOUR METER
Be sure to start the hour meter when delivering a new vehicle to a
customer.
Remove the fuse (7.5 A) in position A inside the relay block and
install it to position B (HOUR MET).
Make sure that the engine is stopped when installing the fuse.
25ABLRSPARE
SPARE
ST
GAUGE
BACK LP
SFT
TURN
IGN
STA
RR WIP
FR WIP
1230A
7.5A
7.5A21
7.5A21
10A2
1
10A2
7.5A21
7.5A21
1
53
2
2
35
*221
30A12
20A12
20A
40A AM1
1
12
2
15AHORN 1 2
B
A
General
Section 0
*
0-8
*NOTE: Excludes 7FGCU15,18,SU20

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
