2-35

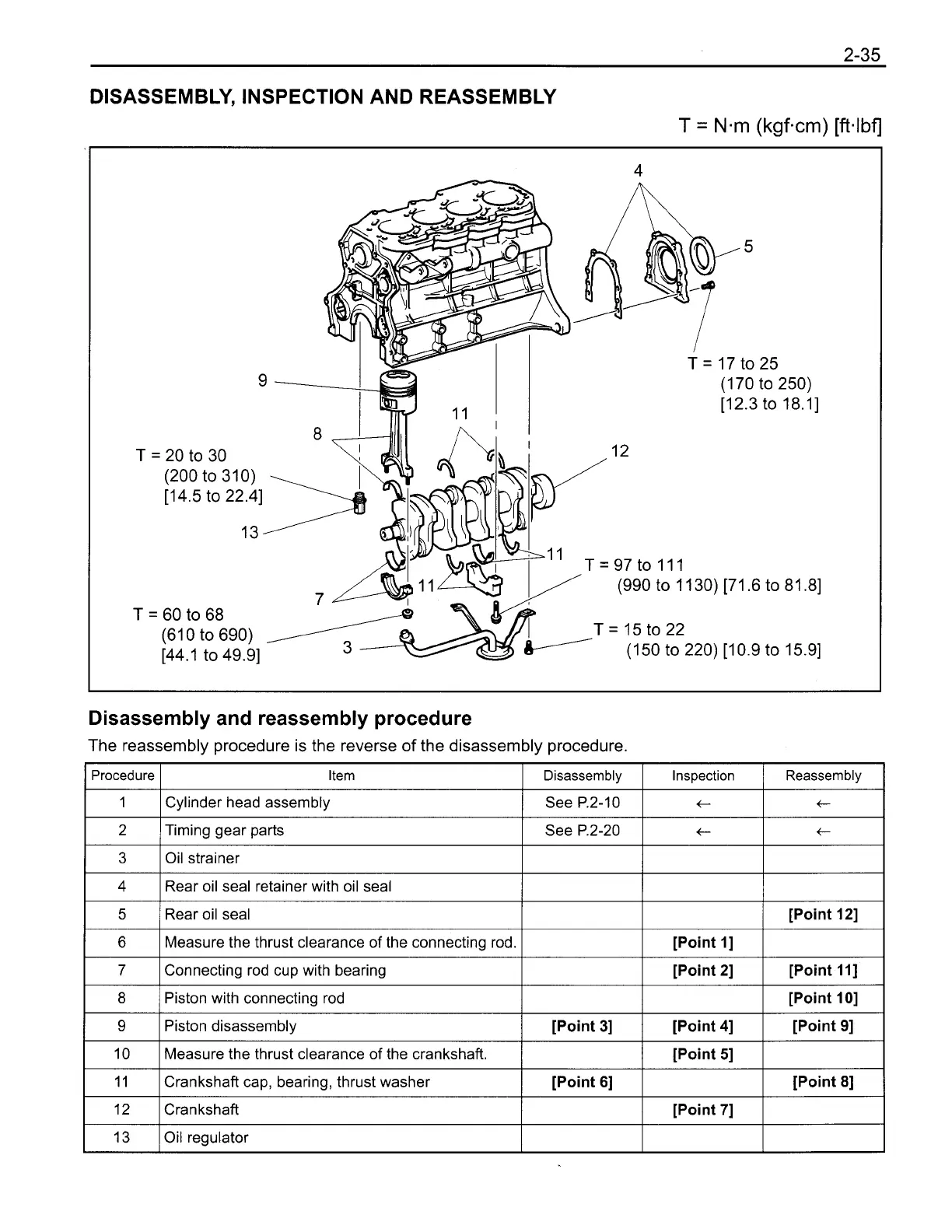

DISASSEMBLY, INSPECTION AND REASSEMBLY
Disassembly and reassembly procedure
The reassembly procedure is the reverse of the disassembly procedure.
Procedure
I Item I Disassembly I Inspection / Reassembly
1 I Cylinder head assembly I see p.2-10 I t I t
2 1 Timing gear parts I see p.2-20 I t I t
3 1 Oil strainer I I I
4 1 Rear oil seal retainer with oil seal I I I
5 / Rear oil seal I I / [point 121
6 1 Measure the thrust clearance of the connecting rod. 1
7 1 Connecting rod cup with bearing I I [Point 21 1 [Point 111
10 1 Measure the thrust clearance of the crankshaft. / ( [point 51 1
8
9
13 1 oil regulator I I I
Piston with connecting rod
Piston disassembly
11
12
[Point 31
Crankshaft cap, bearing, thrust washer
Crankshaft
[Point 41
[Point 61
[Point 101
[Point 91
[Point 71
[Point 81
1DZ-II Repair
Section 1.2.2

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
