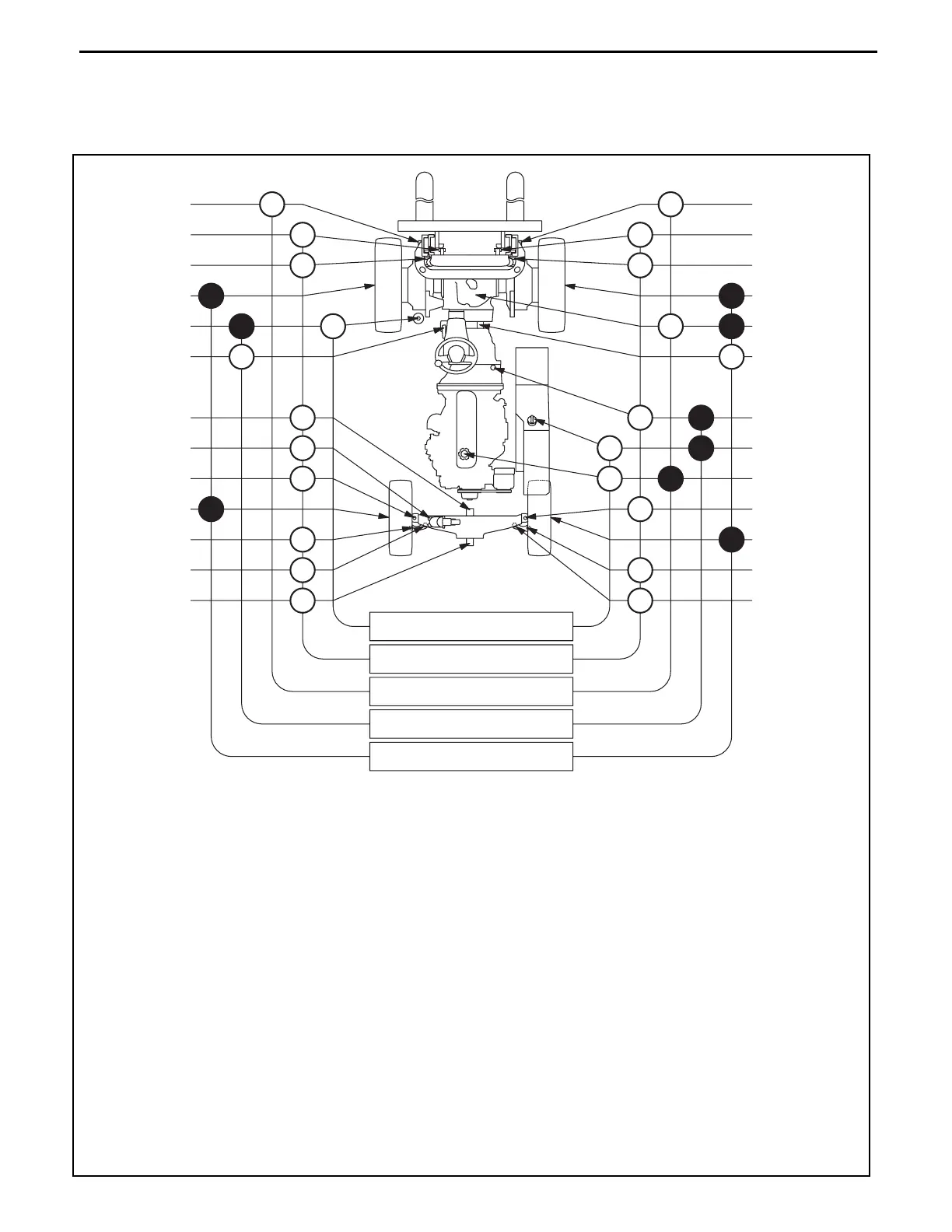

LUBRICATION CHART
Standard Model
(14)
GG
B
G
A
F F
A
G
G
A
A
A
A
G
B
G
A
CC
E
D
B*
E
D
B
A
A
A
A
A
(1)
(13)
(3)
(2)
(15)
(5)
(8)
(9)
(7)
(6)
(17)
(18)
(14)
(1)
(13)
(3)
(4)
(12)
(10)
(16)
(7)
(6)
(17)
(18)
(11)
I
II
III
IV
V
{ Inspection
z Replacement
AMP grease
B Engine oil
C Hypoid gear oil
D Hydraulic oil
E Automatic transmission fluid
F Brake fluid
G Molybdenum disulfide grease
1 Chain
2 Differential
3 Front wheel bearing
4 Brake master cylinder
5 Torque converter case
6 Rear wheel bearing
7 Steering knuckle king pin
8 Oil tank
9 Engine crank case
I Inspect every 8 hours (daily)
II Inspect every 40 hours (weekly)
III Inspect every 250 hours (6 weeks)
IV Inspect every 1000 hours (6 monthly)
V Inspect every 2000 hours (annual)
10 Rear axle beam front pin
11 Rear axle beam rear pin
12 Tilt steering locking mechanism
13 Mast support bushing
14 Tilt cylinder front pin
15 Propeller shaft
16 Swing lock cylinder lower pin
17 Tie rod end pin
18 Rear axle cylinder end pin
*: For the engine oil grades listed below, change oil every 500 hours.
Gasoline vehicle: API SL, SM and above
Diesel vehicle: API CF-4 and above
