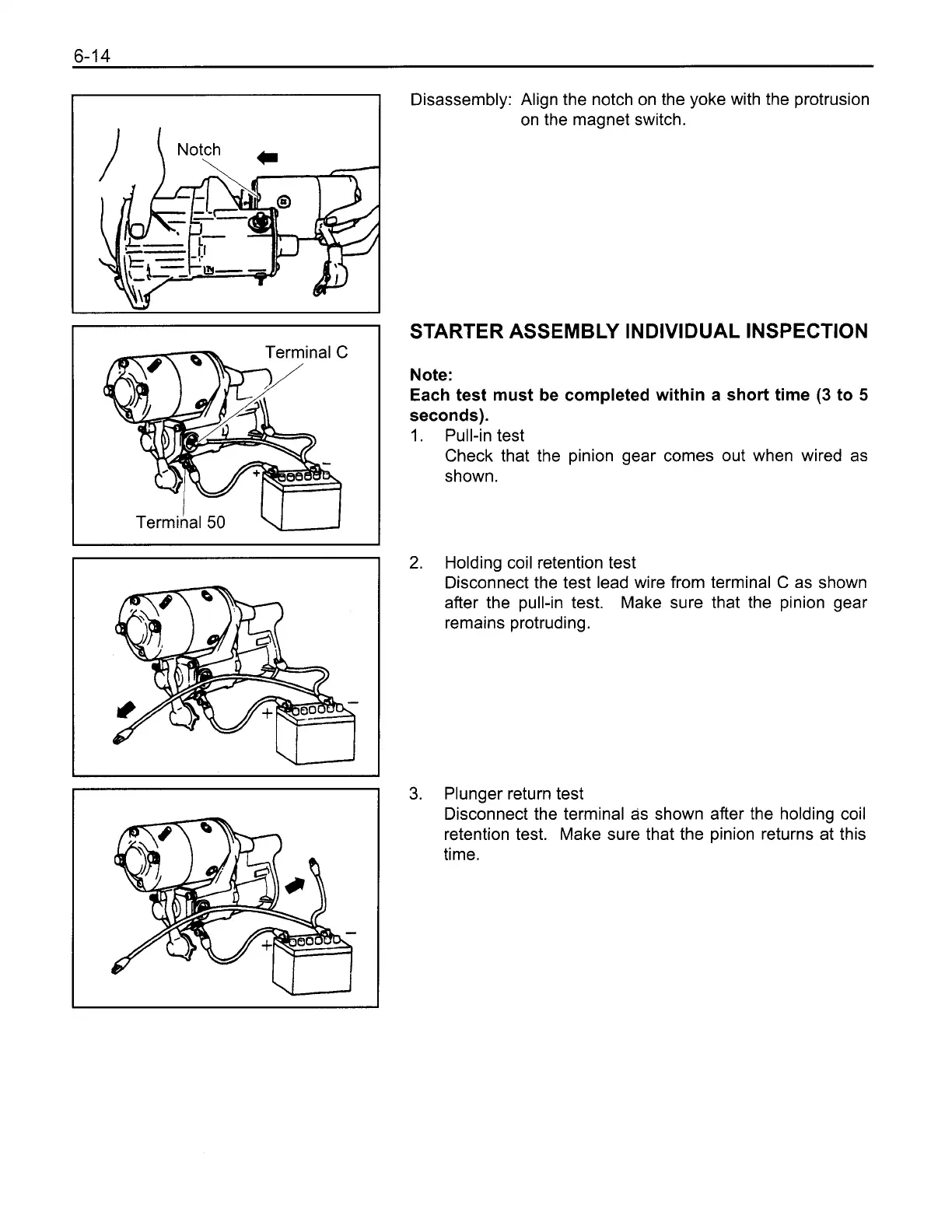

Disassembly: Align the notch on the yoke with the protrusion
on the magnet switch.
STARTER ASSEMBLY INDIVIDUAL INSPECTION
Note:
Each test must be completed within a short time
(3 to 5
seconds).
1. Pull-in test
Check that the pinion gear comes out when wired as
shown.
2. Holding coil retention test
Disconnect the test lead wire from terminal C as shown
after the pull-in test. Make sure that the pinion gear
remains protruding.
3. Plunger return test
Disconnect the terminal as shown after the holding coil
retention test. Make sure that the pinion returns at this
time.
1DZ-II Repair
Section 1.2.6

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
