3-9

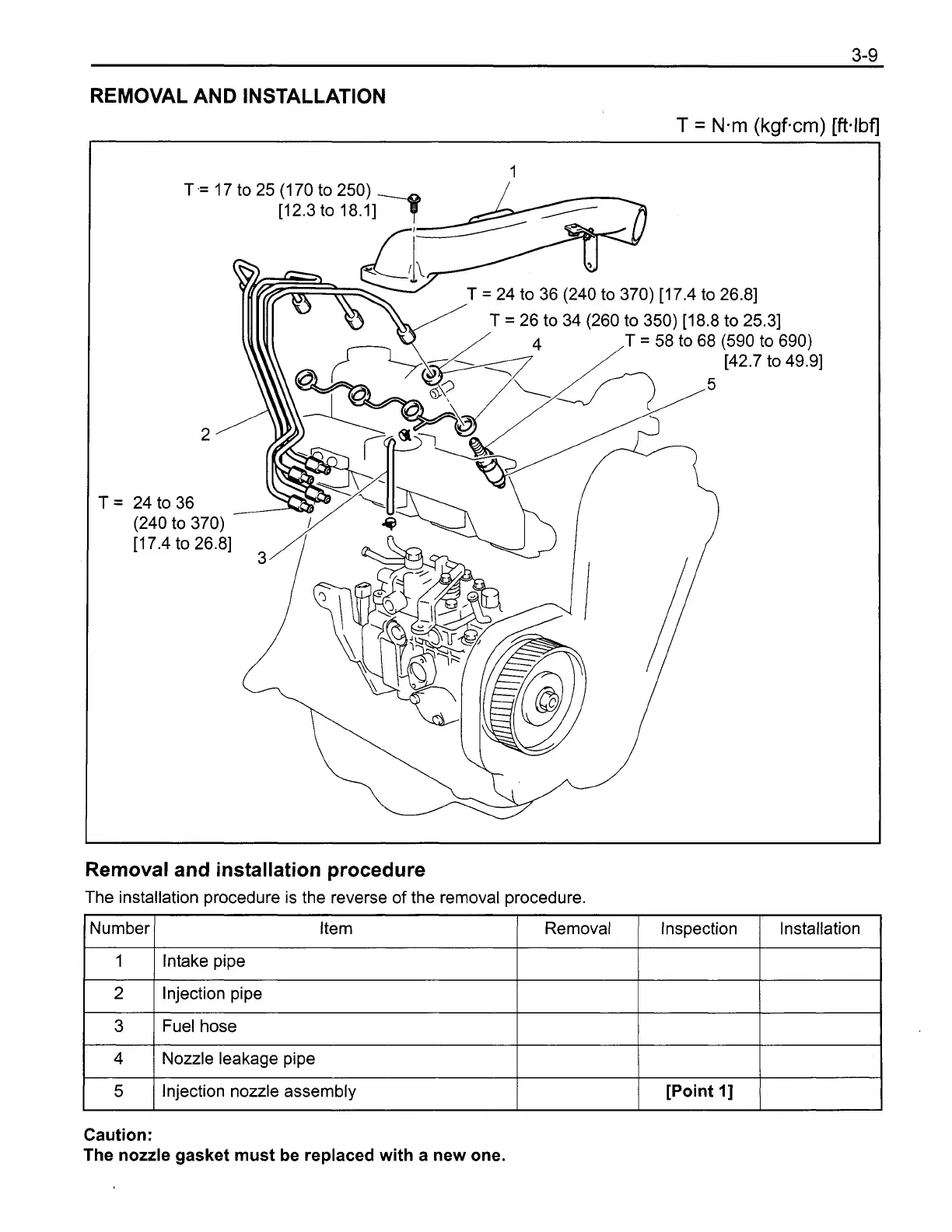

REMOVAL AND INSTALLATION
Removal and installation procedure
The installation procedure is the reverse of the removal procedure.
Number
1
2
5
/ lnjection nozzle assembly
I
Item
Intake pipe
Injection pipe
3
4
I [Point I] /
Fuel hose
Nozzle leakage pipe
Caution:
The nozzle gasket must be replaced with a new one.
Removal Inspection Installation
1DZ-II Repair
Section 1.2.3

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
