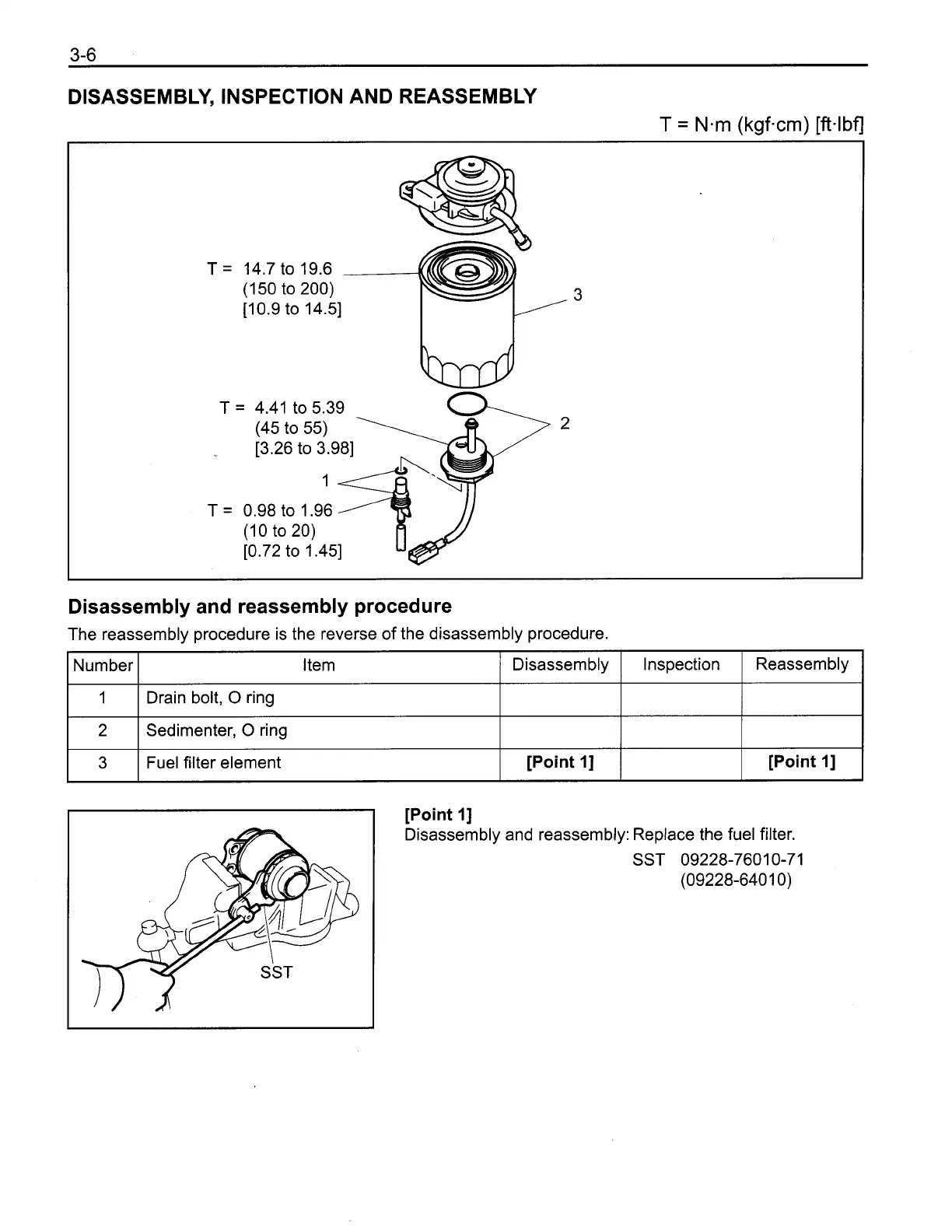

3-6
DISASSEMBLY, INSPECTION AND REASSEMBLY
Disassembly and reassembly procedure
The reassembly procedure is the reverse of the disassembly procedure.
-1 bolt, 0 ring
1 2 1 Sedimenter, 0 ring
Inspection Disassembly
Number
[Point I]
Disassembly and reassembly: Replace the fuel filter.
SST
09228-7601 0-71
(09228-640 1 0)
Reassembly
Item
3 Fuel filter element
[Point I]
[Point I]
1DZ-II Repair
Section 1.2.3

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
