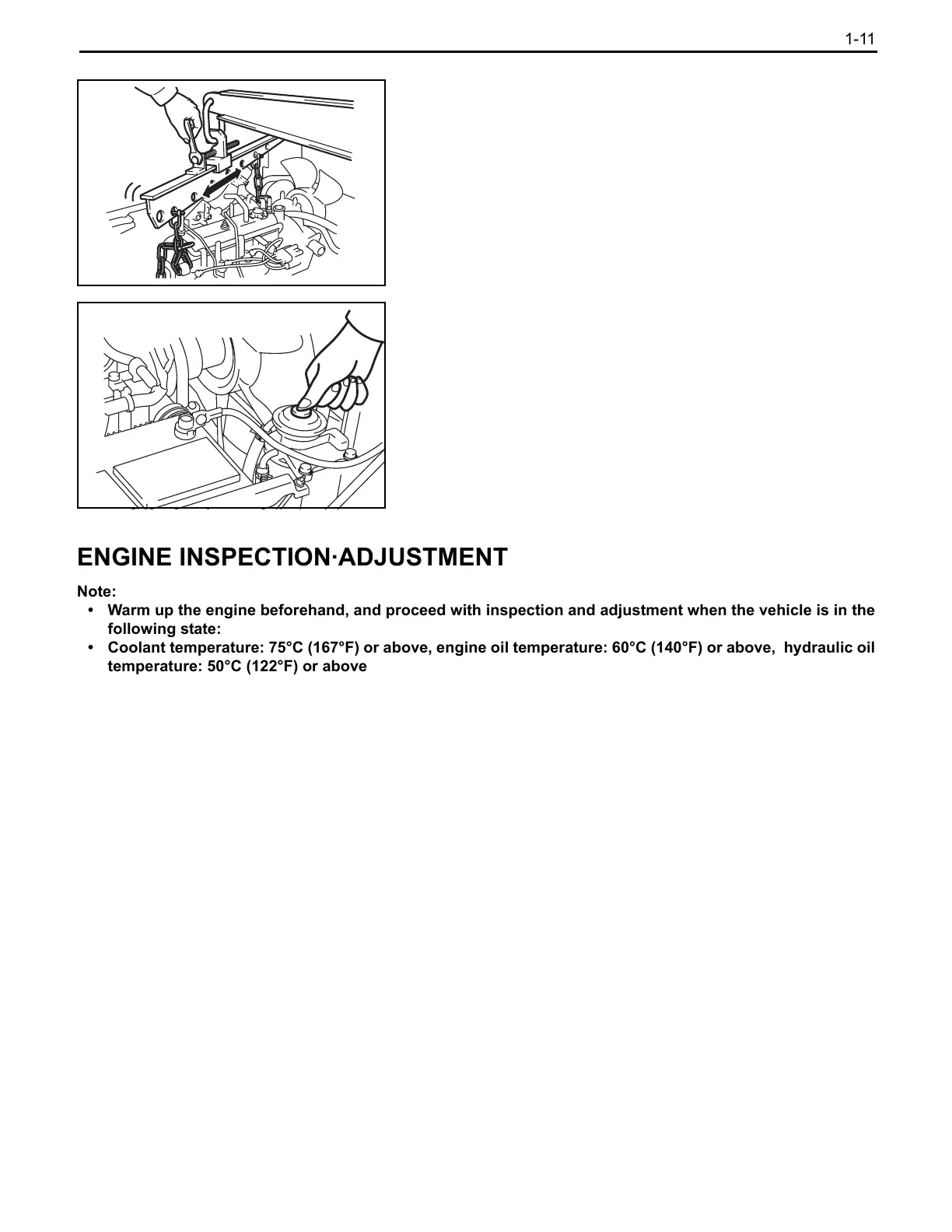

1-11
[Point 5]
Removal:
Use a flat-head screwdriver for separation.
If the fitting is too tight, change the SST hook position and
adjust the engine angle for easier separation.
AIR BLEEDING OF THE FUEL SYSTEM
1DZ-II Engine Vehicles Only
1. Perform air bleeding by moving the priming pump knob up and
down.
2. Once the pump operation becomes heavy, air bleeding is
completed.
ENGINE INSPECTION·ADJUSTMENT
Note:
• Warm up the engine beforehand, and proceed with inspection and adjustment when the vehicle is in the
following state:
• Coolant temperature: 75°C (167°F) or above, engine oil temperature: 60°C (140°F) or above, hydraulic oil
temperature: 50°C (122°F) or above
Engine
Section 1
1-11a
8FG(D)U15-32
8FGCU20-32

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
