Toyota 8FGU25 User Manual

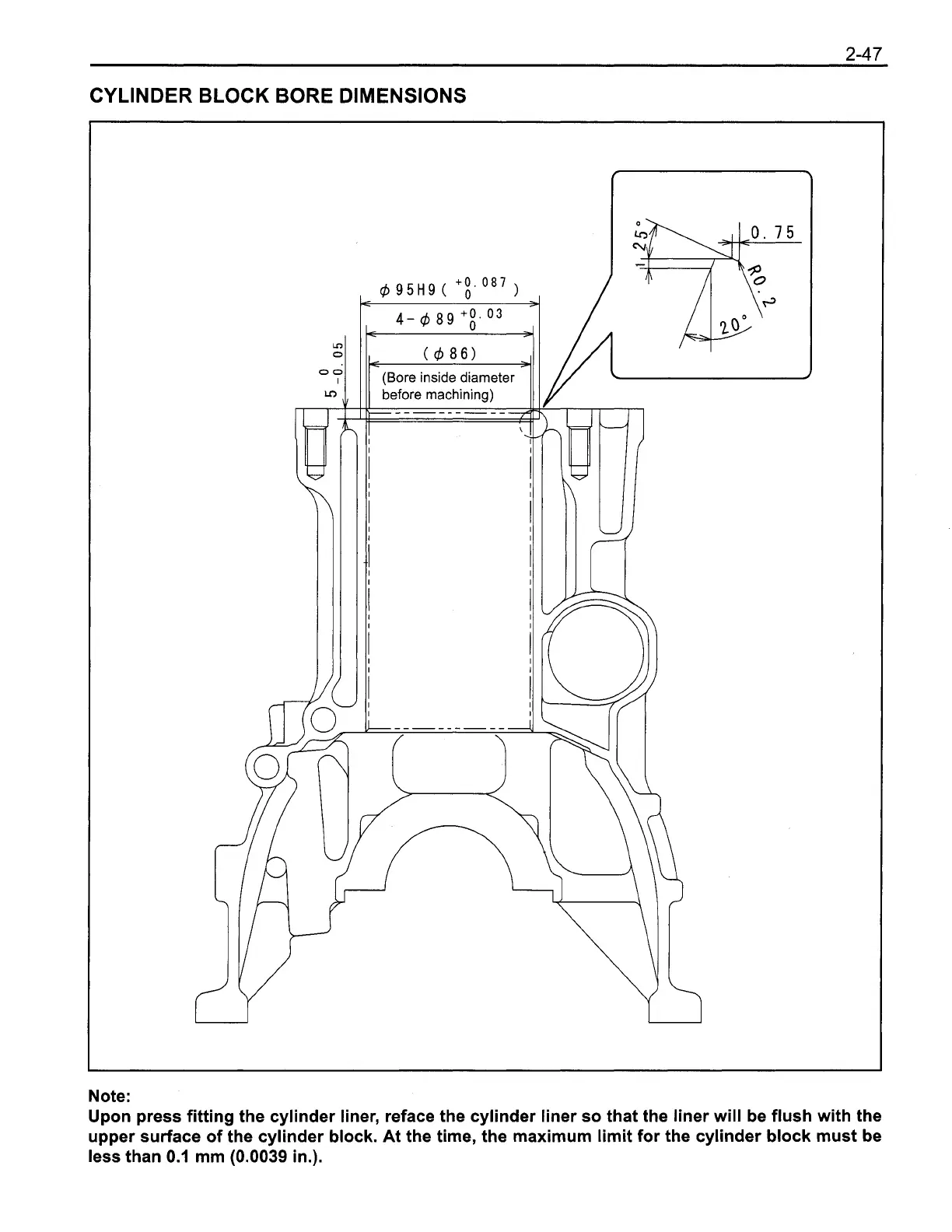

CYLINDER BLOCK BORE DIMENSIONS
(@ 86)
(Bore inside diameter
Note:
Upon press fitting the cylinder liner, reface the cylinder liner so that the liner will be flush with the
upper surface of the cylinder block. At the time, the maximum limit for the cylinder block must be
less than
0.1 mm (0.0039 in.).
1DZ-II Repair
Section 1.2.2

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
