Toyota 8FGU25 User Manual

I
Delivery pipe

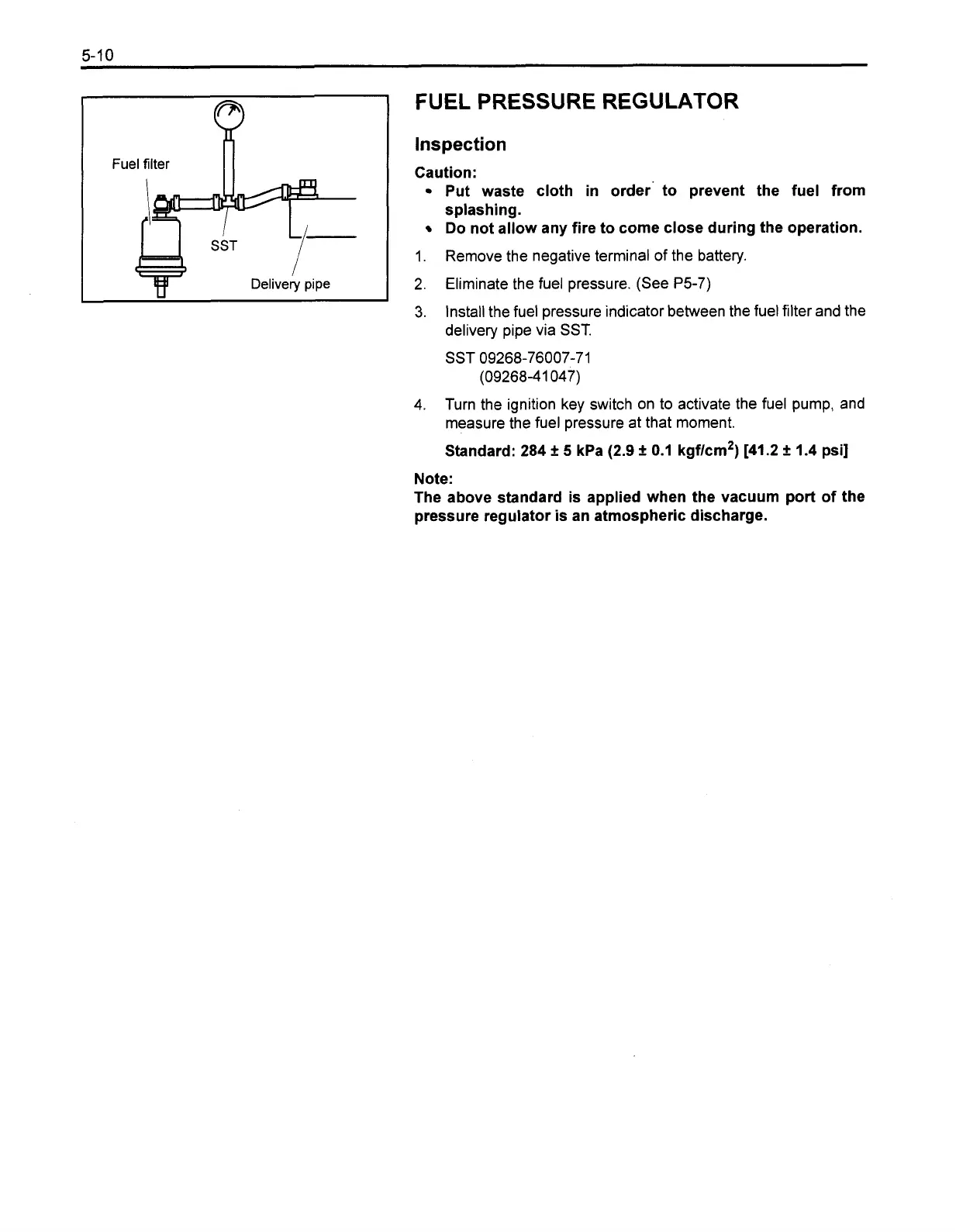

FUEL PRESSURE REGULATOR
Inspection
Caution:
Put waste cloth in order' to prevent the fuel from
splashing.
Do not allow any fire to come close during the operation.
1.
Remove the negative terminal of the battery.
2.
Eliminate the fuel pressure. (See P5-7)
3.
Install the fuel pressure indicator between the fuel filter and the
delivery pipe via
SST.
SST 09268-76007-71
(09268-4 1 047)
4.
Turn the ignition key switch on to activate the fuel pump, and
measure the fuel pressure at that moment.
Standard: 284 5 kPa (2.9 f 0.1 kgflcm2) [41.2 & 1.4 psi]
Note:
The above standard is applied when the vacuum port of the
pressure regulator is an atmospheric discharge.
4Y-E Repair
Section 1.1.5

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
