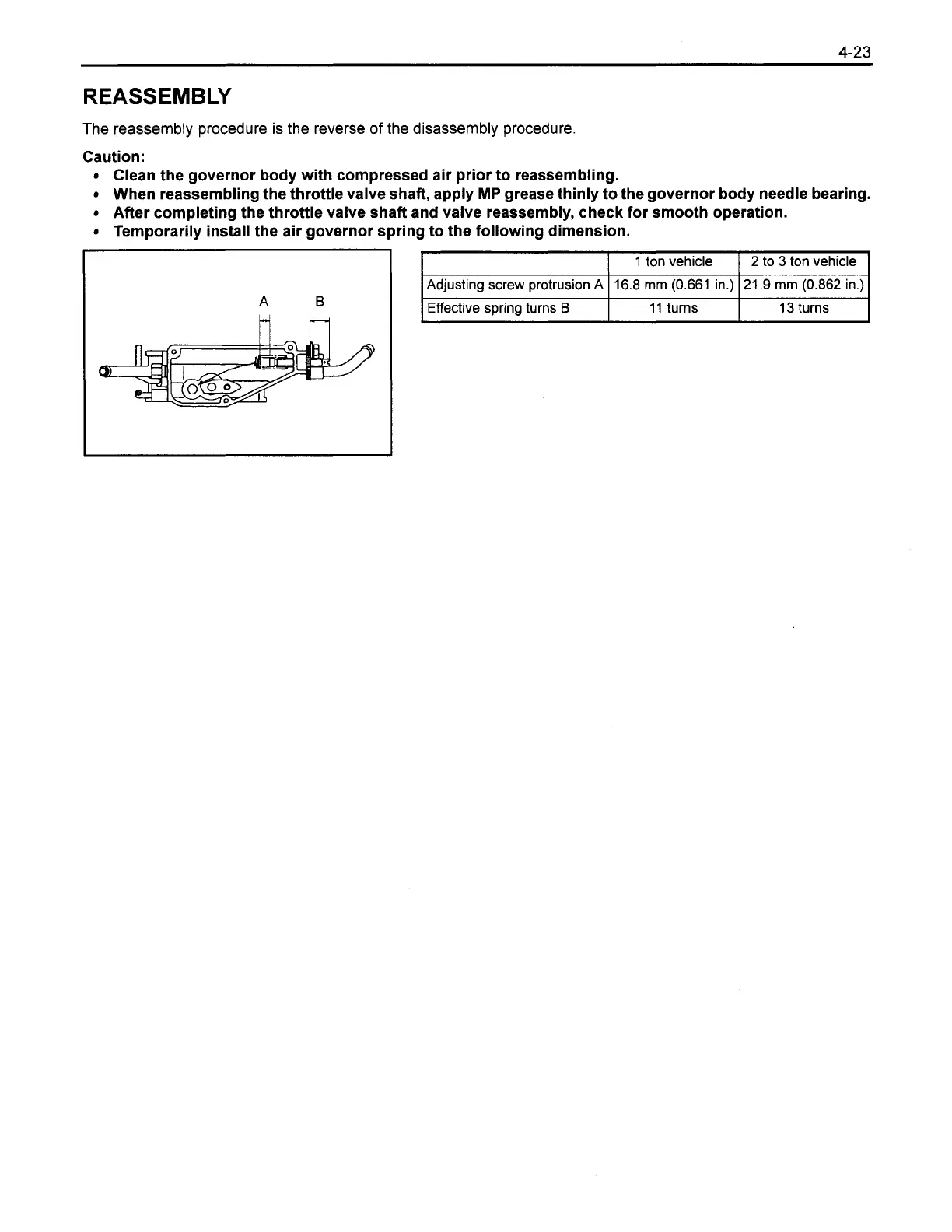

REASSEMBLY
The reassembly procedure is the reverse of the disassembly procedure
Caution:
Clean the governor body with compressed air prior to reassembling.
When reassembling the throttle valve shaft, apply MP grease thinly to the governor body needle bearing.
After completing the throttle valve shaft and valve reassembly, check for smooth operation.
Temporarily install the air governor spring to the following dimension.
I Effective spring turns B I 11 turns 1 13 turns I
Adjusting screw protrusion A
1 ton vehicle
16.8
mm (0.661 in.)
2 to 3 ton vehicle
21.9 mm (0.862 in.)
4Y-E Repair
Section 1.1.4

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
