I

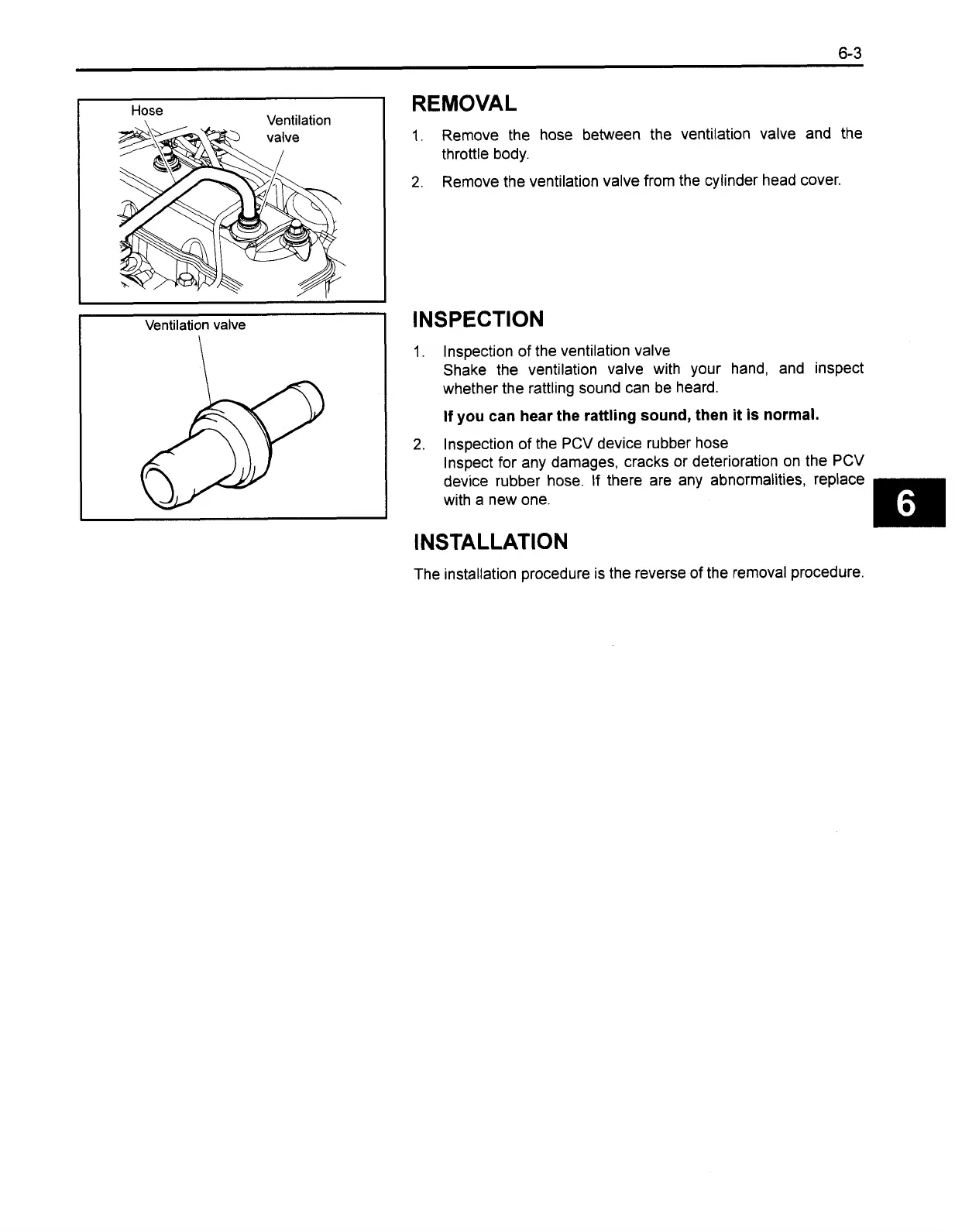

Hose
\ Ventilation
I Ventilation valve
REMOVAL
1. Remove the hose between the ventilation valve and the
throttle body.
2.
Remove the ventilation valve from the cylinder head cover.
INSPECTION
1.
lnspection of the ventilation valve
Shake the ventilation valve with your hand, and inspect
whether the rattling sound can be heard.
If you can hear the rattling sound, then it is normal.
2. lnspection of the PCV device rubber hose
Inspect for any damages, cracks or deterioration on the PCV
device rubber hose.
lf there are any abnormalities, replace
with a new one.
INSTALLATION
The installation procedure is the reverse of the removal procedure.
4Y-E Repair
Section 1.1.6

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
