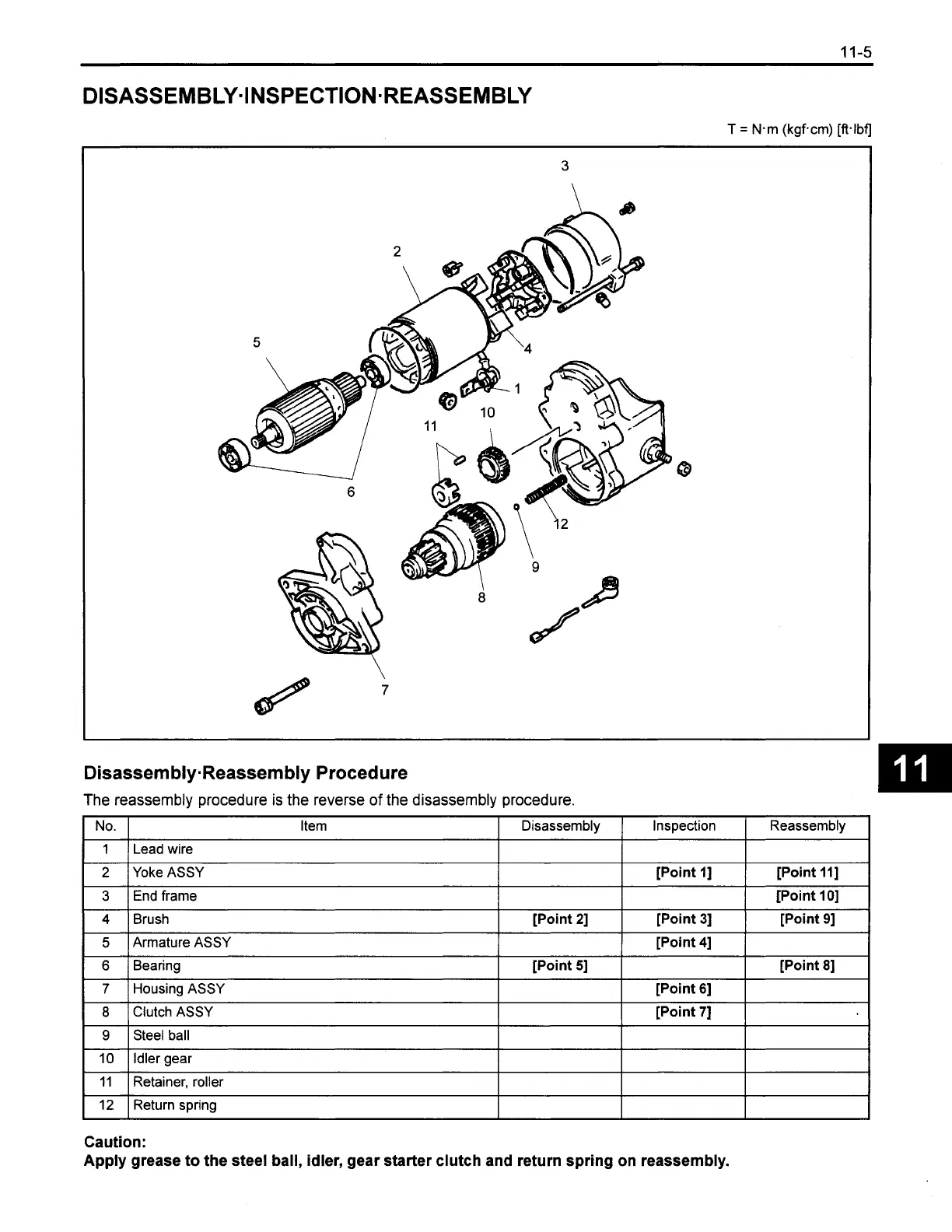

DISASSEMBLY-INSPECTION-REASSEMBLY
T = N.m (kgf cm) [ft.lbfl
Disassem bly-Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
1 2 /Yoke ASSY I I [Point I] I [Point 111
No.
1
Item
Lead wire
3
4
5
6
7
8
I 11 I Retainer, roller I I I
Disassembly
End frame
Brush
Armature ASSY
Bearing
9
10
1 12 1 Return spring I I I
Housing ASSY
Clutch ASSY
Steel ball
Idler gear
Caution:
Apply grease to the steel ball, idler, gear starter clutch and return spring on reassembly.
Inspection
[Point 21
[Point 51
[Point 61
[Point 71
Reassembly
[Point 31
[Point 41
[Point 101
[Point 91
[Point 81
4Y-E Repair
Section 1.1.11

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
