1-19
SPECIFICATIONS
COOLANT CAPACITY AND ANTIFREEZE TABLE
Unit: l (US gal)
Note:
• The total coolant capacity does not include the capacity of the reservoir tank.
• Reservoir tank capacity: 0.47 l
(0.124 US gal) (at FULL mark position)

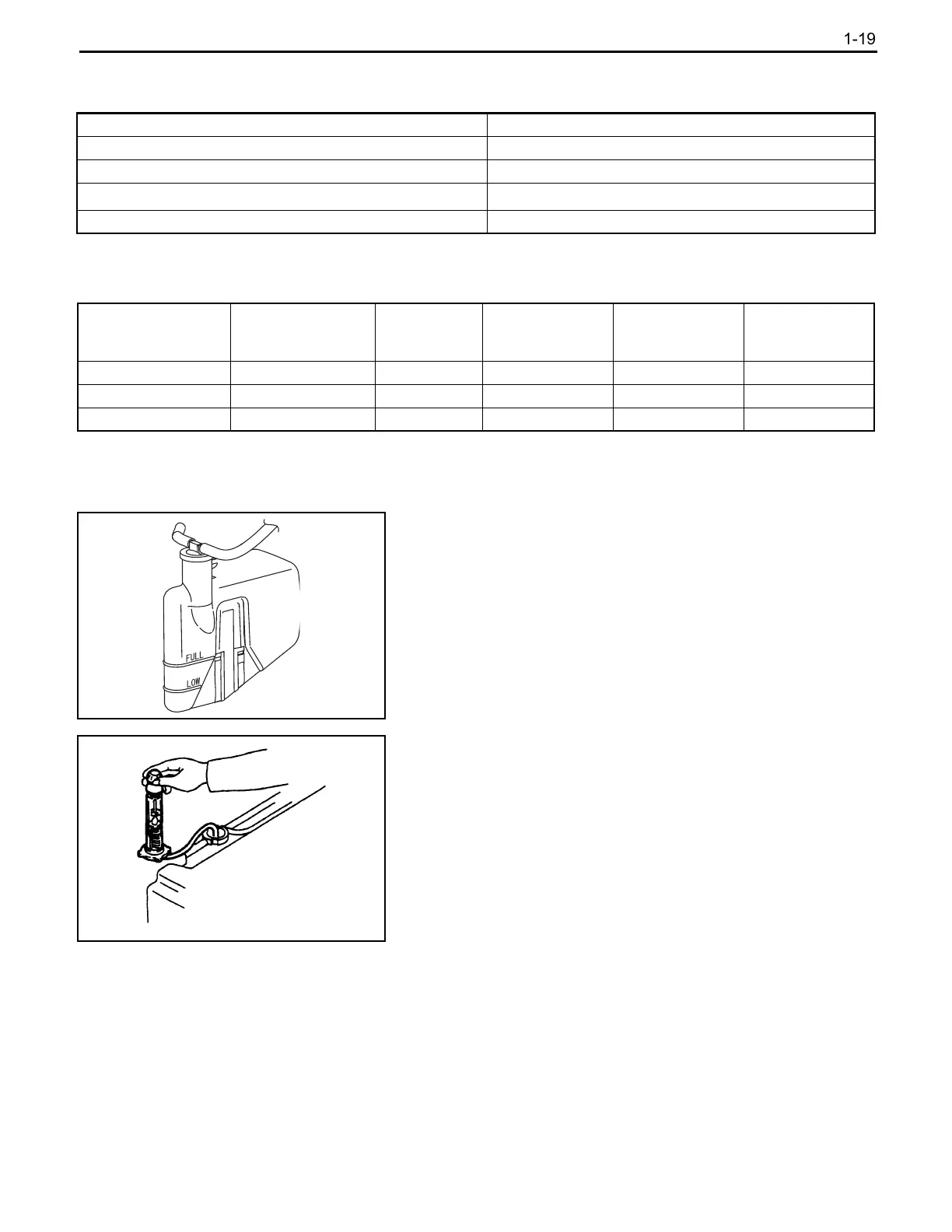

COOLANT INSPECTION
1. Inspect the coolant level.
Check that the coolant level is between FULL and LOW in the
radiator reservoir tank.
2. Measure the coolant concentration. (LLC)
(1) Measure the temperature and specific gravity of the
coolant.
Note:
The coolant concentration must be 30% (STD: 50%) or above.
Type Crossflow
Fin type Corrugated fin
Coolant capacity (in radiator) See the table below
Cap opening pressure
kPa (kgf/cm
2
) [psi]
88 ± 14.7 (0.9 ± 0.15) [13 ± 2.1]
Others Built in torque converter cooler (torque converter vehicle)
Radiator capacity
Total coolant
capacity
30% Antifreeze
mixture
(down to -15°C)
50% Antifreeze
mixture
(down to -35°C)
Antirust mixture
5%
Pn1, Cu2·3 ton series 2.7 (0.71)
Pn2 ton series 3.7 (0.98)
Pn3 ton series 3.7 (0.98)
