TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
92

Note:
If you are not familiar with the setting items in this page, it's strongly recommended to keep the
provided default values; otherwise it may result in lower wireless network performance.
5.7.5 Antenna Alignment
Selecting Wireless > Antenna Alignment will allow you to view how remote AP’s signal strength
changes while changing the antenna’s direction.

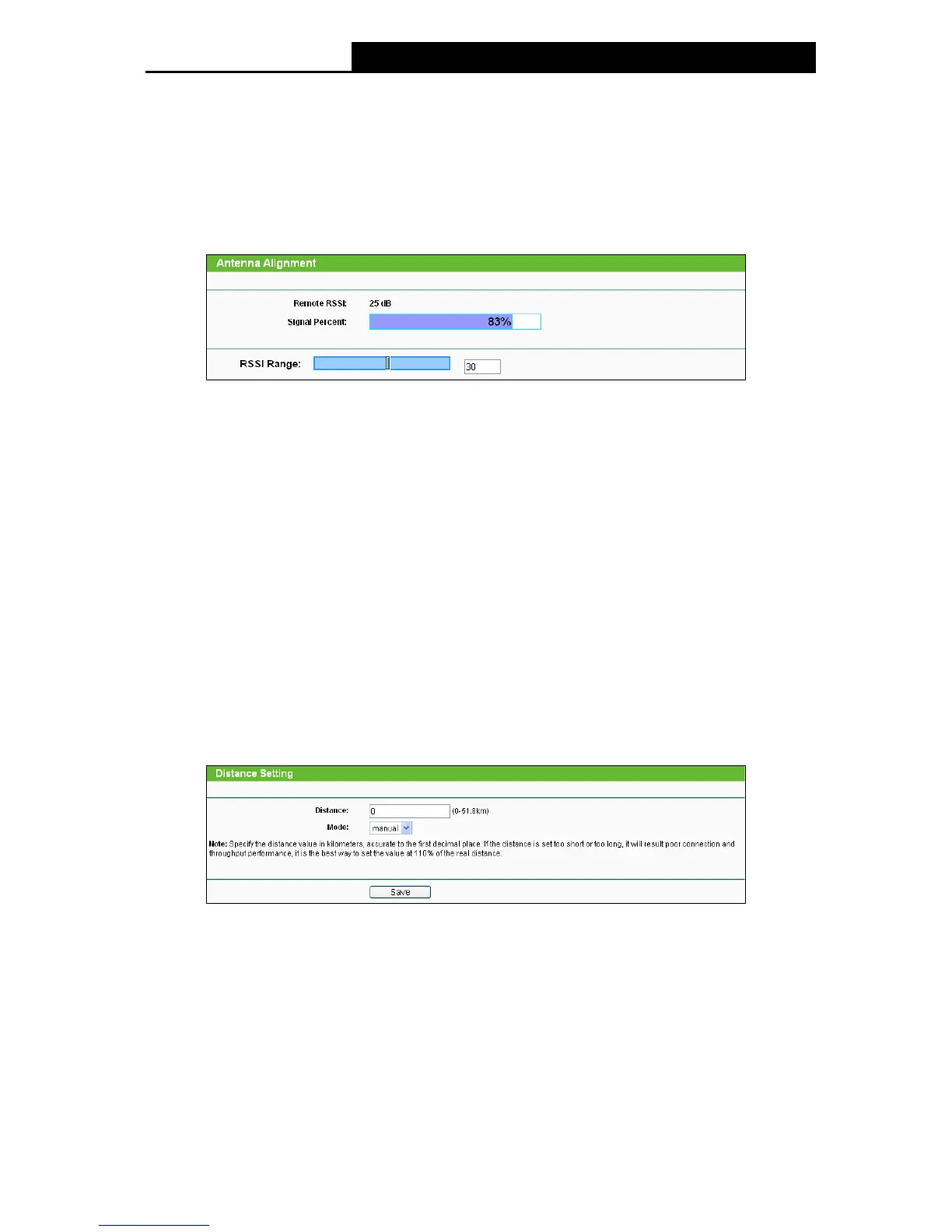

Figure 5-24 Antenna Alignment
 Remote RSSI - Remote AP's signal strength value.
 Signal Percent - The ratio of RSSI to RSSI RANGE in percentage.
 RSSI Range - You can drag the slider bar to set or input the RSSI RANGE value. The slider
bar allows the range of the meter to be either increased or reduced. If the range is reduced,
the color change will be more sensitive to signal fluctuations. The slider bar actually changes
an offset of the maximum indicator value scale.

Note:
It only works after you have established connection to remote AP under client mode.
5.7.6 Distance Setting
Selecting Wireless > Distance Setting will allow you to adjust the wireless range in outdoor
conditions as shown in Figure 5-25. This is a critical feature required for stabilizing outdoor links.
Enter the distance of your wireless link and the software will optimize the frame ACK timeout
value automatically.
Figure 5-25 Distance Setting
 Distance - Specify the distance value in kilometers, accurate to the first decimal place. If the
distance is set too short or too long, it will result poor connection and throughput performance,
it is best to set the value at 110% of the real distance. If the AP is being used in an indoor
setting, please use the indoor option.

Note:
One hundred-meter is the smallest unit of this setting.
 Mode - You can select manual or indoor for the mode.
Click Save to keep your settings.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
