TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
46
 Channel - This field determines which operating frequency will be used. It is not necessary to
change the wireless channel unless you notice interference problems with another nearby
access point.
 Mode - This field determines the wireless mode which the AP works on. The options includes:
11b only, 11g only, 11n only, 11bg mixed, 11bgn mixed.
 Channel Width - The bandwidth of the wireless channel.
 Enable Wireless Radio - The wireless radio of the AP can be enabled or disabled to allow or
deny wireless stations to access. If enabled, the wireless stations will be able to access the
AP, otherwise, wireless stations will not be able to access the AP.
 Enable SSID Broadcast - If you select the Enable SSID Broadcast checkbox, the AP will
broadcast its name (SSID) on the air.
Be sure to click the Save button to save your settings on this page.

Note:
The device will reboot automatically after you click the Save button.
4.7.2 Wireless Security
Selecting Wireless > Wireless Security will enable you to configure the security of the wireless
network for your device on the page as shown in Figure 4-8.

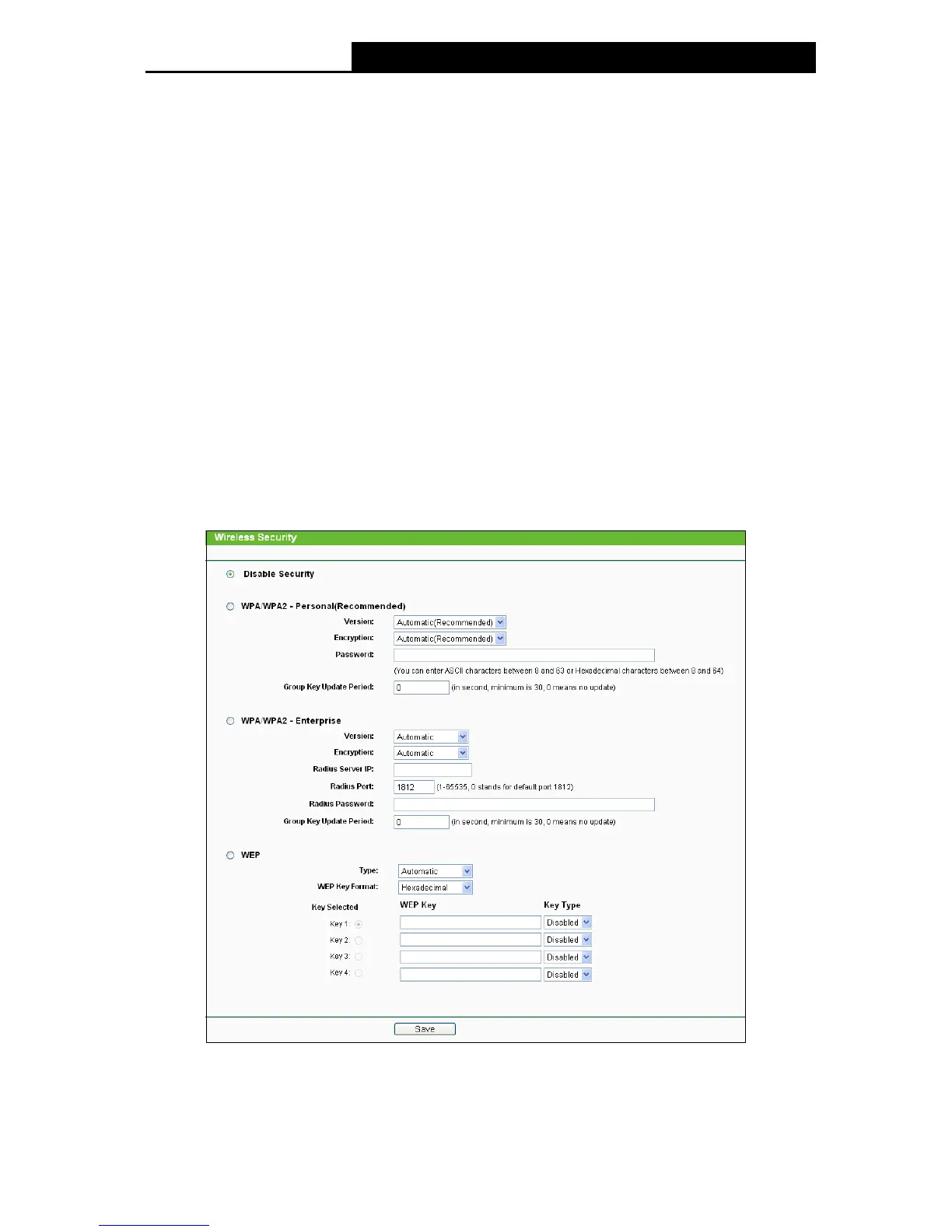

Figure 4-8 Wireless Security
 Selected SSID: If Multi-SSID is enabled, you can choose one of the SSIDs from the
pull-down list.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
