TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
60
4.9.3 Diagnostic
Choose menu “System Tools > Diagnostic”, and then you can transact Ping or Traceroute
function to check connectivity of your network in the following screen.

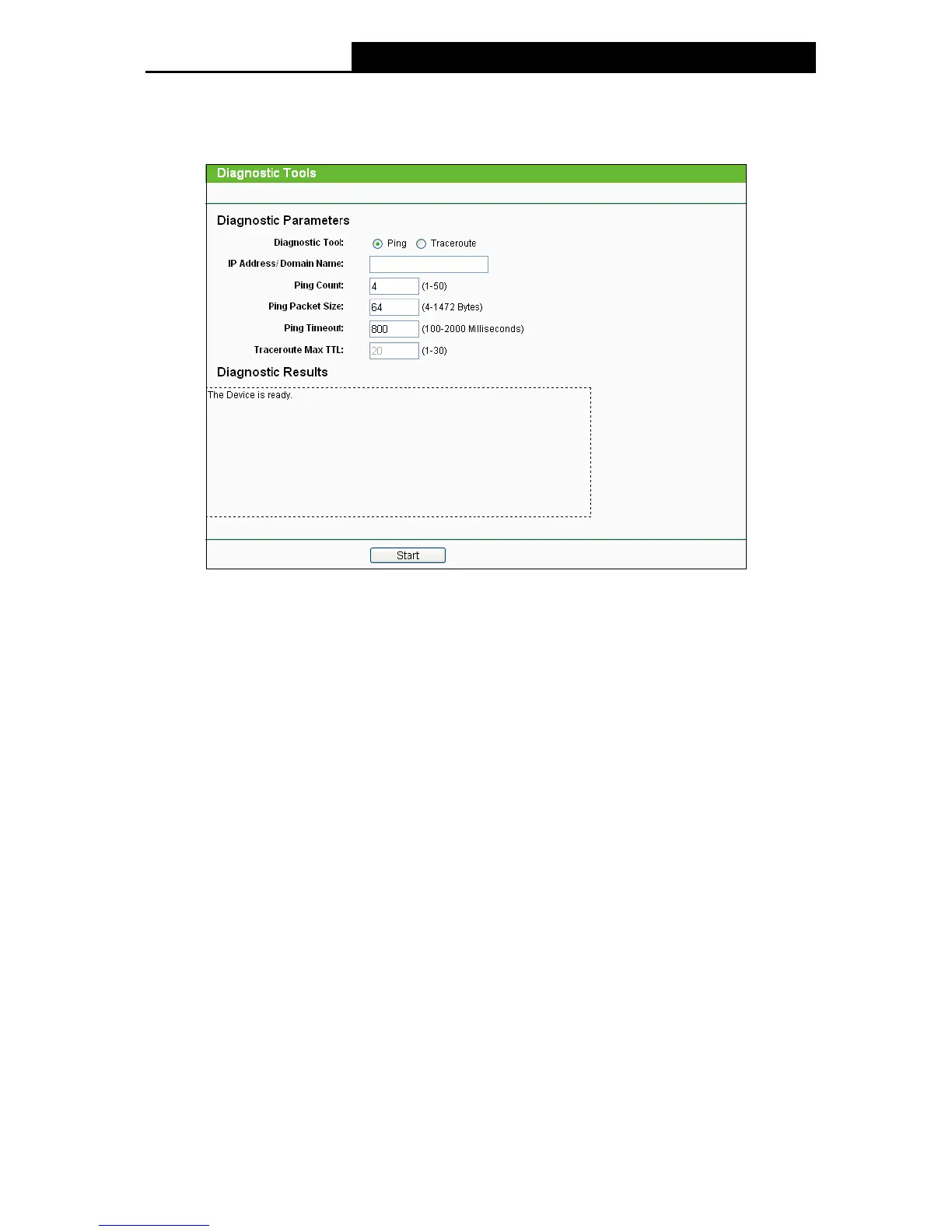

Figure 4-24 Diagnostic Tools
 Diagnostic Tool - Click the radio button to select one diagnostic tool:
 Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution
to a given host or gateway.
 Traceroute - This diagnostic tool tests the performance of a connection.

Note:
You can use ping/traceroute to test both numeric IP address or domain name. If
pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is
not, you might have a name resolution problem. In this case, ensure that the domain name you
are specifying can be resolved by using Domain Name System (DNS) queries.
 IP Address/ Domain Name - Enter the IP Address or Domain Name of the PC whose
connection you wish to diagnose.
 Ping Count - Specifies the number of Echo Request messages sent. The default is 4.
 Ping Packet Size - Specifies the number of data bytes to be sent. The default is 64.
 Ping Timeout - Time to wait for a response, in milliseconds. The default is 800.
 Traceroute Max TTL - Set the maximum number of hops (max TTL to be reached) in the
path to search for the target (destination). The default is 20.
Click the Start button to start the diagnostic procedure.
The Diagnostic Results page (as shown in Figure 4-25) displays the result of diagnosis.
If the result is similar to the following screen, the connectivity of the Internet is fine.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
