2) Power off the AP and PC. Then turn on the AP and restart the PC. The built-in DHCP
server will assign IP address for the PC.

Note:
For Windows 98 OS or earlier, the PC and AP may need to be restarted.
Now, you can run the Ping command in the command prompt to verify the network connection
between your PC and the AP. The following example is in Windows 2000 OS.
Open a command prompt, and type ping 192.168.0.254, and then press Enter.
If the result displayed is similar to that shown in Figure 3-1, the connection between your PC and
the AP has been established.

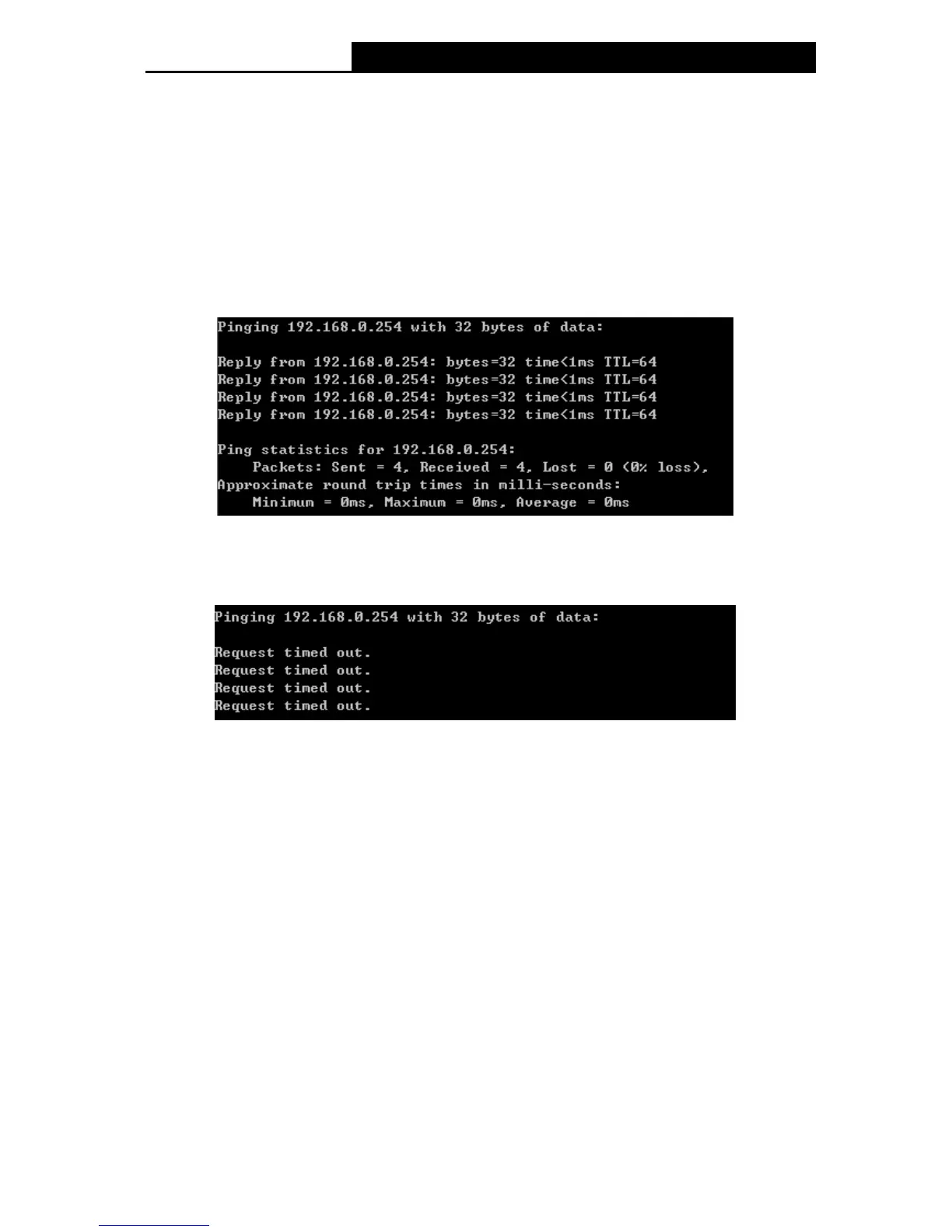

Figure 3-1 Success result of Ping command
If the result displayed is similar to that shown in Figure 3-2, it means that your PC has not
connected to the AP.
Figure 3-2 Failure result of Ping command
Please check the connection following these steps:
1. Is the connection between your PC and the AP correct?

Note:
The LED of LAN port you link to on the AP and LEDs on your PC's adapter should be lit.
2. Is the TCP/IP configuration for your PC correct?

Note:
If the AP's IP address is 192.168.0.254, your PC's IP address must be within the range of
192.168.0.2 ~ 192.168.0.253.
3.2 Quick Setup
The following instructions will guide you through a few easy steps to configure your AP and
connect to Internet. With a Web-based (Internet Explorer or Netscape
®
Navigator) utility, it is easy
to configure and manage the TL-WA7210N 2.4GHz 150Mbps Outdoor Wireless Access Point.
The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
