TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
61

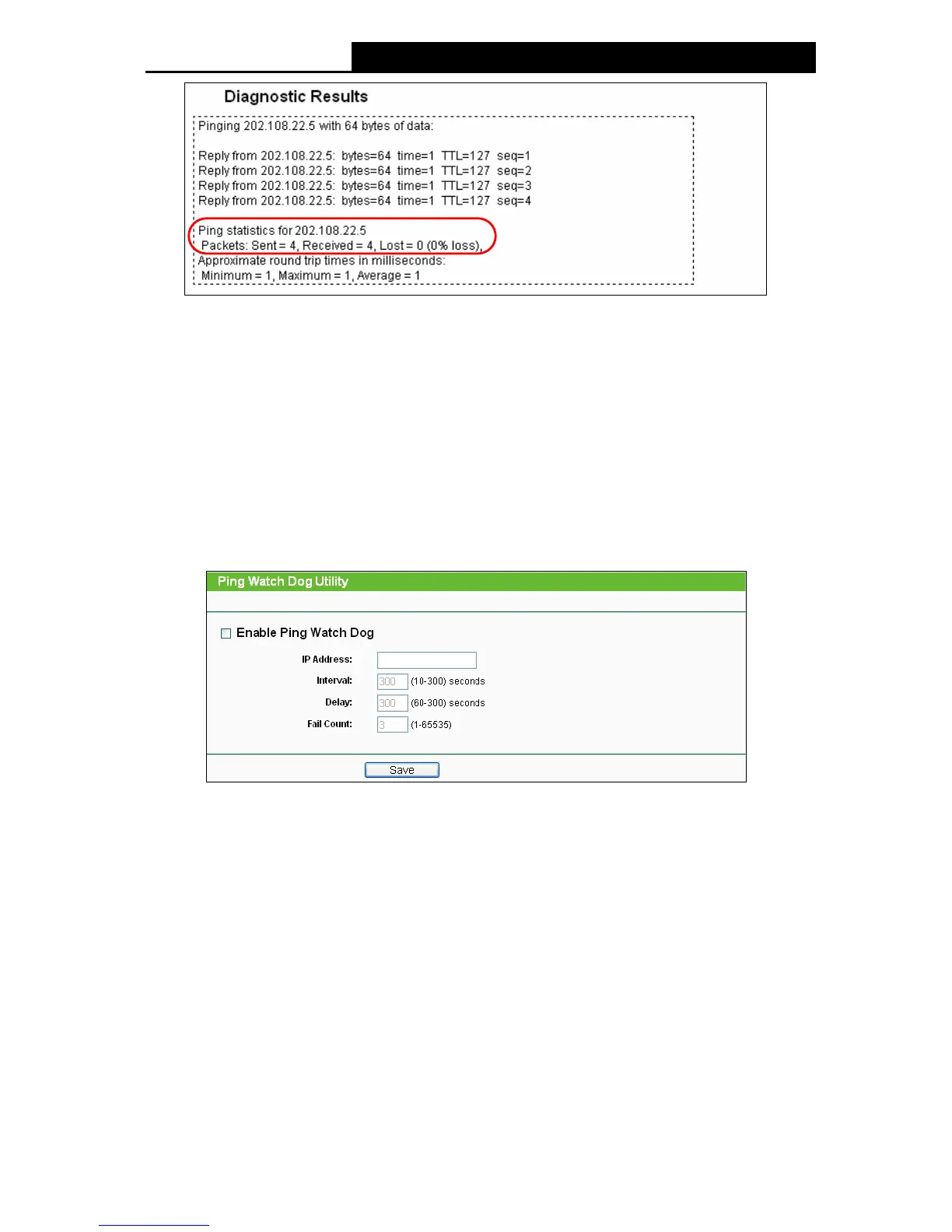

Figure 4-25 Diagnostic Results

Note:
1) Only one user can use the diagnostic tools at one time.
2) "Ping Count", "Ping Packet Size" and "Ping Timeout" are Ping Parameters, and "Traceroute
Max TTL" is Traceroute Parameter.
4.9.4 Ping Watch Dog
Selecting System Tools > Ping Watch Dog allows you to continuously monitor the particular
connection between the device to a remote host. It makes this device continuously ping a user
defined IP address (it can be the internet gateway for example). If it is unable to ping under the
user defined constraints, this device will automatically reboot.
Figure 4-26 Ping Watch Dog Utility
 Enable Ping Watch Dog - Turn on/off Ping Watch Dog.
 IP Address - The IP address of the target host where the Ping Watch Dog Utility is sending
ping packets.
 Interval - Time internal between two ping packets which are sent out continuously.
 Delay - Time delay before first ping packet is sent out when the device is restarted.
 Fail Count - Upper limit of the ping packet the device can drop continuously. If this value is
overrun, the device will restart automatically.
Be sure to click the Submit button to make your settings in operation.
4.9.5 Speed Test
Selecting System > Speed Test allows you to test the connection speed to and from any
reachable IP address on current network on the page as shown in Figure 4-27. The speed test is
especially used when you are building wireless network between devices which are far away from

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
