TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
4
1.3 Conventions
The AP or TL-WA7210N, or device mentioned in this User guide stands for TL-WA7210N 2.4GHz
150Mbps Outdoor Wireless Access Point without any explanations.
Parameters provided in the pictures are just references for setting up the product, which may
differ from the actual situation.
You can set the parameters according to your demand.

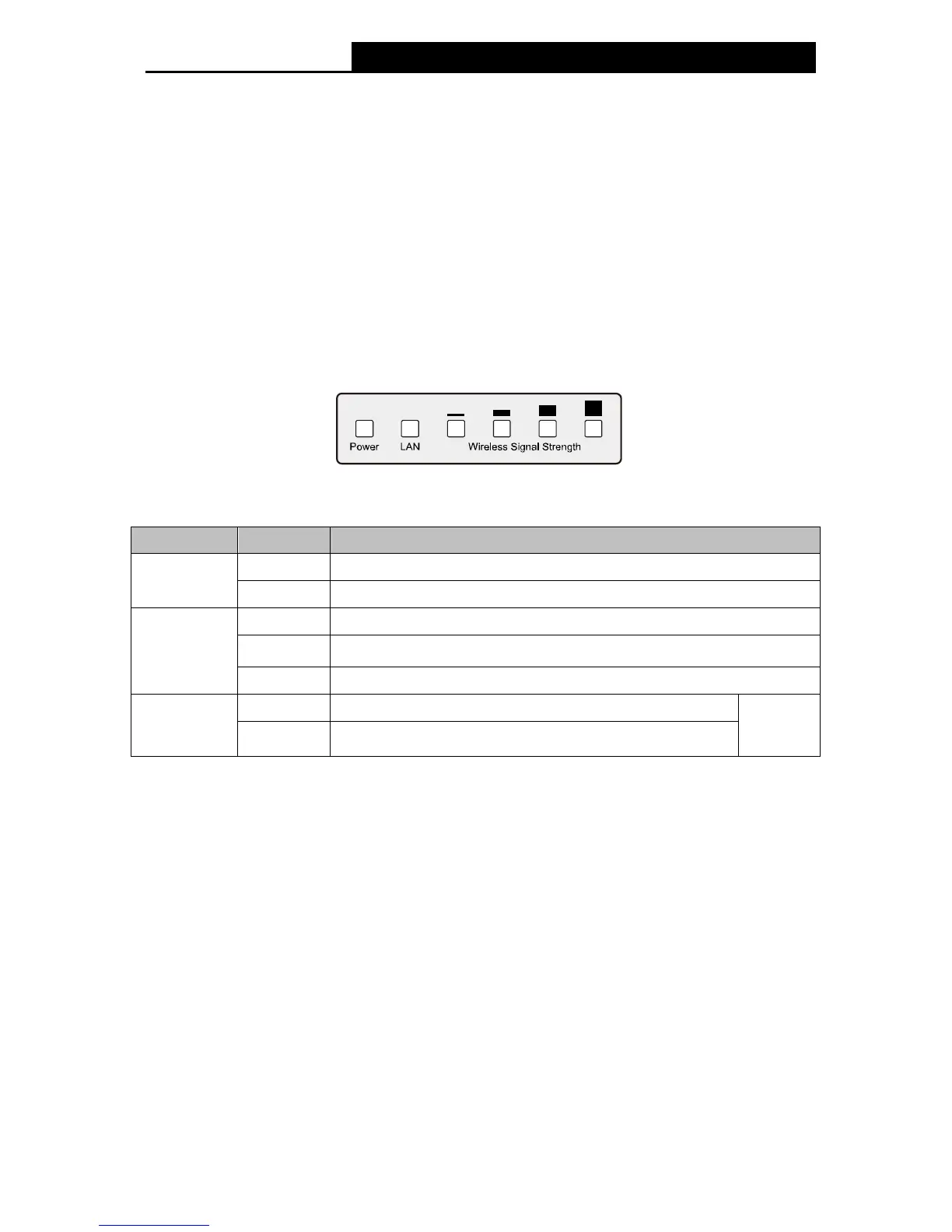

1.4 Panel Layout
1.4.1 The Front Panel
TL-WA7210N consists of several LED indicators, which is designed to indicate connections and
wireless signal.
Figure 1-1 Front Panel sketch
View from left to right.
Name Status Indication
Power
Off No Power
On Power on
LAN
Off There is no device linked to the corresponding port
On There is a device linked to the corresponding port but no activity
Flashing There is an active device linked to the corresponding port
Wireless
Signal
Strength
Off There is no remote wireless signal
Client or
Repeater
mode
On Indicates the wireless signal strength of a remote AP
Table 2-1

Note:
For Wireless Signal Strength LEDs:
 In AP or Bridge mode, all the four LEDs will light up.
 In Client or Repeater mode, the corresponding LED(s) will light up when the RSSI value
(wireless signal strength value) reaches the RSSI Threshold. The value of RSSI Threshold
can be set on Antenna Alignment page as shown in Figure 4-12.
For example, if the RSSI value is 30, the RSSI Threshold of the four LED are 15, 25, 35, 45
respectively, and then the LEDs whose RSSI Threshold are 15 and 25 will light up.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
