TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
57

Note:
The changes won't take effect until the device reboots.
4.9 System Tools
System Tools option helps you to optimize the configuration of your device. You can upgrade the
AP to the latest version of firmware as well as backup or restore the AP’s configuration files. Ping
Watch Dog can help to continuously monitor a particular connection to a remote host. Speed Test
helps to test the connection speed to and from any reachable IP address on current network,
especially when we are building wireless network between devices which are far away from each
other. It’s suggested that you change the default password to a more secure one because it
controls access to the device’s web-based management page. Besides, you can find out what
happened to the system in System Log.
There are twel ve submenus under the System Tools menu (shown as Figure 4-21): SNMP, Time
Settings, Diagnostic, Ping Watch Dog, Speed Test, Firmware Upgrade, Factory Defaults,
Backup & Restore, Reboot, Password, System log and Statistics. Clicking any of them will
enable you to configure the corresponding function. The detailed explanations for each submenu
are provided below.

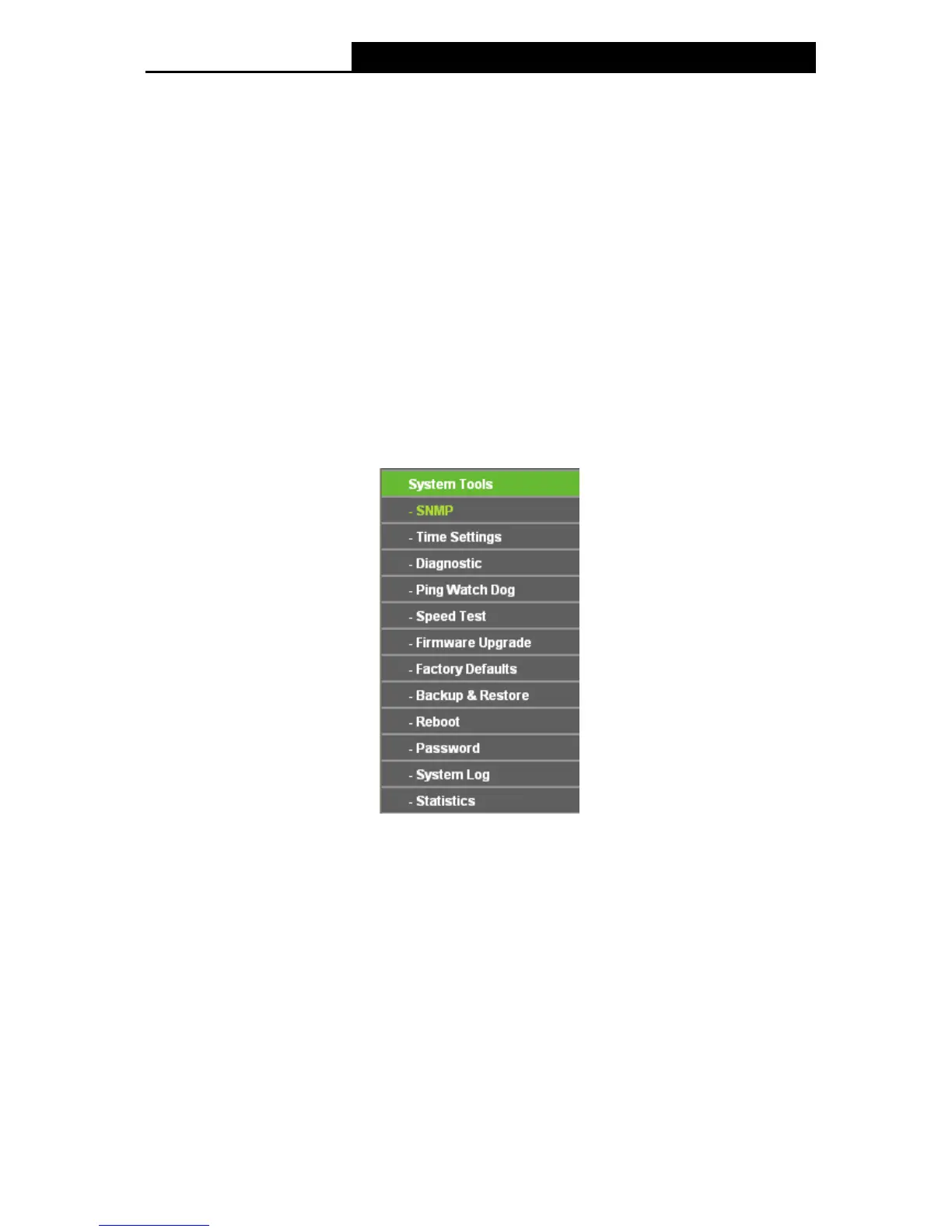

Figure 4-21 The System Tools menu
4.9.1 SNMP
Simple Network Management Protocol (SNMP) is a popular network monitoring and management
protocol.
Choose menu “System Tools > SNMP”, and then you can configure the SNMP on the following
screen.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
