TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
125
 To restore the AP's configuration, follow these instructions:
1. Click the Browse button to find the configuration file which you want to restore.
2. Click the Restore button to update the configuration with the file whose path is the one you
have input or selected in the blank.

Note:
The current configuration will be covered with the uploading configuration file. Wrong process will
lead the device unmanaged. The restoring process lasts for 20 seconds and the AP will restart
automatically then. Keep the power of the AP on during the process, in case of any damage.
5.17.6 Reboot
Choose menu “System Tools > Reboot”, and then you can click the Reboot button to reboot the
Device via the next screen.

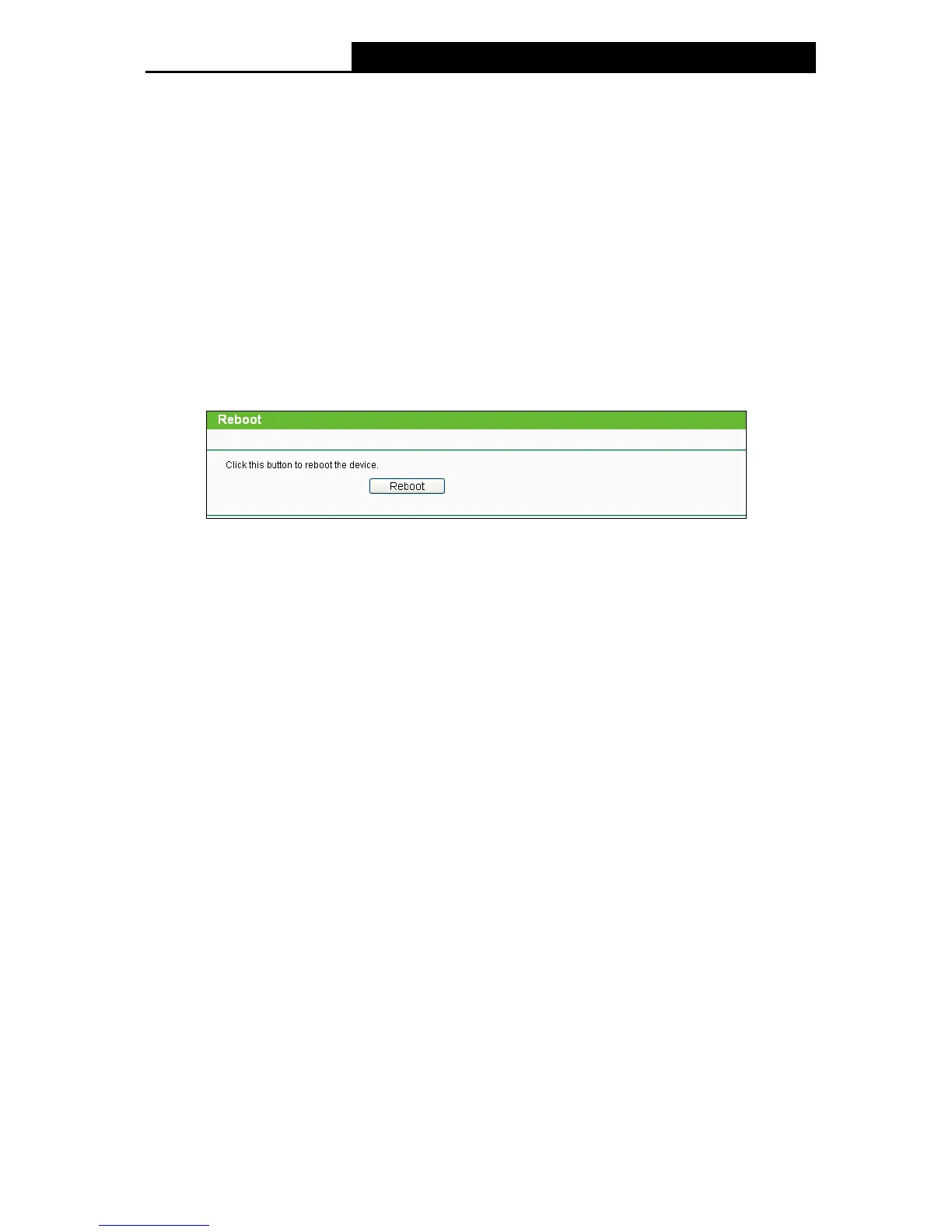

Figure 5-78 Reboot the Device
Click the Reboot button to reboot the Device.
 Some settings of the Device will take effect only after rebooting, including:
 Change the LAN IP Address (system will reboot automatically).
 Change the DHCP Settings.
 Change the Wireless configurations.
 Change the Web Management Port.
 Upgrade the firmware of the Device (system will reboot automatically.).
 Restore the Device's settings to the factory defaults (system will reboot automatically.).
 Update the configuration with the file (system will reboot automatically.).
5.17.7 Password
Choose menu “System Tools > Password”, and then you can change the factory default user
name and password of the Device in the next screen as shown in Figure 4-32.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
