TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
107
4. Then you will go back to the Parental Control Settings page and see the following list.

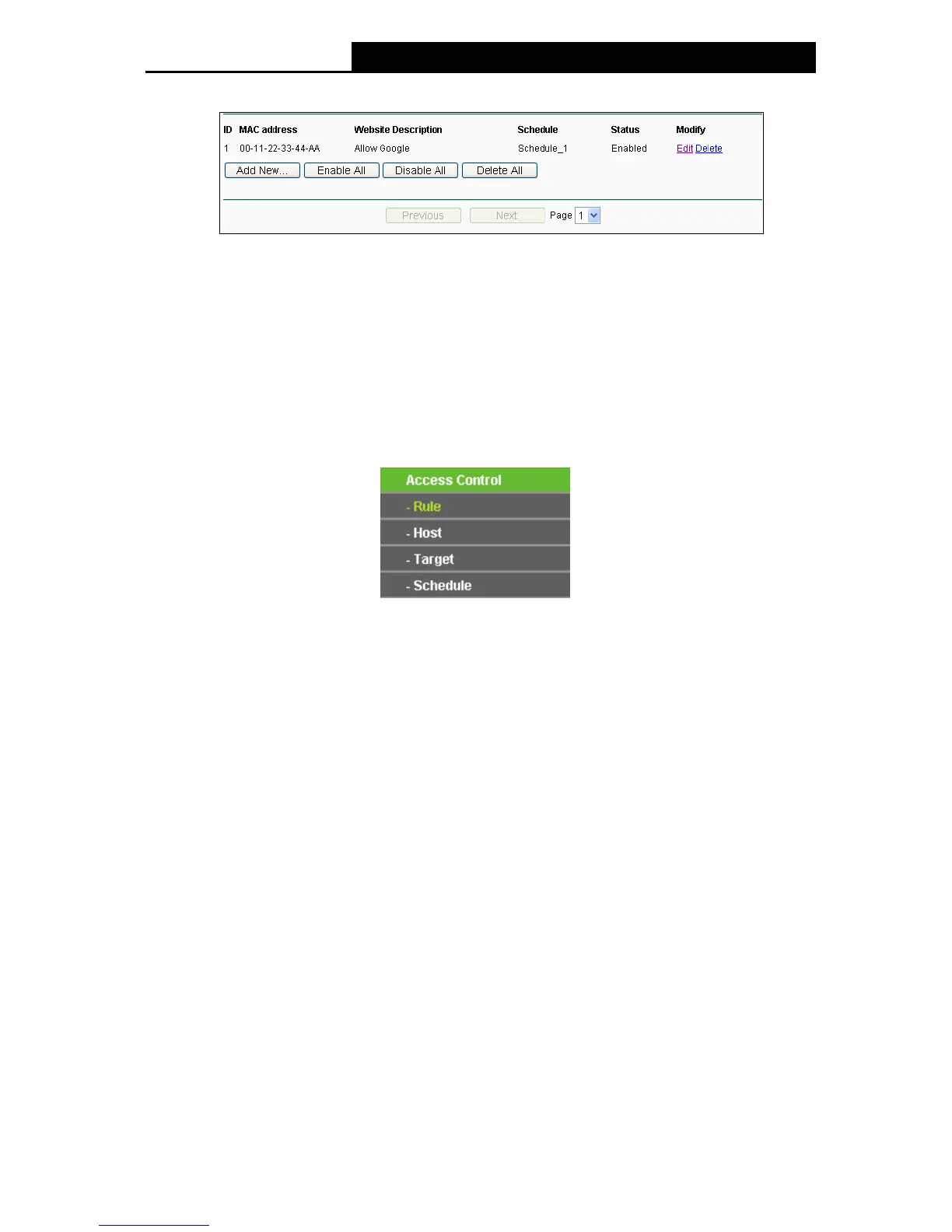

Figure 5-46 Parental Control List
Click the Add New... button to add a new Parental Control entry.
Click the Enable All button to enable all the rules in the list.
Click the Disable All button to disable all the rules in the list.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page.
Click the Previous button return to the previous page.
5.12 Access Control
Figure 5-47 Access Control
There are four submenus under the Access Control menu as shown in Figure 5-47: Rule, Host,
Target and Schedule. Click any of them, and you will be able to configure the corresponding
function.
The Device, providing convenient and strong Internet access control function, can control the
Internet activities of hosts in the LAN. Moreover, you can flexibly combine the Host List, Target
List and Schedule to restrict the Internet surfing of these hosts.
5.12.1 Rule
Choose menu Access Control > Rule, and then you can view and set Access Control rules in the
screen as shown in Figure 5-48.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
