100

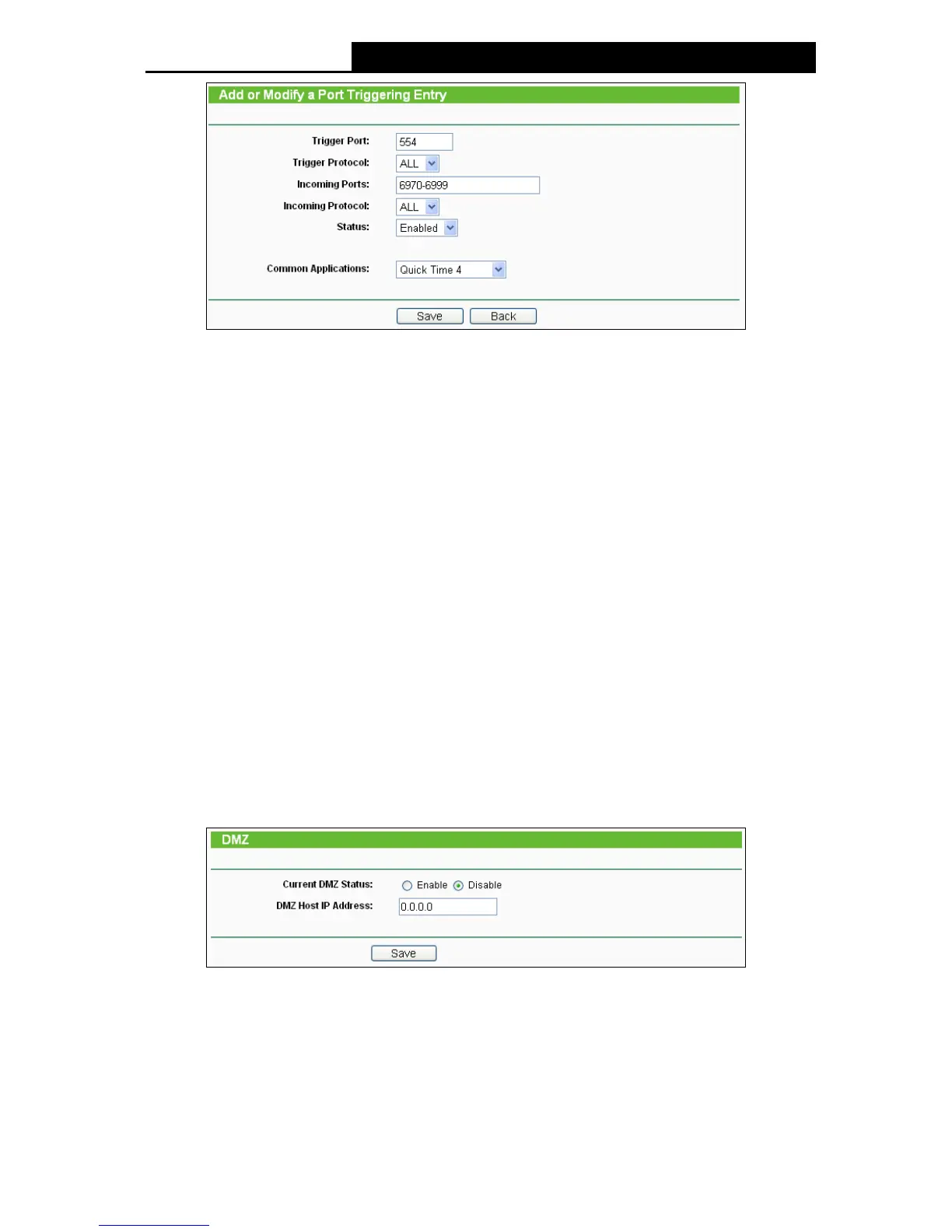

Figure 5-37 Add or Modify a Triggering Entry
To modify or delete an existing entry, please take the following steps:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the
Delete.
2. Modify the information.
3. Click the Save button.
Click Enable All to make all entries enabled.
Click Disabled All to make all entries disabled.
Click Delete All to delete all entries
Note:
1) When the trigger connection is released, the corresponding opening ports will be closed.
2) Each rule can only be used by one host on the LAN at a time. The trigger connection of other
hosts on the LAN will be refused.
3) Incoming Port Range enabled cannot overlap each other at the same time.
5.9.3 DMZ
Selecting Forwarding > DMZ will allow you to set up an DMZ host on the page as shown in
Figure 5-38.
Figure 5-38 DMZ
To assign a computer or server to be a DMZ server:
1. Click the Enable radio button
2. Enter the IP address of a local PC that is desired to be set as the DMZ host in the DMZ Host
IP Address field.
3. Click the Save button.
