TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
82
be able to configure the corresponding function. The detailed explanations for each submenu are
provided below.

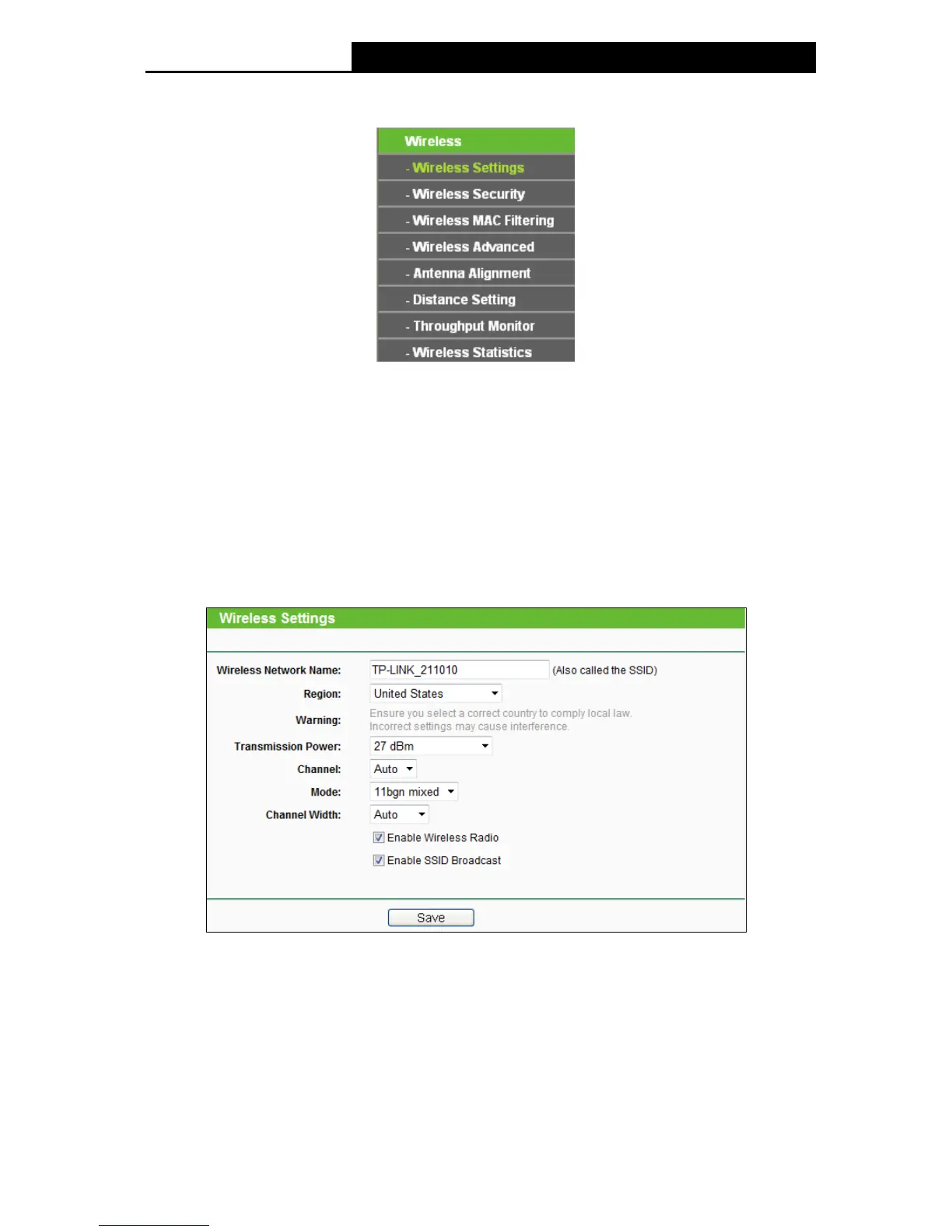

Figure 5-15 Wireless menu
5.7.1 Wireless Settings
Choose menu Wireless > Wireless Settings, and then you can configure the basic settings for
the wireless network on the Wireless Settings page（Figure 5-16 & Figure 5-17
）.

Note:
There are differences between the Wireless Settings page in AP Router mode and that in AP
Client Router mode, as shown in Figure 5-16 & Figure 5-17.
1. Wireless settings in AP Router mode
Figure 5-16 Wireless Settings in AP Router mode
 Wireless Network Name - Enter a string of up to 32 characters. The same Name (SSID)
must be assigned to all wireless devices in your network. The default SSID is set to be
TP-LINK_xxxxxx (xxxxxx indicates the last unique six characters of each Device's MAC
address), which can ensure your wireless network security. But it is recommended strongly
that you change your networks name (SSID) to a different value. This value is case-sensitive.
For example, MYSSID is NOT the same as MySsid.
 Region- Select your region from the pull-down list. This field specifies the region where the
wireless function of the Device can be used. It may be illegal to use the wireless function of

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
