TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
58

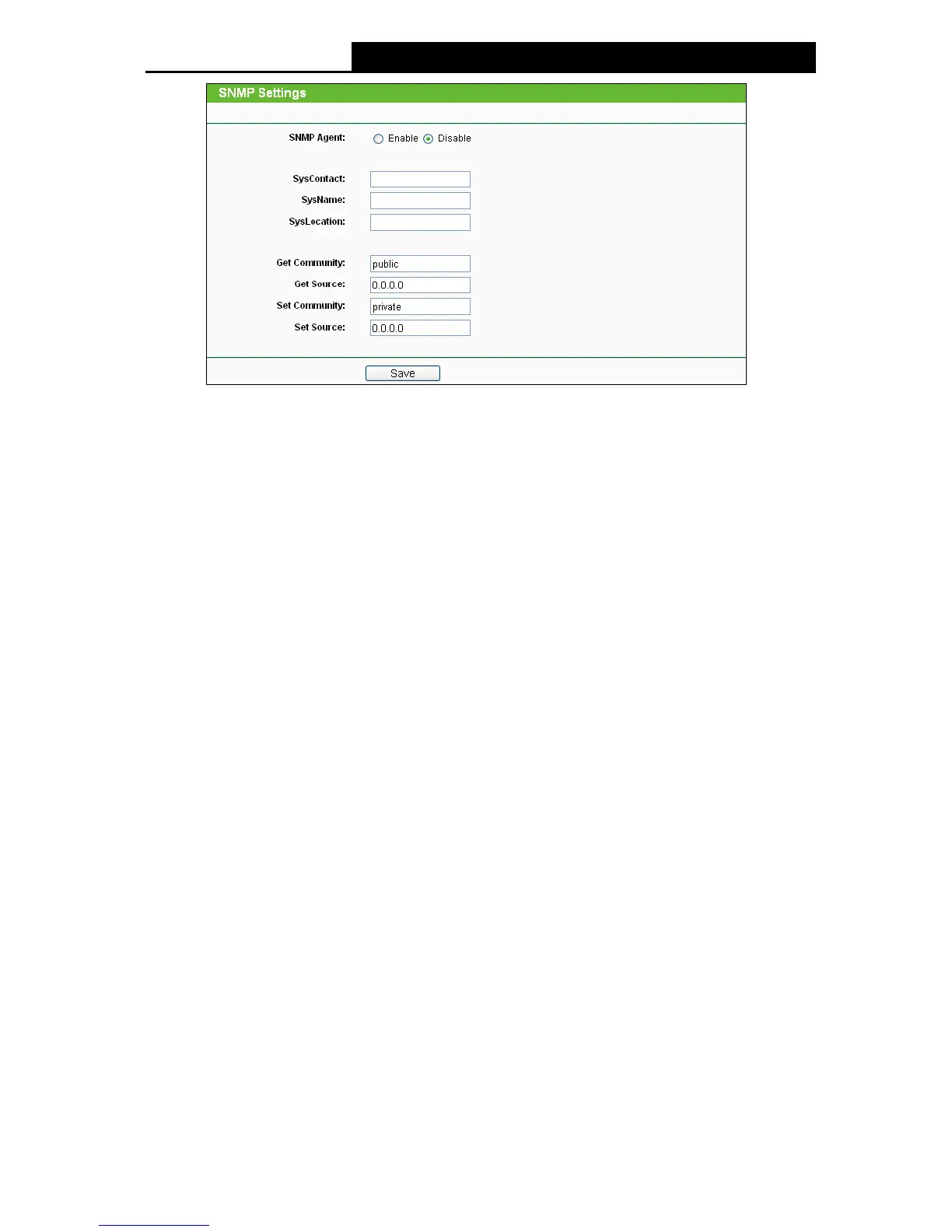

Figure 4-22
SNMP Agent - Choose Enable to open this function if you want to have remote control through
SNMPv1/v2 agent with MIB-II. Choose Disable to close this function.
SysContact - The textual identification of the contact person for this managed node.
SysName - An administratively-assigned name for this managed node.
SysLocation - The physical location of this node.

Note:
Specifying one of these values via the Device's Web-Based Utility makes the corresponding
object read-only. If there isn't such a config setting, then the write request will succeed (assuming
suitable access control settings), but the new value would be forgotten the next time the agent
was restarted.
Get Community - Enter the community name that allows Read-Only access to the Device's
SNMP information. The community name can be considered a group password. The default
setting is public.
Get Source - Get source defines the IP address or subnet for management systems that can read
information from this 'get' community device.
Set Community - Enter the community name that allows Read/Write access to the Device's
SNMP information. The community name can be considered a group password. The default
setting is private.
Set Source - Set source defines the IP address or subnet for management systems that can
control this 'set' community device.

Note:
A restricted source can be a specific IP address (e.g. 10.10.10.1), or a subnet - represented as
IP/BITS (e.g. 10.10.10.0/24). If an IP Address of 0.0.0.0 is specified, the agent will accept all
requests under the corresponding community name.
Click the Save button to save your settings.
4.9.2 Time Settings
Choose menu “System Tools > Time Settings”, and then you can configure the time on the
following screen.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
