TP-Link TL-WA7210N User Manual

TL-WA7210N
2.4GHz 150Mbps Outdoor Wireless Access Point User Guide
87
 Near the center of the area in which your wireless stations will operate;
 In an elevated location such as a high shelf;
 Away from the potential sources of interference, such as PCs, microwaves, and cordless
phones;
 With the Antenna in the upright position;
 Away from large metal surfaces.

Note:
Failure to follow these guidelines can result in significant performance degradation or inability to
wirelessly connect to the Device.
5.7.2 Wireless Security
Selecting Wireless > Wireless Security will enable you to configure the security of the wireless
network for your device on the page as shown in Figure 4-8.

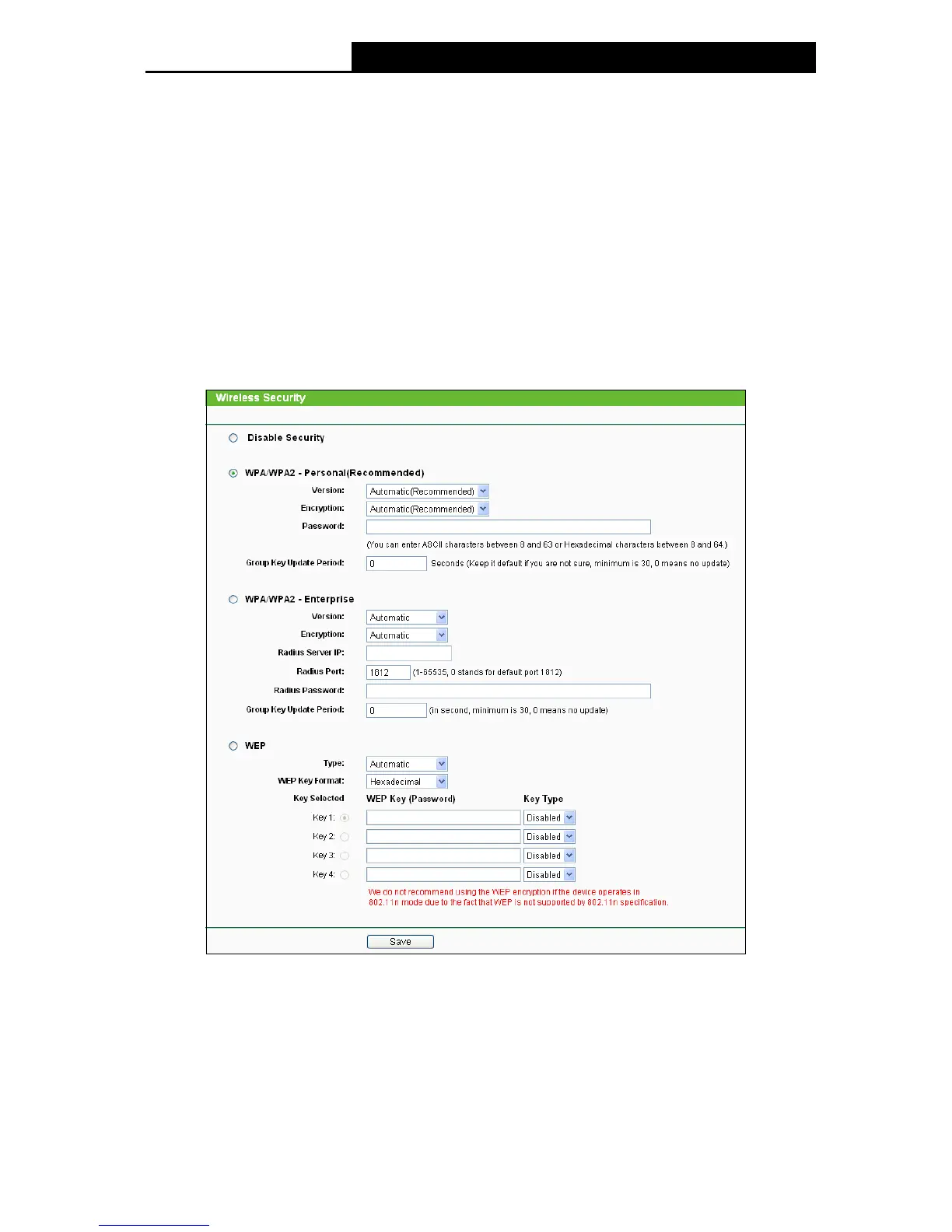

Figure 5-20 Wireless Security
 Disable Security - The wireless security function can be enabled or disabled. If disabled, the
wireless stations will be able to connect the device without encryption. It is recommended
strongly that you choose one of following options to enable security.
 WPA/WPA2-Personal - Select WPA based on Radius Server.
 WPA/WPA2-Enterprise - Select WPA based on pre-shared passphrase.
 WEP - Select 802.11 WEP security.

TP-Link TL-WA7210N Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab
Receiver sensitivity	802.11n\\r 150M: -76dBm\\r 121.5M: -78dBm\\r 108M: -80dBm\\r 81M: -84dBm\\r 54M:-87dBm\\r 40.5M:-91dBm\\r 27M:-92dBm\\r 13.5M:-95dBm\\r 802.11g\\r 54M: -79dBm\\r 48M: -81dBm\\r 36M: -85dBm\\r 12M: -92dBm\\r 6M:-95dBm
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Maximum operating distance	150 m
Internal	No
Certification	CE, FCC, RoHS
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Input current	1 A
AC input voltage	12 V
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Antenna gain level (max)	12 dBi

Weight and Dimensions

Depth	120 mm
Width	265 mm
Height	83 mm
