Triumph Scrambler 900 User Manual

MAINTENANCE AND ADJUSTMENT
107
To inspect the throttle:
▼ Check that the throttle opens
smoothly, without undue force
and that it closes without sticking.
Have your authorized Triumph
dealer check the throttle system if
a problem is detected or any doubt
exists.
▼ If there is an incorrect amount of
free play, Triumph recommends that
you have your authorized Triumph
dealer investigate.
▼ Check that there is 0.04 - 0.08 in
(1 - 2 mm) of throttle grip free play
when lightly turning the throttle
grip back and forth.
Clutch
2
1

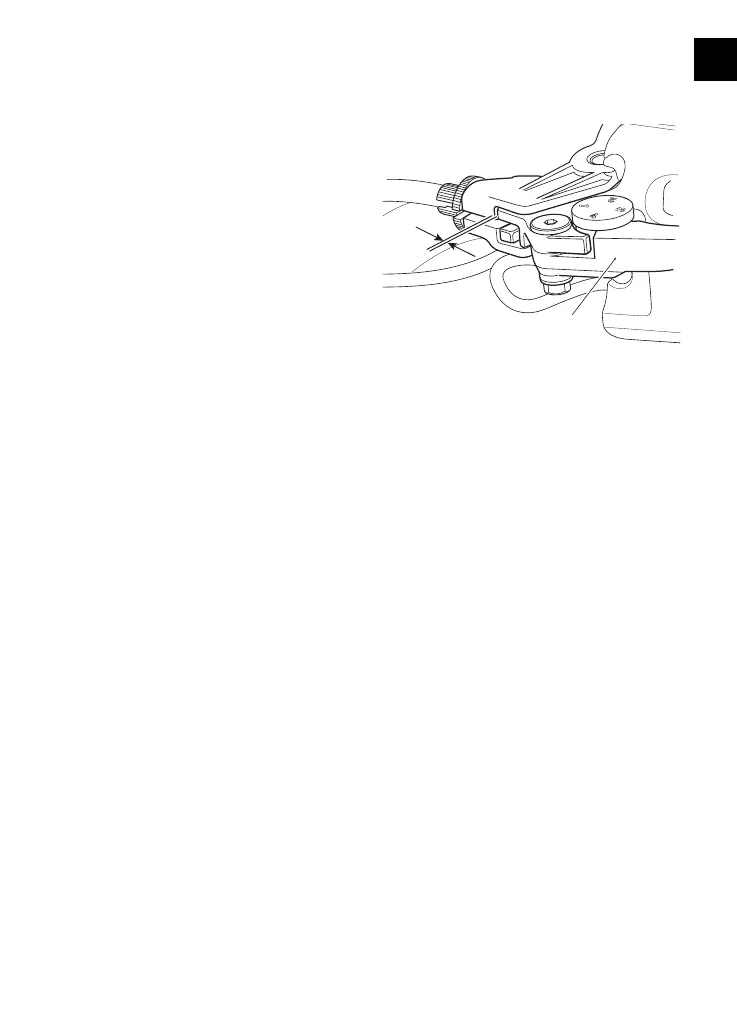

1. Clutch lever
2. 0.08 - 0.12 in (2 - 3 mm)
The motorcycle is equipped with a
cable-operated clutch.
If the clutch lever has excessive free
play, the clutch may not disengage
fully. This will cause difficulty in shifting
gear and selecting neutral. This may
cause the engine to stall and make the
motorcycle difficult to control.
Conversely, if the clutch lever has
insufficient free play the clutch may
not engage fully, causing the clutch to
slip, which will reduce performance and
cause premature clutch wear.
Clutch lever free play must be
checked in accordance with scheduled
maintenance requirements.
Clutch Inspection
Check that there is 0.08 - 0.12 in (2 -
3 mm) clutch lever free play at the lever.
If there is an incorrect amount of free
play, adjustments must be made.

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
