Triumph Scrambler 900 User Manual

GENERAL INFORMATION
57

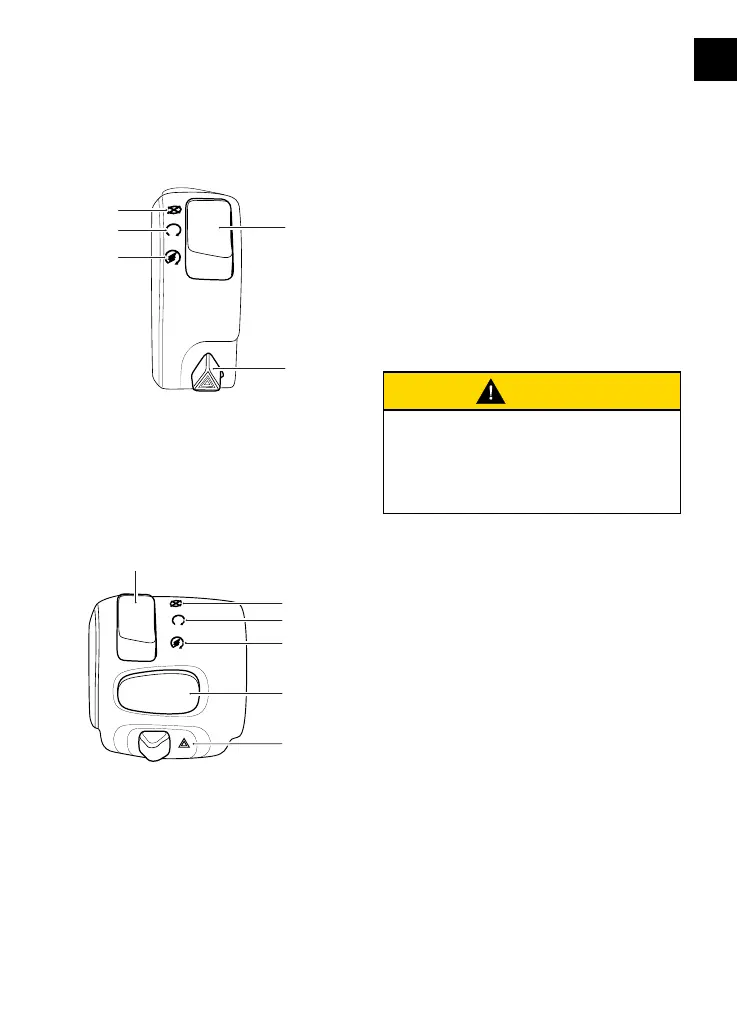

Right Handlebar Switches
Scrambler 900, Speed Twin 900,
Speed Twin 1200 and Thruxton RS
1
5
4
3
2
1. Engine start/stop switch
2. STOP position
3. RUN position
4. START position
5. Hazard warning light switch
Bonneville T100 (all models) and
Bonneville T120 (all models)
1
5
4
3
2
6
1. Engine start/stop switch
2. STOP position
3. RUN position
4. START position
5. MODE button (Bonneville T120 (all models)
only)
6. Hazard warning light switch
STOP Position
The STOP position is for emergency use.
If an emergency arises which requires
the engine to be stopped, move the
engine start/stop switch to the STOP
position.
Although the engine stop switch stops
the engine, it does not turn off all
the electrical circuits and may cause
difficulty in restarting the engine due to
a discharged battery. Normally, only the
ignition switch should be used to stop
the engine.
Caution
Do not leave the ignition switch in
the ON position unless the engine is
running as this may cause damage
to electrical components and will
discharge the battery.
RUN Position
In addition to the ignition switch being
turned to the ON position, the engine
start/stop switch must be in the RUN
position for the motorcycle to operate.
START Position
The START position operates the electric
starter. For the starter to operate,
the clutch lever must be pulled to the
handlebar.
Even if the clutch lever is pulled to the
handlebar, the starter will not operate
if the side stand is down and a gear is
engaged.

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
