MAINTENANCE AND ADJUSTMENT
138
Warning
The battery contains harmful
materials. Always keep children and
pets away from the battery at all
times.

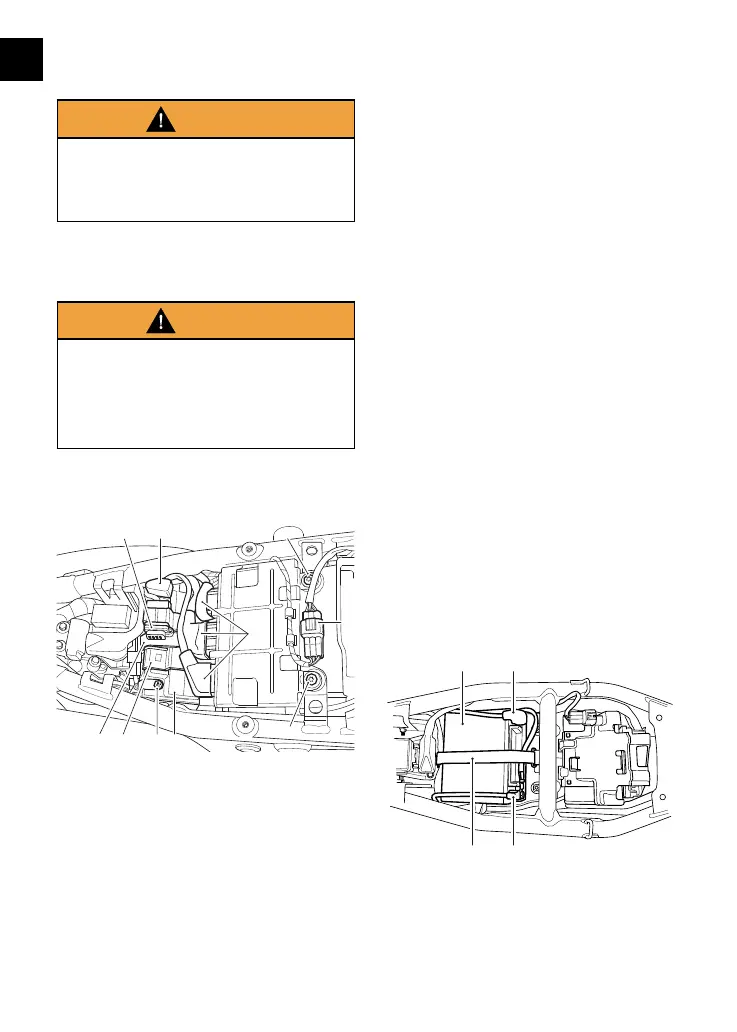

Battery Removal
Warning
Make sure that the battery terminals
do not touch the motorcycle frame.
This may cause a short circuit or spark
which would ignite battery gases
causing a risk of personal injury.
All Models except Speed Twin 1200 and
Thruxton RS
2
4
3
5
1
8
679
3
1. USB socket
2. Positive (+) terminal
3. Engine Control Module (ECM) fasteners
4. Accessory cable
5. Connectors
6. Battery
7. Negative (-) terminal
8. Battery cover
9. Battery strap
To remove the battery:
▼ Remove the seat (see page 71).
▼ Disconnect the battery leads,
negative (black) lead first and then
the positive (red) lead.
▼ Release the accessory connector.
▼ Carefully release the accessory
connector cable from the ECM unit
clips.
▼ Loosen the fasteners on the ECM
unit.
▼ Release the three connectors to the
ECM unit.
▼ Carefully lift the ECM unit and place
to the side allowing access to the
battery.
Note
Make sure that the ECM unit is handled
with care during the battery removal or
installation process.
▼ Detach the USB port socket.
▼ Remove the battery strap.
▼ Remove the battery cover.
▼ Carefully remove the battery from
the motorcycle.
Speed Twin 1200 and Thruxton RS Only
3
12
4
1. Battery
2. Positive (+) terminal
3. Negative (-) terminal
4. Battery strap

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
