Triumph Scrambler 900 User Manual

GENERAL INFORMATION
68
Side Panels
All Models except Scrambler 900

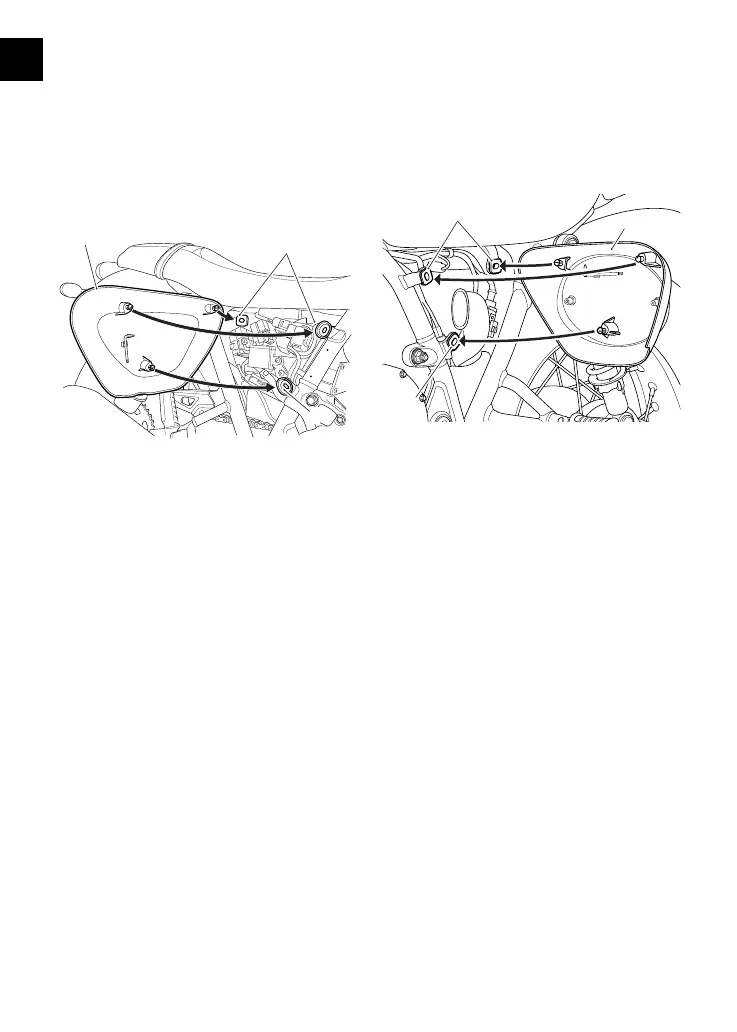

The right side panel can be removed to
gain access to the adjustment tool and
the rear brake fluid reservoir.
1
2
2
1. Side panel (right hand shown)
2. Grommets
To remove either side panel:
▼ Grasp the panel firmly and pull the
panel away from the motorcycle
until it is free from the three
retaining grommets (leaving the
grommets in place).
To reinstall either side panel:
▼ Position the three locating dowels to
the grommets, then press firmly to
secure the panel.
▼ Finally, grasp the panel and make
sure that it is fully retained.
Scrambler 900
Left Hand Side Panel
The left hand side panel can be removed
to gain access to the adjustment tool.
2
1
2
1. Side panel (left hand shown)
2. Grommets
To remove the left hand side panel:
▼ Grasp the panel firmly and pull the
panel away from the motorcycle
until it is free from the three
retaining grommets (leaving the
grommets in place).
To reinstall the left hand side panel:
▼ Position the three locating dowels to
the grommets, then press firmly to
secure the panel.
▼ Finally, grasp the panel and make
sure that it is fully retained.

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
