Triumph Scrambler 900 User Manual

MAINTENANCE AND ADJUSTMENT
147
License Plate Light
Bonneville T100 (all models),
Bonneville T120 (all models),
Speed Twin 1200 and Thruxton RS
The license plate light unit is a sealed,
maintenance free LED unit. The license
plate light unit must be replaced in the
event of the failure of the license plate
light.
Scrambler 900 and Speed Twin 900

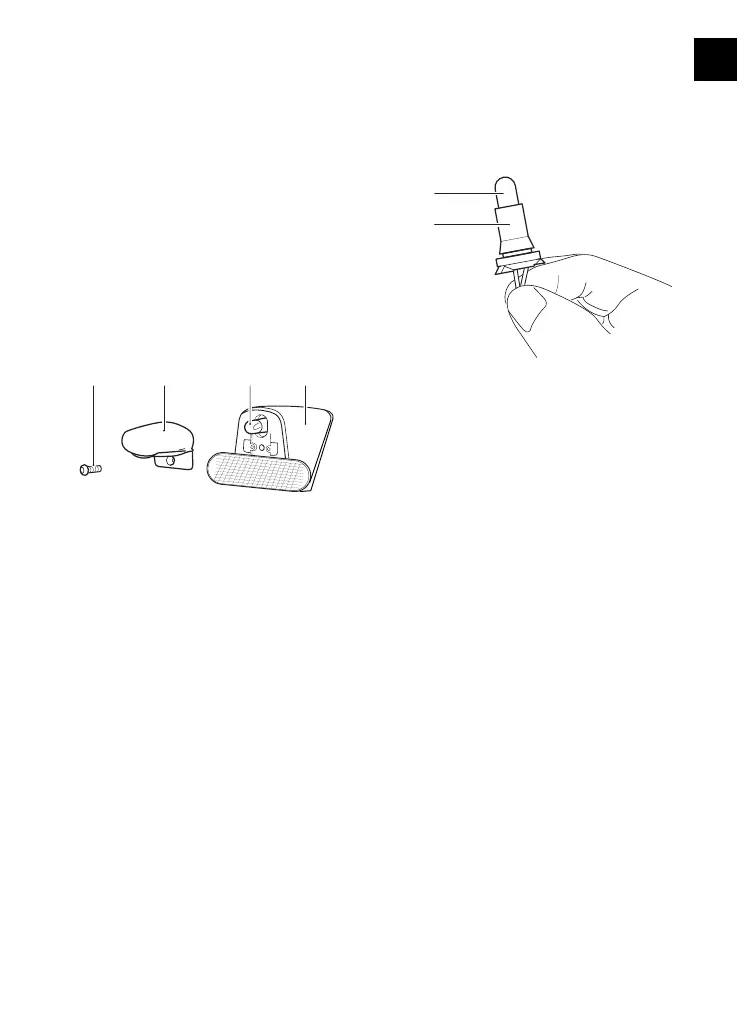

321 4
1. Fastener
2. Lens unit
3. Bulb
4. License plate bracket
To change the license plate light bulb:
▼ Disconnect the battery, negative
black lead first.
▼ Loosen the fastener from the lens
unit.
▼ Remove the lens unit from the
license plate bracket.
▼ Detach the bulb retainer from the
lens unit.
1
2
1. Bulb
2. Bulb retainer
▼ Carefully remove the bulb from the
bulb retainer. Mount a new bulb into
the bulb retainer.
▼ Remount the bulb retainer into the
lens unit.
▼ Remount the lens unit to the license
plate bracket.
▼ Tighten the fastener to 9 lbf in
(1 Nm).
▼ Reconnect the battery, positive (red)
lead first and tighten the battery
terminals to 40 lbf in (4.5 Nm).
▼ Apply a light coat of grease to the
terminals to prevent corrosion.
▼ Cover the positive terminal with the
protective cap.

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
