Triumph Scrambler 900 User Manual

GENERAL INFORMATION
61

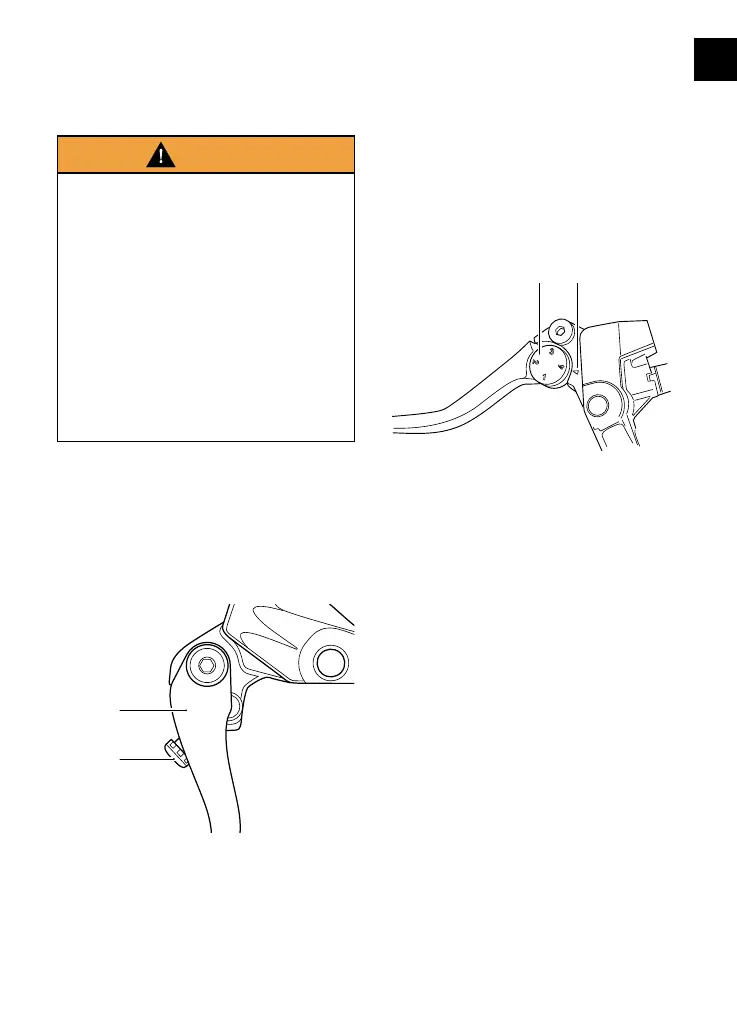

Clutch Lever Adjusters
Warning
Do not attempt to adjust the levers
with the motorcycle in motion as this
may lead to loss of motorcycle control
and an accident.
After adjusting the levers, operate the
motorcycle in an area free from traffic
to gain familiarity with the new lever
setting.
Do not loan your motorcycle to anyone
as they may change the lever setting
from the one you are familiar with
causing loss of motorcycle control and
an accident.
An adjuster is mounted to the front
clutch lever. The adjuster allows the
distance from the handlebar to the
clutch lever to be changed to suit the
span of the rider's hands.
Speed Twin 1200 Only
2
1
1. Clutch lever
2. Adjusting screw
To adjust the clutch lever:
▼ Push the clutch lever forward
and turn the adjusting screw in
to increase the distance or out
to shorten the distance from the
handlebar.
All Other Models
1 2
1. Clutch lever adjuster wheel
2. Arrow mark
To adjust the clutch lever:
▼ Push the clutch lever forward and
turn the adjuster wheel to align
one of the numbered positions with
the arrow mark on the clutch lever
holder.
▼ The distance from the handlebar
grip to the released clutch lever is
shortest when set to number four,
and longest when set to number
one.

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
