MAINTENANCE AND ADJUSTMENT
117
Front Brake Fluid Level Inspection
and Adjustment
Speed Twin 1200 and Thruxton RS
Warning
If there has been an appreciable drop
in the level of the fluid in either fluid
reservoir, consult your authorized
Triumph dealer for advice before riding.
Riding with depleted brake fluid levels,
or with a brake fluid leak is dangerous
and will cause reduced brake
performance potentially leading to loss
of motorcycle control and an accident.
3
1
2

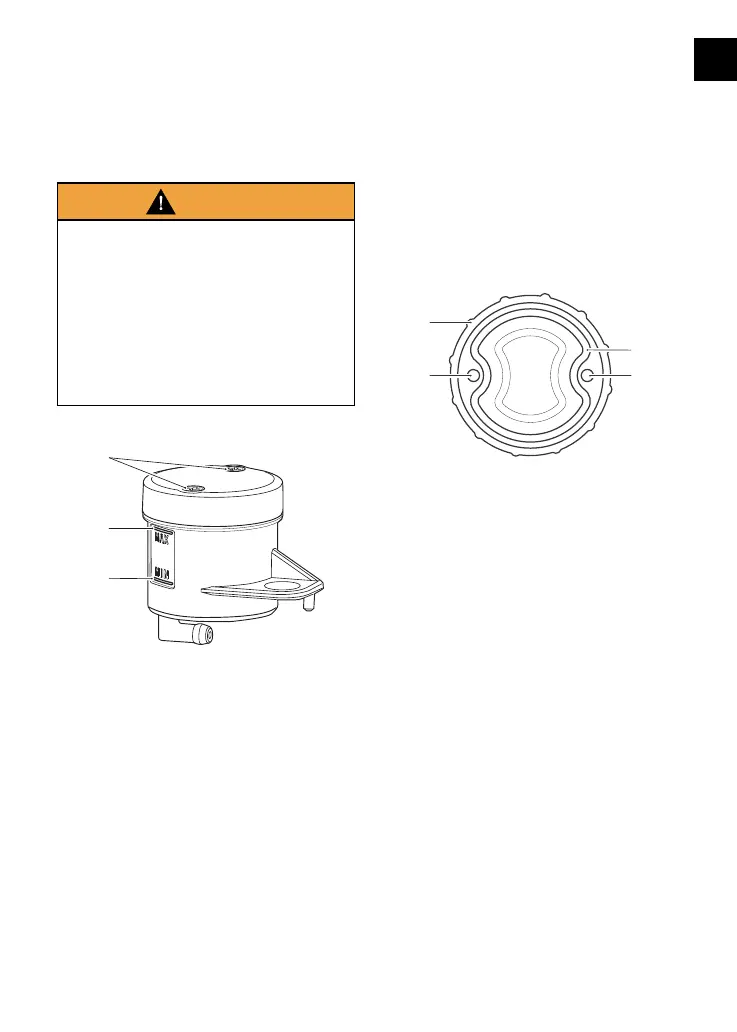

1. Reservoir cap retaining screws
2. MAX level line
3. MIN level line
To inspect the front brake fluid level:
▼ Check the level of brake fluid visible
in the MAX and MIN section of the
reservoir.
▼ The brake fluid level in the reservoir
must be kept between the MAX
and MIN level lines (reservoir held
horizontal).
To adjust the front brake fluid level:
▼ Loosen the reservoir cap retaining
screws and remove the reservoir
cap and the diaphragm seal.
▼ Fill the reservoir to the MAX level
line using new DOT 4 brake fluid
from a sealed container.
▼ Install the diaphragm seal into the
reservoir cap and make sure that
the holes for the fasteners in the
reservoir cap and the diaphragm
seal are correctly aligned.
1
2
33
1. Reservoir cap
2. Diaphragm seal
3. Reservoir cap retaining screw holes
▼ Install the reservoir cap retaining
screws into the reservoir cap and
diaphragm seal assembly.

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
