Triumph Scrambler 900 User Manual

MAINTENANCE AND ADJUSTMENT
118

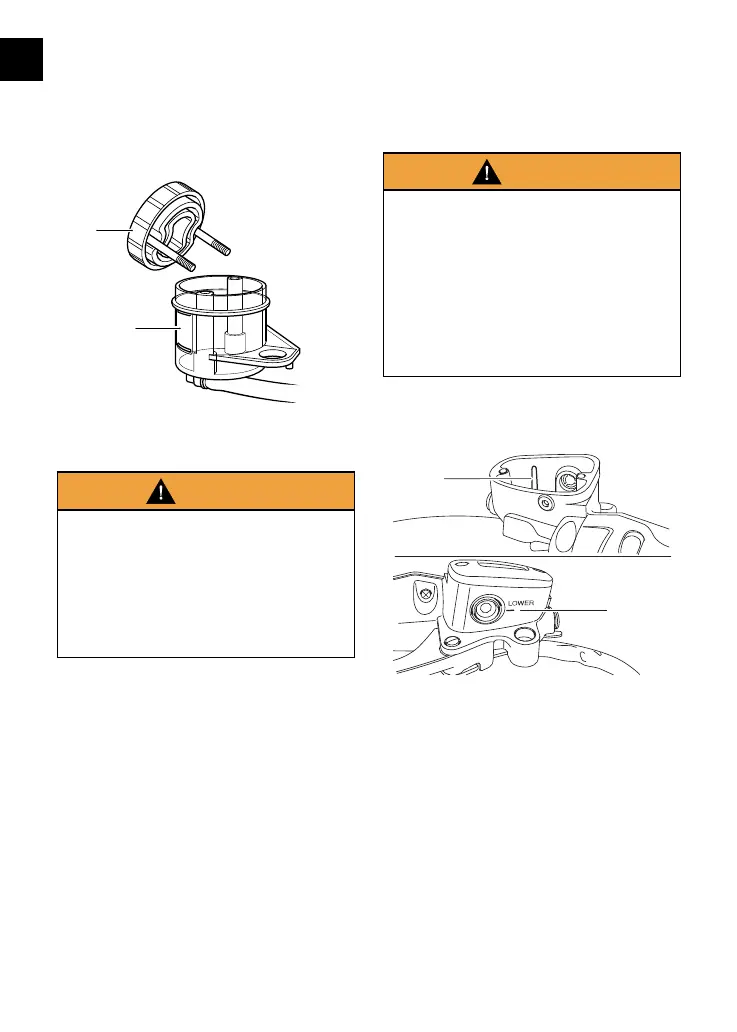

▼ Hold the assembly together
and position the reservoir cap,
diaphragm seal and reservoir cap
retaining screws onto the reservoir.
1
2
1. Reservoir cap, diaphragm seal and
reservoir cap retaining screws assembly
2. Reservoir
Warning
If the reservoir cap retaining screws
are over tightened this can result in a
brake fluid leak.
A dangerous riding condition leading
to loss of motorcycle control and an
accident could result if this warning is
ignored.
▼ Tighten the reservoir cap retaining
screws to 9 lbf in (1 Nm).
Front Brake Fluid Level Inspection
and Adjustment
Warning
If there has been an appreciable drop
in the level of the fluid in either fluid
reservoir, consult your authorized
Triumph dealer for advice before riding.
Riding with depleted brake fluid levels,
or with a brake fluid leak is dangerous
and will cause reduced brake
performance potentially leading to loss
of motorcycle control and an accident.
Bonneville T100 (all models) and
Bonneville T120 (all models)
1
2
1. Upper level line
2. Lower level line
To inspect the front brake fluid level:
▼ Check the level of fluid visible in the
window at the front of the reservoir
body.
▼ The brake fluid level must be kept
between the upper and lower level
lines (reservoir held horizontal).
To adjust the front brake fluid level:
▼ Loosen the reservoir cap retaining
screws and remove the reservoir
cap and the diaphragm seal.

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
