MAINTENANCE AND ADJUSTMENT
115
Warning
If the ABS is not functioning, the brake
system will continue to function as a
non-ABS equipped brake system.
In this situation, braking too hard will
cause the wheels to lock resulting in
loss of control and an accident.
Reduce speed and do not continue to
ride for longer than is necessary with
the indicator light illuminated. Contact
an authorized Triumph dealer as soon
as possible to have the fault checked
and rectified.
Inspect the level of brake fluid in
both reservoirs and change the brake
fluid in accordance with scheduled
maintenance requirements. Use only
DOT 4 fluid as recommended in the
Specification section. The brake fluid
must also be changed if it becomes,
or is suspected of having become
contaminated with moisture or any
other contaminants.
Note
A special tool is required to bleed the
ABS braking system. Contact your
authorized Triumph dealer when the
brake fluid needs replacing or the
hydraulic system requires maintenance.
Front Brake Fluid Level Inspection
and Adjustment
Warning
If there has been an appreciable drop
in the level of the fluid in either fluid
reservoir, consult your authorized
Triumph dealer for advice before riding.
Riding with depleted brake fluid levels,
or with a brake fluid leak is dangerous
and will cause reduced brake
performance potentially leading to loss
of motorcycle control and an accident.

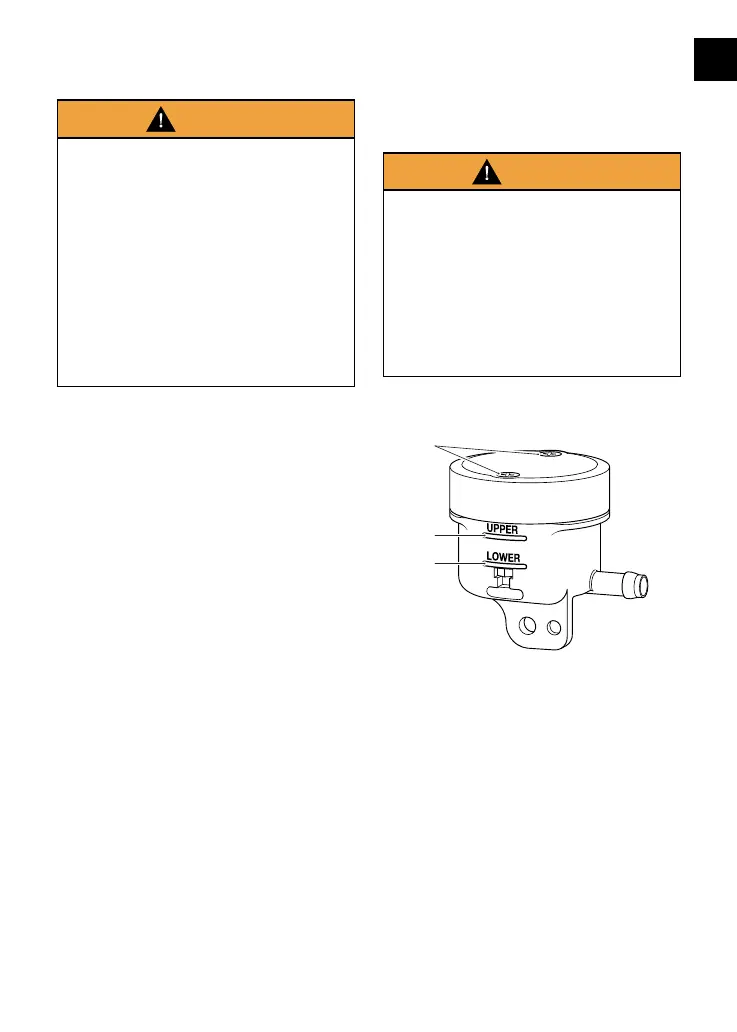

Scrambler 900 and Speed Twin 900
2
1
3
1. Reservoir cap retaining screws
2. UPPER level line
3. LOWER level line
To inspect the front brake fluid level:
▼ Check the level of brake fluid visible
in the UPPER and LOWER section of
the reservoir.
▼ The brake fluid level in the reservoir
must be kept between the UPPER
and LOWER level lines (reservoir
held horizontal).
To adjust the front brake fluid level:
▼ Loosen the reservoir cap retaining
screws and remove the reservoir
cap and the diaphragm seal.

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
