Triumph Scrambler 900 User Manual

MAINTENANCE AND ADJUSTMENT
142

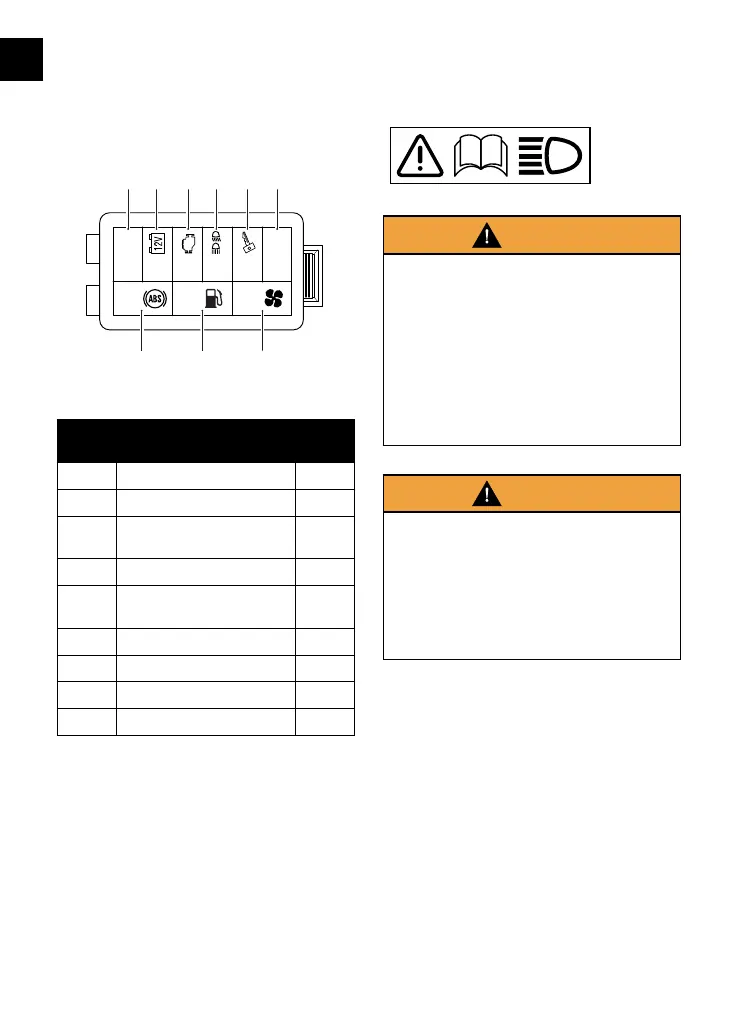

The fuse box is located underneath the
seat. To allow access to the fuse box,
the seat must be removed (see page 71).
.5A ACC
7
15A
15A
15A
.5A
7
5A AUX
25A 10A 15A
15
6
7
2 34
89
Fuse Box
Position Circuit Protected
Rating
(Amps)
1 Accessory socket 7. 5
2 Battery 15
3
Engine Management System
(EMS)
15
4 Lighting 15
5
Ignition switch, starter
circuit
7. 5
6 USB port socket 5
7 ABS 25
8 Fuel pump 10
9 Cooling fan 15
Headlights
Warning
Adjust road speed to suit the visibility
and weather conditions in which the
motorcycle is being operated.
Make sure that the head light beam is
adjusted to illuminate the road surface
sufficiently far ahead without blinding
oncoming traffic.
An incorrectly adjusted headlight may
impair visibility causing an accident.
Warning
Never attempt to adjust a headlight
beam when the motorcycle is in
motion.
Any attempt to adjust a headlight
beam when the motorcycle is in
motion may result in loss of control
and an accident.

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
