Triumph Scrambler 900 User Manual

MAINTENANCE AND ADJUSTMENT
108
Clutch Adjustment
To adjust the clutch:
▼ Turn the adjuster sleeve until the
correct amount of clutch lever free
play is achieved.
▼ Check that there is 0.08 - 0.12 in (2
- 3 mm) clutch lever free play at the
lever.
▼ If there is an incorrect amount of
free play, adjustments must be
made.

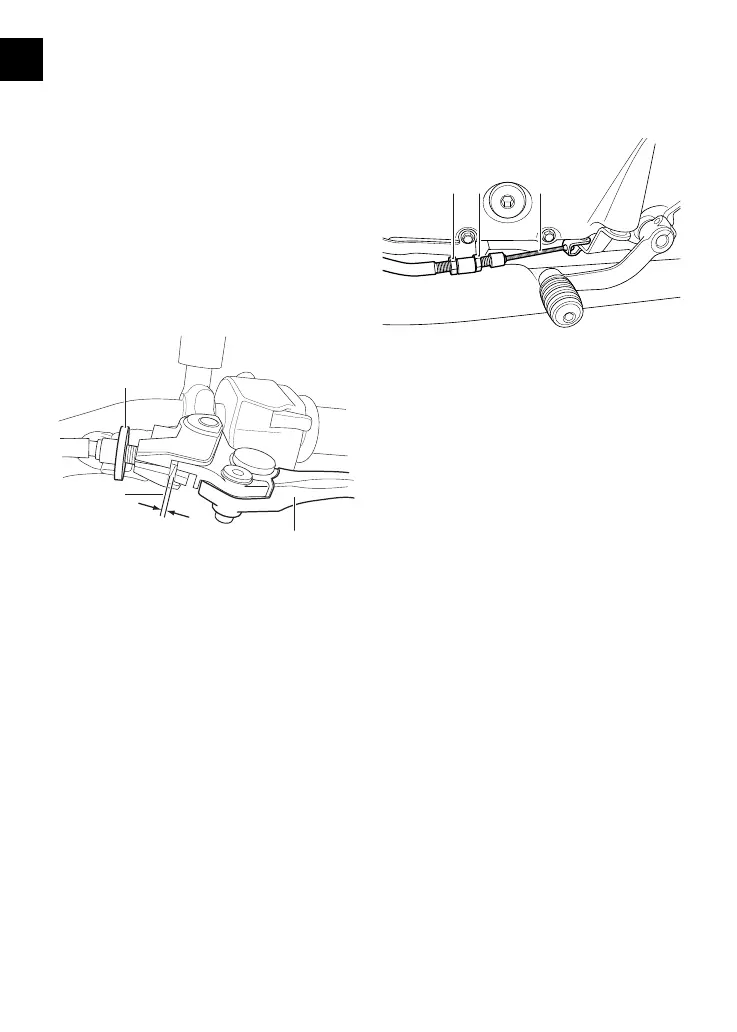

3
2 - 3 mm
1
2
1. Adjuster sleeve (lock nut fully loosened)
2. Correct clearance 0.08 - 0.12 in (2 - 3 mm)
3. Clutch lever
If correct adjustment cannot be made
using the lever adjuster, use the cable
adjuster at the lower end of the cable.
▼ Loosen the adjuster lock nut.
▼ Turn the outer cable adjuster to give
0.08 - 0.12 in (2 - 3 mm) of free play
at the clutch lever.
▼ Tighten the lock nut to 31 lbf in
(3.5 Nm).
312
1. Adjuster nut
2. Lock nut
3. Clutch cable

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
