Triumph Scrambler 900 User Manual

MAINTENANCE AND ADJUSTMENT
131
Bank Angle Indicators
Warning
Use of a motorcycle with bank angle
indicators worn beyond the maximum
limit will allow the motorcycle to be
banked to an unsafe angle.
Banking to an unsafe angle may cause
instability, loss of motorcycle control
and an accident.

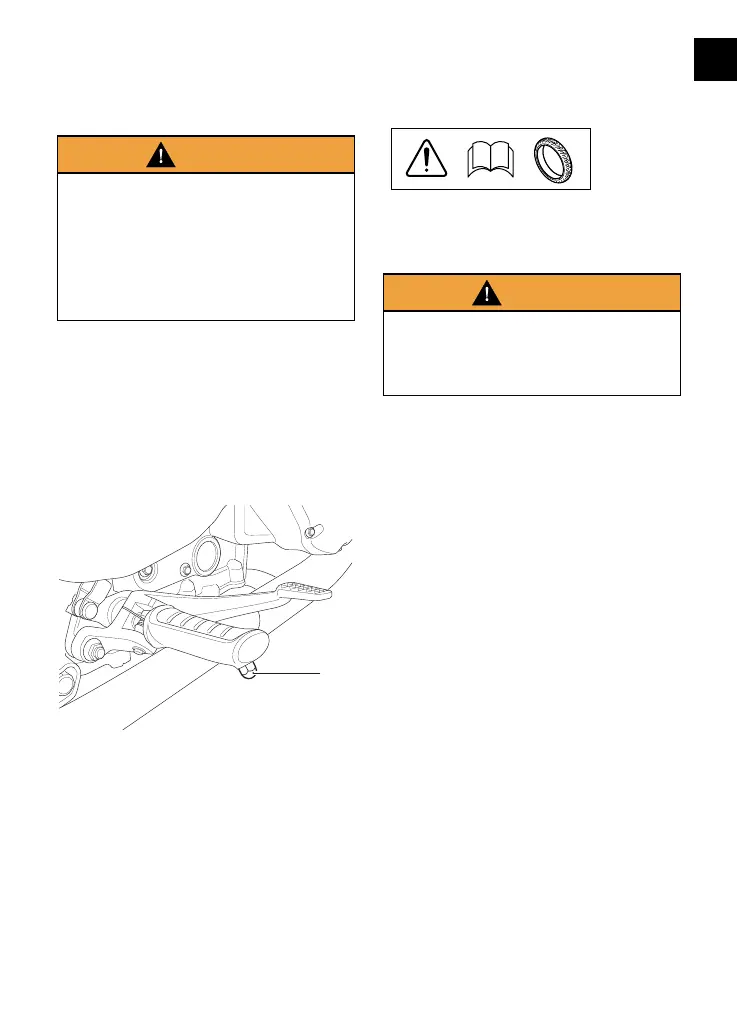

Bank angle indicators are located on the
rider’s footrests.
Regularly check the bank angle
indicators for wear.
Bank angle indicators must be replaced
when they have reached the maximum
wear limit of 0.2 in (5 mm) in length.
1
1. Bank angle indicator
Tires
This motorcycle is equipped with spoked
wheels which require a tire suitable for
use with an inner tube.
Warning
Failure to use an inner tube in a
spoked wheel will cause deflation of
the tire resulting in loss of motorcycle
control and an accident.

Triumph Scrambler 900 Specifications

General

Displacement	900 cc
Max Torque	80 Nm @ 3, 250 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel, with twin cradles
Seat Height	790 mm
Bore x Stroke	84.6 mm x 80 mm
Clutch	Wet, multi-plate assist clutch
Swingarm	Twin-sided, tubular steel
Front Tyre	100/90-19
Rear Tyre	150/70 R17
Rake	25.8°
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	65 PS / 64 bhp (47.8 kW) @ 7, 250 rpm
Exhaust	Stainless steel 2-into-2 exhaust system with twin silencers
Front Suspension	41 mm telescopic forks, 120 mm travel
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Single 310 mm disc, Brembo 4-piston caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper, ABS
Front Wheel	19 x 2.5 in
Rear Wheel	17 x 4.25 in
Fuel Tank Capacity	12 L
Instrument Display	LCD multi-functional instrument pack with analogue speedometer
Length	2, 125 mm
