Maintenance and Adjustment
112
Compression Damping Adjustment
The compression damping adjuster is
located at the top of the right hand fork
only.
To change the compression damping
force:
Rotate the slotted adjuster clockwise to
increase, or anti-clockwise to decrease.
Always count the number of turns back
from the fully clockwise (maximum)
position.

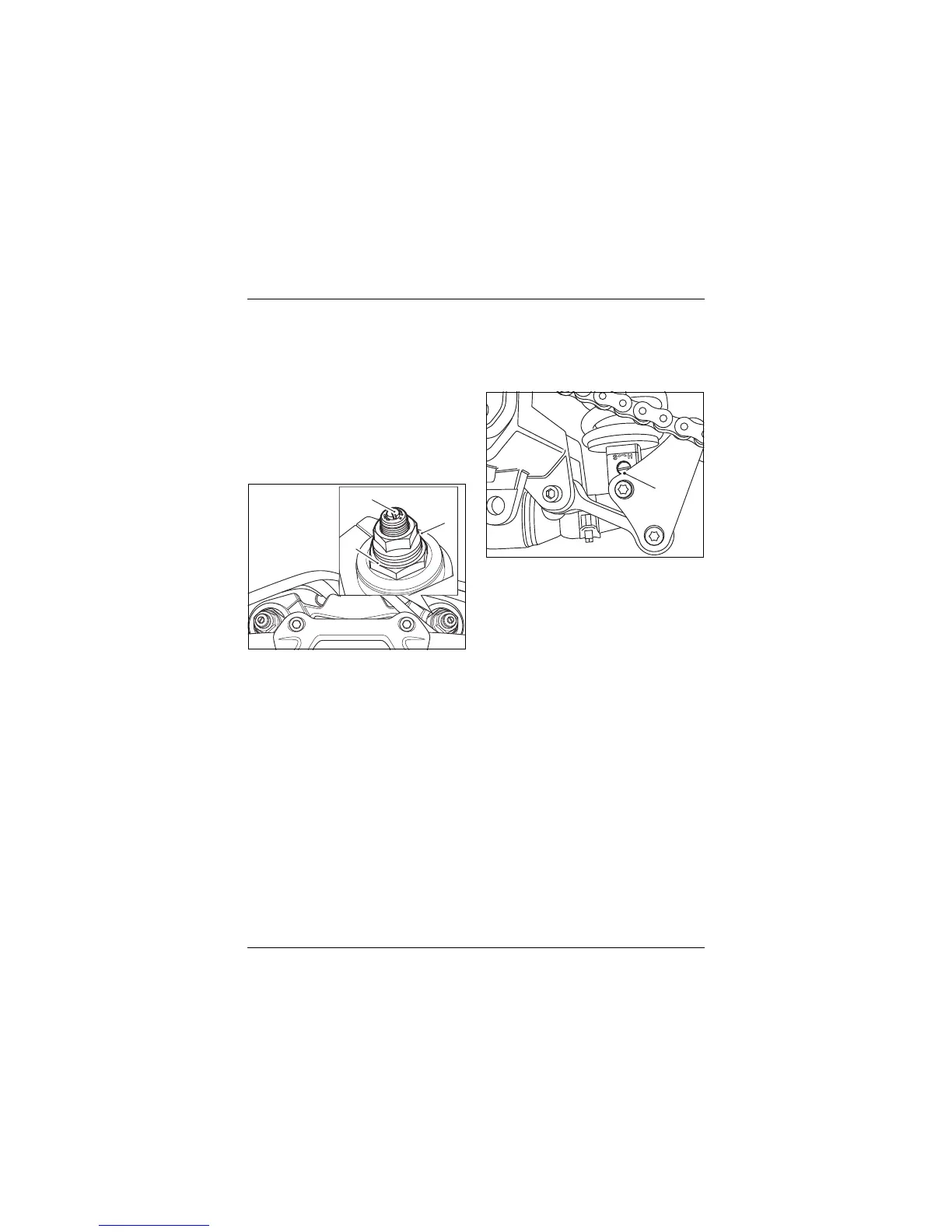

1. Compression damping adjuster
2. Spring pre-load adjuster
3. Fork top cap
Note:
• The motorcycle is delivered from the
factory with the compression damping
set at 1.5 turns anti-clockwise from
the maximum position.
Rear Suspension Adjustment
The rear suspension unit is adjustable
for both rebound and spring pre-load.
Rebound Damping Adjustment
1. Rebound damping adjuster
The rebound damping adjuster is located
at the bottom of the rear suspension
unit on the left hand side of the
motorcycle.
To adjust the rebound damping setting:
Rotate the adjuster clockwise to
increase rebound damping and anti-
clockwise to decrease.
Always count the number of turns back
from the fully clockwise (maximum)
position.
Note:
• The motorcycle is delivered from the
factory with the rebound adjuster
set at two turns anti-clockwise from
the maximum position.
