Maintenance and Adjustment
122
For extended periods of storage (beyond
two weeks) the battery should be
removed from the motorcycle and kept
topped up using a Triumph approved
maintenance charger.
Similarly, should the battery charge fall
to a level where it will not start the
motorcycle, remove the battery from the
motorcycle before charging.
Battery Installation
To install the battery:
Place the battery in the battery case.
Reconnect the battery leads, positive
(red) lead first.
Tighten the battery terminals to 4.5 Nm.
Apply a light coat of grease to the
terminals to prevent corrosion.
Cover the positive terminal with the
protective cap.
Refit the storage compartment tray and
secure using new fixings. Take care not
to damage any cables.
Tighten the fixings to 7Nm.
Refit the USB socket to the bracket.
Refit the battery strap.
Refit the seat (see page 63).
Fuse Box

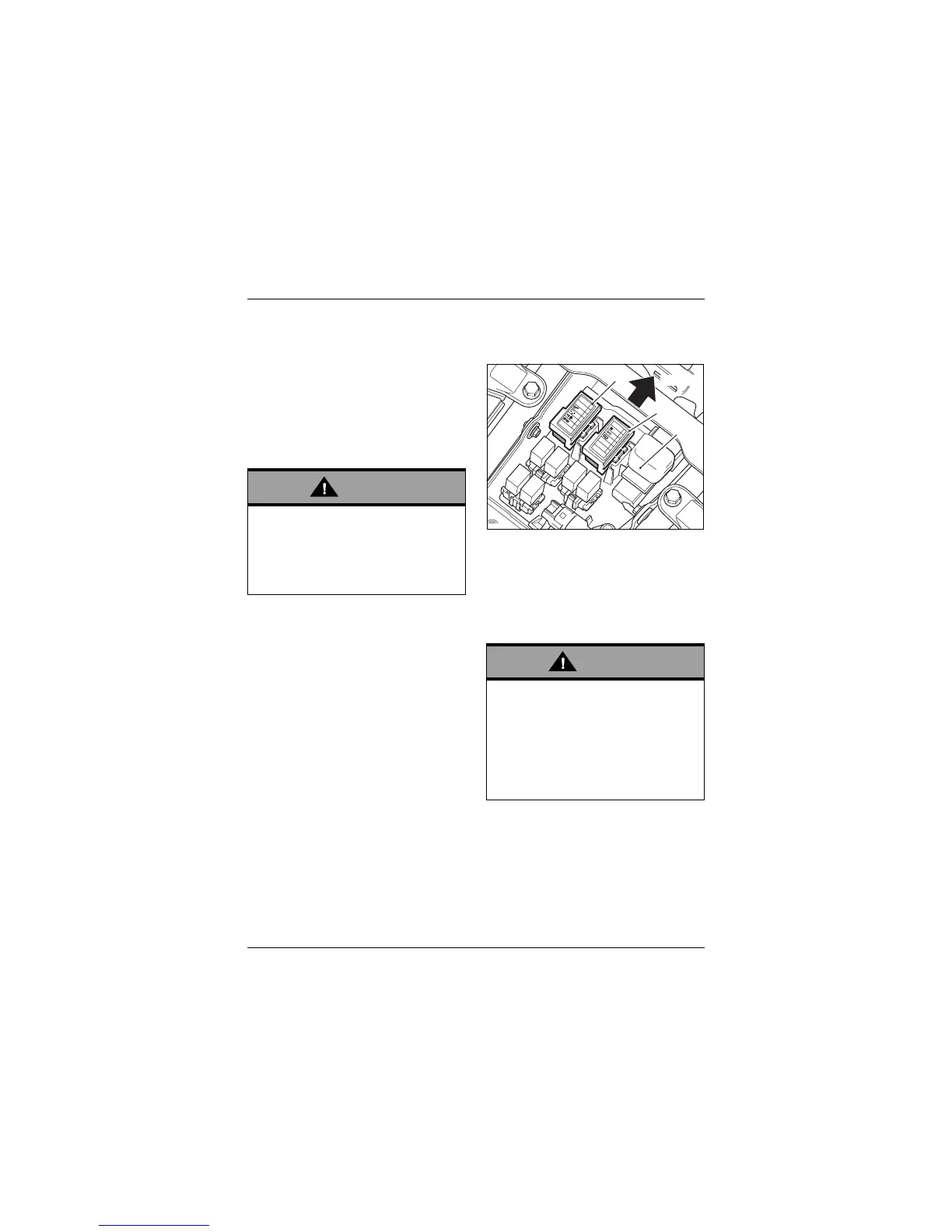

Main Fuse Boxes
1. Left hand fuse box
2. Right hand fuse box
3. Starter solenoid fuse location
The fuse boxes are located beneath the
seat.
To gain access to the fuse boxes, the
seat must be removed.
Make sure that the battery terminals
do not touch the motorcycle frame as
this may cause a short circuit or
spark, which would ignite battery
gases causing a risk of personal
injury.
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover) and never use
a fuse of higher rating.
Use of an incorrect fuse could lead to
an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
