Maintenance and Adjustment
127

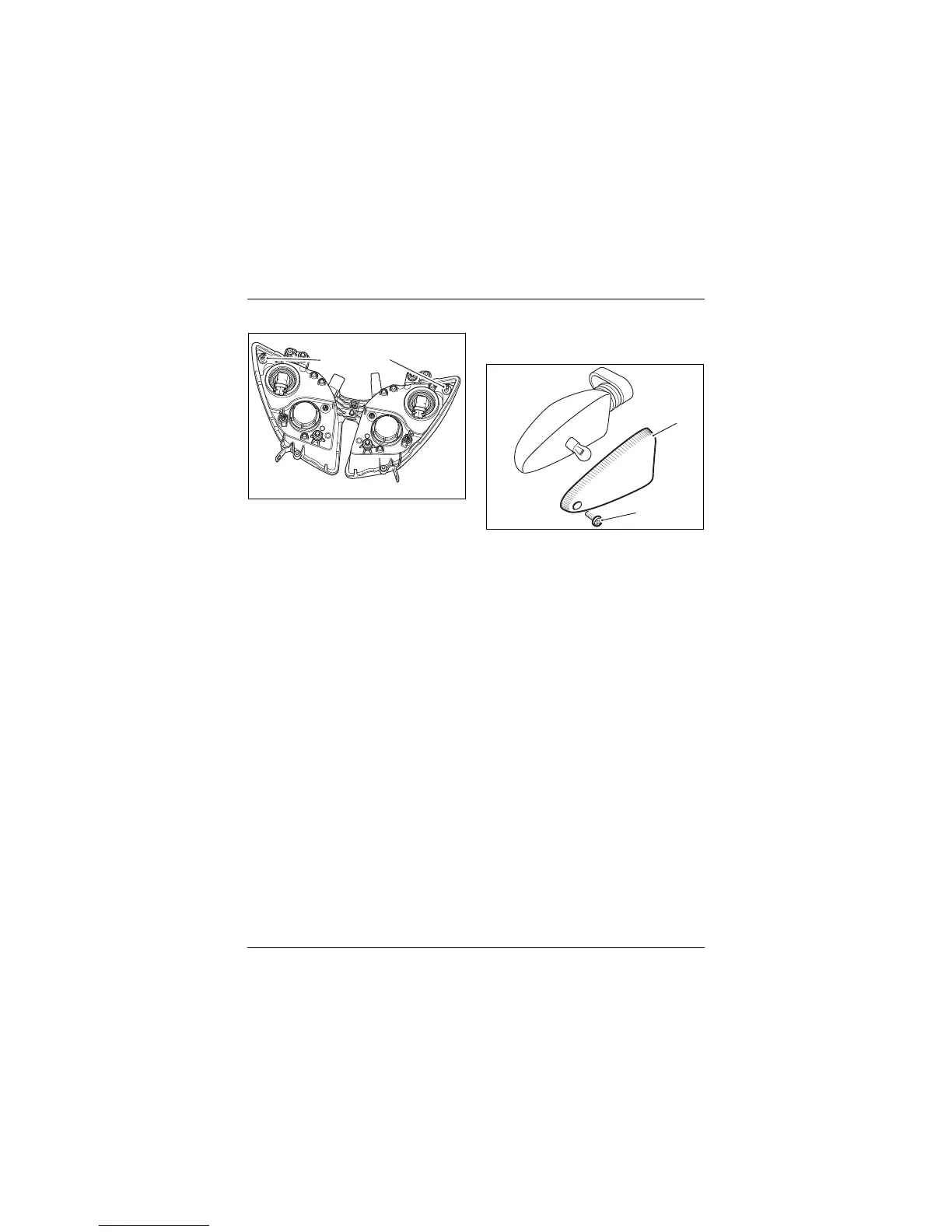

Position Light Bulb Replacement
1. Position light bulb (left hand)
2. Position light bulb (right hand)
The position lights are fitted to the left
and right of each headlight.
To replace a position light bulb:
Remove the seat (see page 62).
Disconnect the battery, negative (black)
lead first.
Remove the cockpit infill panel for the
bulb to be replaced, detach the rubber
retainer from the headlight and pull out
the bulb.
Installation is the reverse of the removal
procedure.
Rear Light
Rear Light Replacement
The rear light unit is a sealed,
maintenance-free LED unit.
Direction Indicator Lights
Bulb Replacement
1. Indicator lens
2. Securing screw
The lens on each indicator light is held in
place by a securing screw located in the
body of the light.
To replace a direction indicator bulb:
Remove the seat (see page 62).
Disconnect the battery, negative (black)
lead first.
Release the screw and remove the lens to
gain access to the bulb for replacement.
