Maintenance and Adjustment
125

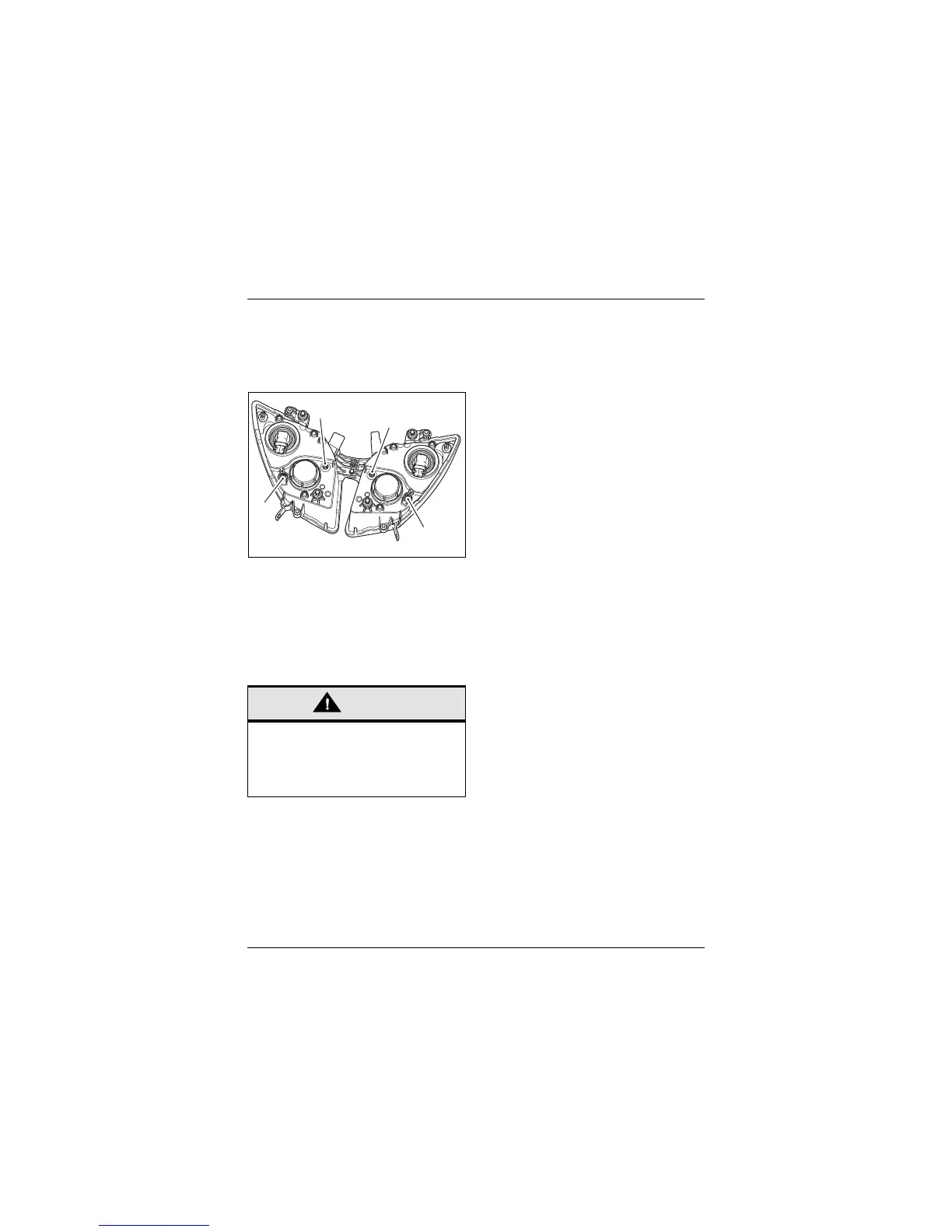

Headlight Adjustment
Each headlight can be adjusted by
means of vertical and horizontal
adjustment screws located on the rear
of each headlight.
1. Horizontal adjustment screw
(left hand)
2. Vertical adjustment screw
(left hand)
3. Horizontal adjustment screw
(right hand)
4. Vertical adjustment screw
(right hand)
To adjust the headlights:
Switch on the headlights to be adjusted.
Turn the vertical adjustment screws on
each headlight clockwise to lower the
beam or anti-clockwise to raise the
beam.
On the right hand headlight:
Turn the horizontal adjustment screw
clockwise to move the beam to the right
or anti-clockwise to move the beam to
the left.
On the left hand headlight:
Turn the horizontal adjustment screw
clockwise to move the beam to the right
or anti-clockwise to move the beam to
the left.
Switch the headlights off when the beam
settings are satisfactory.
Do not adjust the pivot screws as this
may cause the headlight reflector to
become detached from the pivot
screw, leading to irreparable damage
to the headlight.
