– Remove table module ⇒ page 80 .
– Remove drawer ⇒ page 85 .
– Move table to uppermost position.
– Remove front trim ⇒ page 86 .
– Remove rear trim ⇒ page 87 .
– Unscrew bolts -2- and -3- in front and rear.
– Unhook trim -1- upwards out of retainers in base frame.
– Remove magazine rack -4-, in upper area, from trim.
– Remove magazine rack -4-, in lower area, from trim.
Installing
Install in the reverse order of removal, observing the following:
– Following installation, ensure that trim is seated securely in
respective mountings.
Specified torques
♦ ⇒ “6.1 Assembly overview - table modules, table module in
seat rails”, page 76
6.11 Table module in seat rails, removing and
installing rollers and support

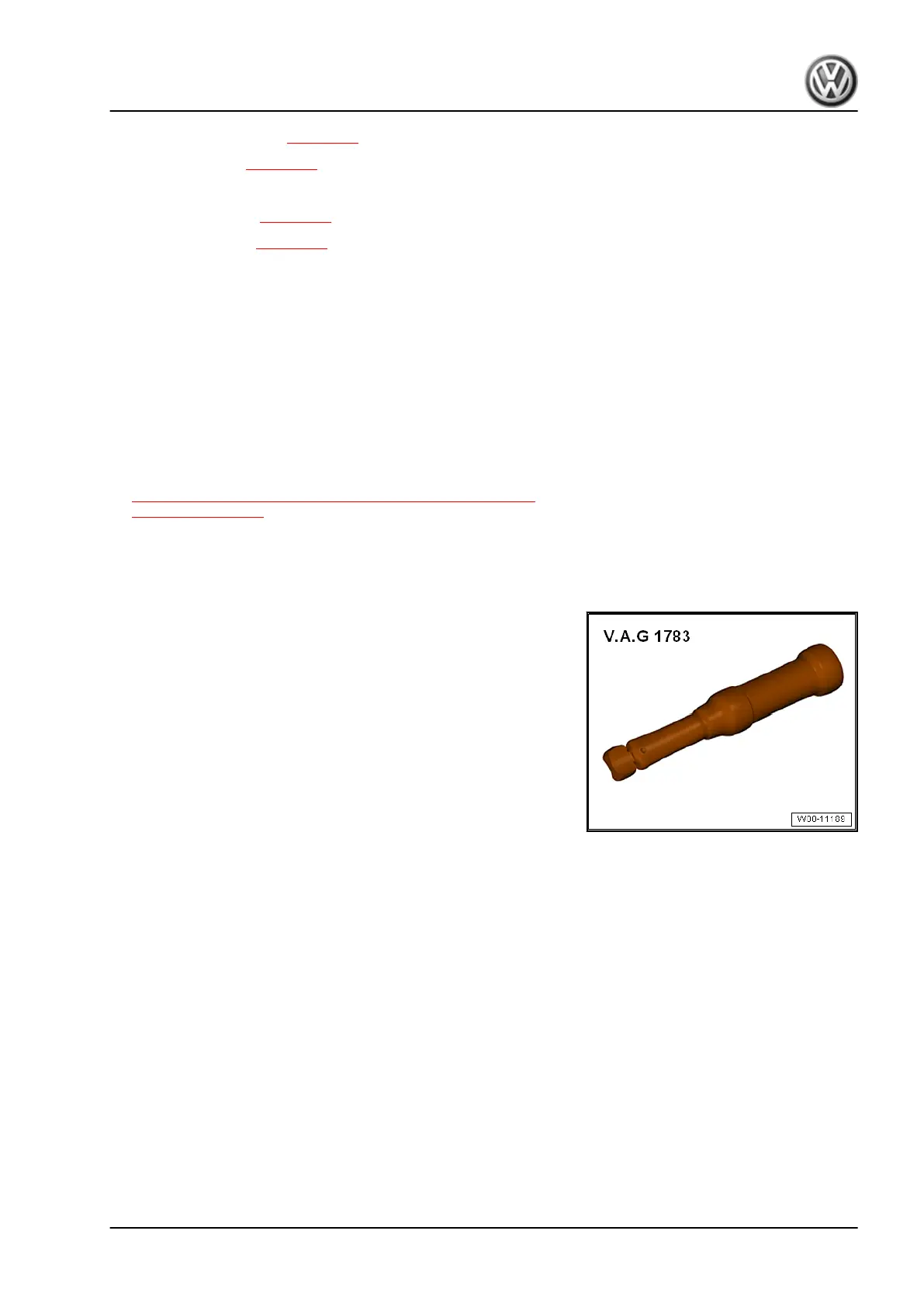

Special tools and workshop equipment required
♦ Torque wrench - V.A.G 1783-
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
6. Table modules, Multivan/Business 89
