Operation
3.33 Mounting/removing the canopy shatter protection (option)
2 persons are required for mounting/removing.
☞ Follow the safety instructions for assembly.
☞ Put the boom in the centre position and lower it to the ground.
☞ Lower the stabilizer blade.
☞ Stop the engine.
☞ Operate the joystick repeatedly to release the pressure in the hydraulic system.
☞ Remove the ignition key and carry it with you.
☞ Raise the control lever base.
☞ Install shatter protection A from above at points B with the fastening material supplied
with it.
☞ Remove in the reverse order.
The shatter protection can be combined with a protective Front Guard structure.

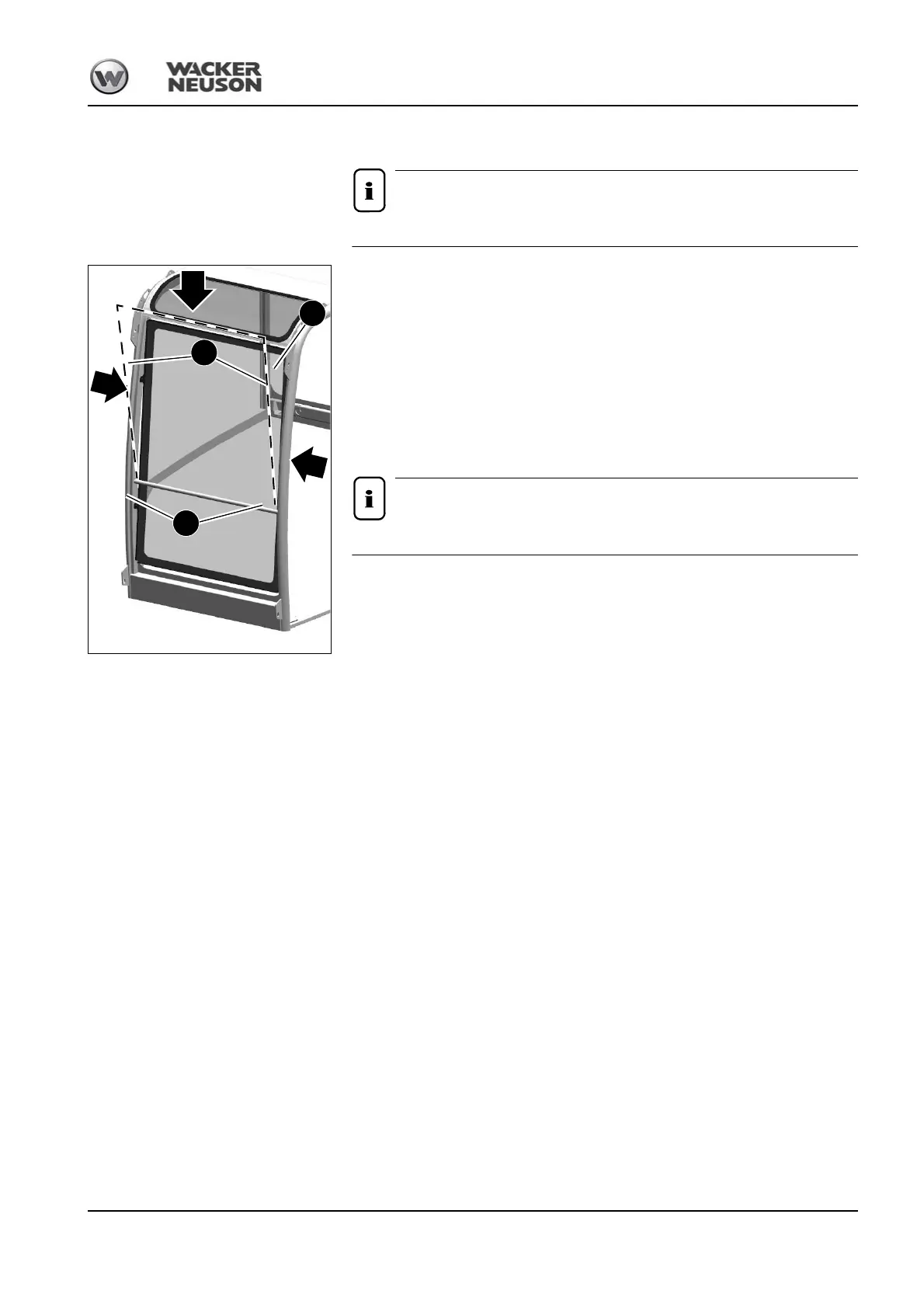

Fig. 130: Installing the shatter protection
A
B
B
